TOP END PISTON KIT 87-88 SUZUKI RM 250 67mm STANDARD VINTCO KTS22-00
  • TOP END PISTON KIT 87-88 SUZUKI RM 250 67mm STANDARD VINTCO KTS22-00
  • TOP END PISTON KIT 87-88 SUZUKI RM 250 67mm STANDARD VINTCO KTS22-00
  • TOP END PISTON KIT 87-88 SUZUKI RM 250 67mm STANDARD VINTCO KTS22-00
  • TOP END PISTON KIT 87-88 SUZUKI RM 250 67mm STANDARD VINTCO KTS22-00
TOP END PISTON KIT 87-88 SUZUKI RM 250 67mm STANDARD VINTCO KTS22-00

TOP END PISTON KIT 87-88 SUZUKI RM 250 67mm STANDARD VINTCO KTS22-00

£227.61 GBP
Taxes included. Shipping calculated at checkout.

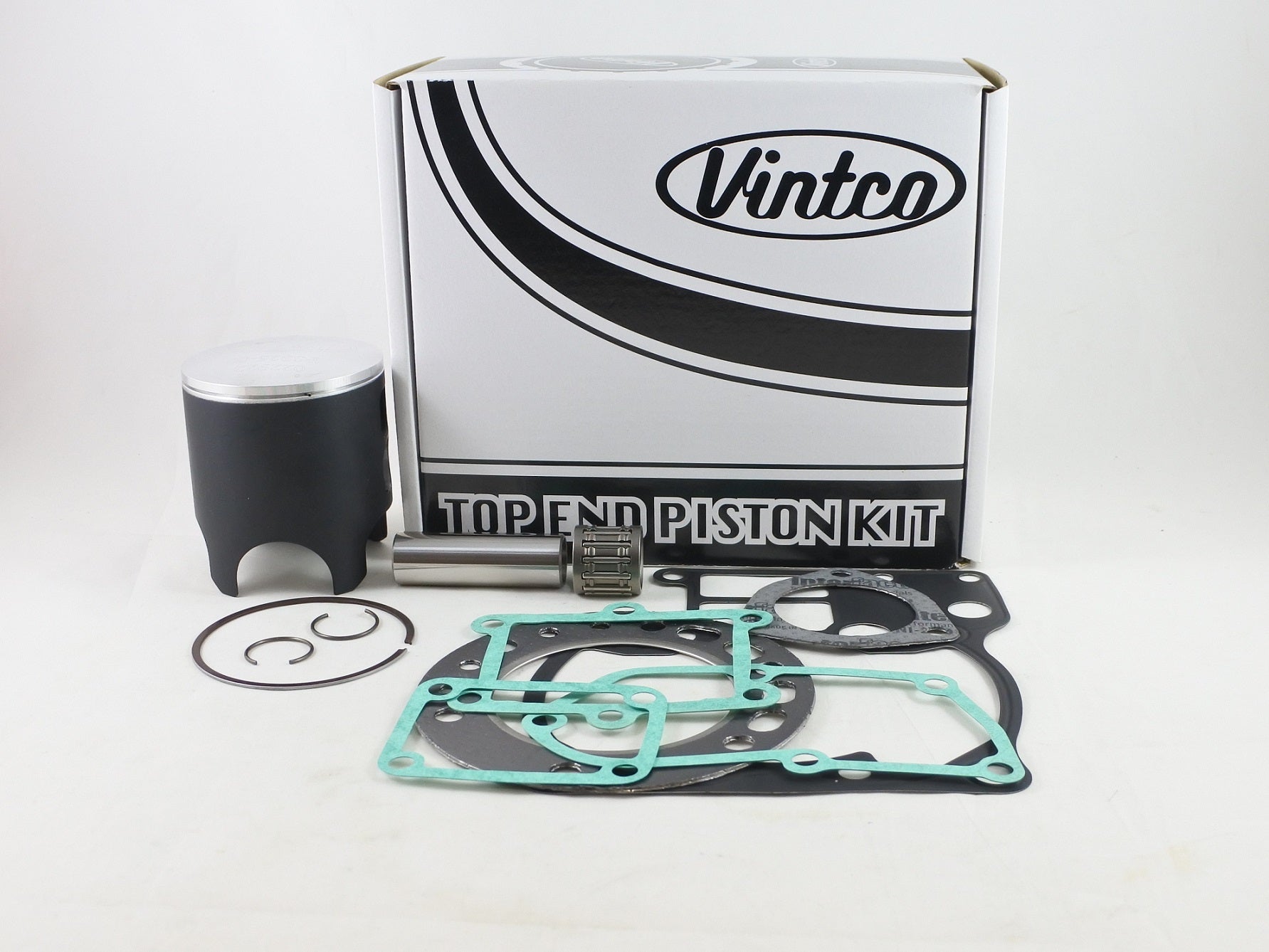

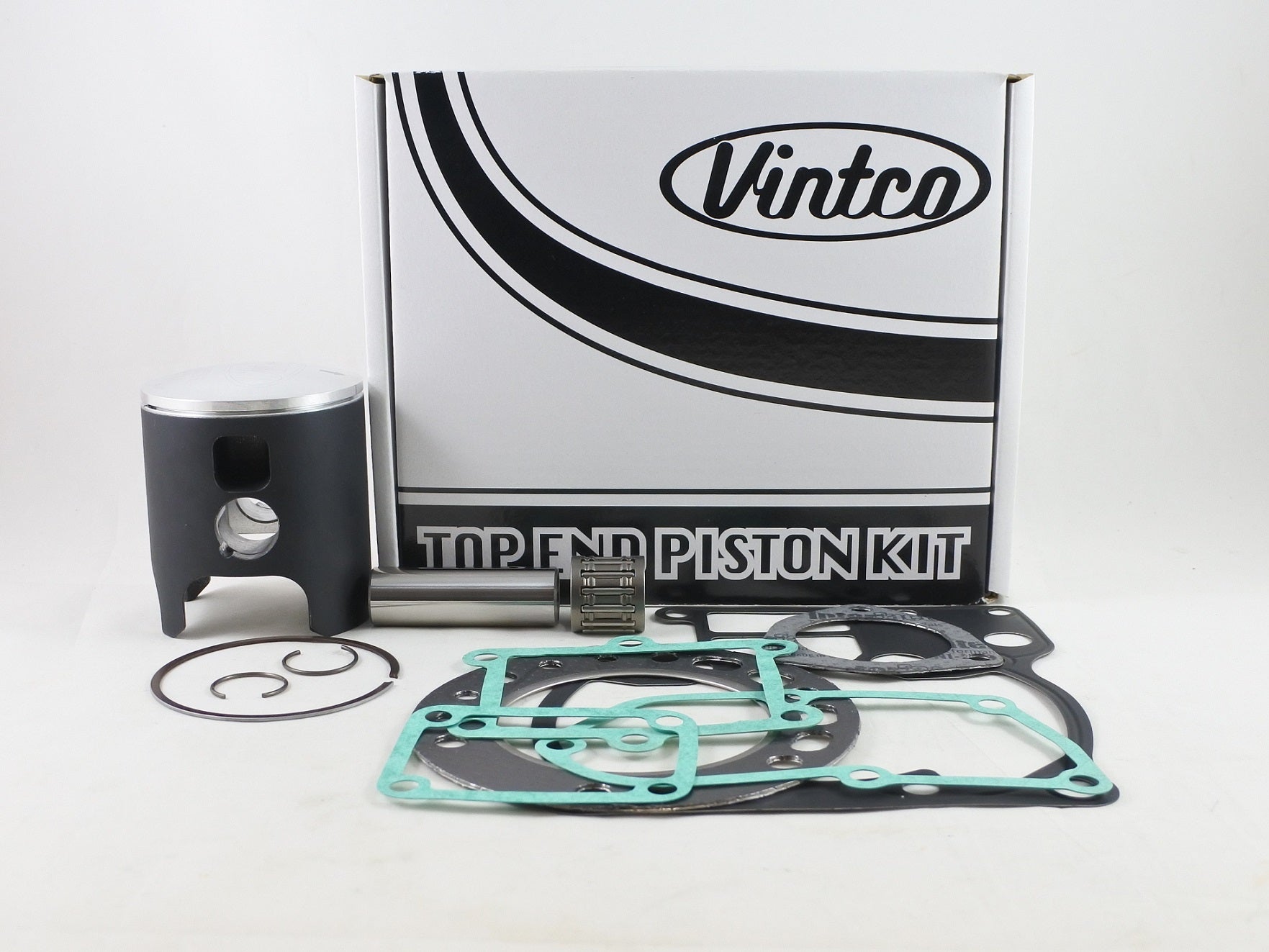

VintCo KTS22-00 is a standard-size 67 mm top end piston kit for 1987-1988 Suzuki RM250 models, supplied as a complete set for top-end service with the piston, required gaskets and wrist pin bearing. The kit price includes a 10% reduction compared with purchasing the individual items separately.

Features

  • Complete top end piston kit for 1987-1988 Suzuki RM250 models
  • Includes piston
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes two cylinder cover gaskets
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Supplied as a kit at a 10% lower price than the individual items

Specifications

  • VintCo Part Number: KTS22-00
  • Piston size: 67 mm standard
  • Piston measurement: 66.94 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 11141-01C01-H17
  • Cylinder Base Gasket: 11241-00B20-H17
  • Intake Gasket: 13156-00B20-H178
  • Cylinder Cover Gasket: 11233-00B20-H17
  • Cylinder Cover Gasket: 11238-00B20-H17
  • Exhaust Pipe Gasket: 14181-16300-H17

Vehicle Fitments

  • 1987 Suzuki RM250
  • 1988 Suzuki RM250
