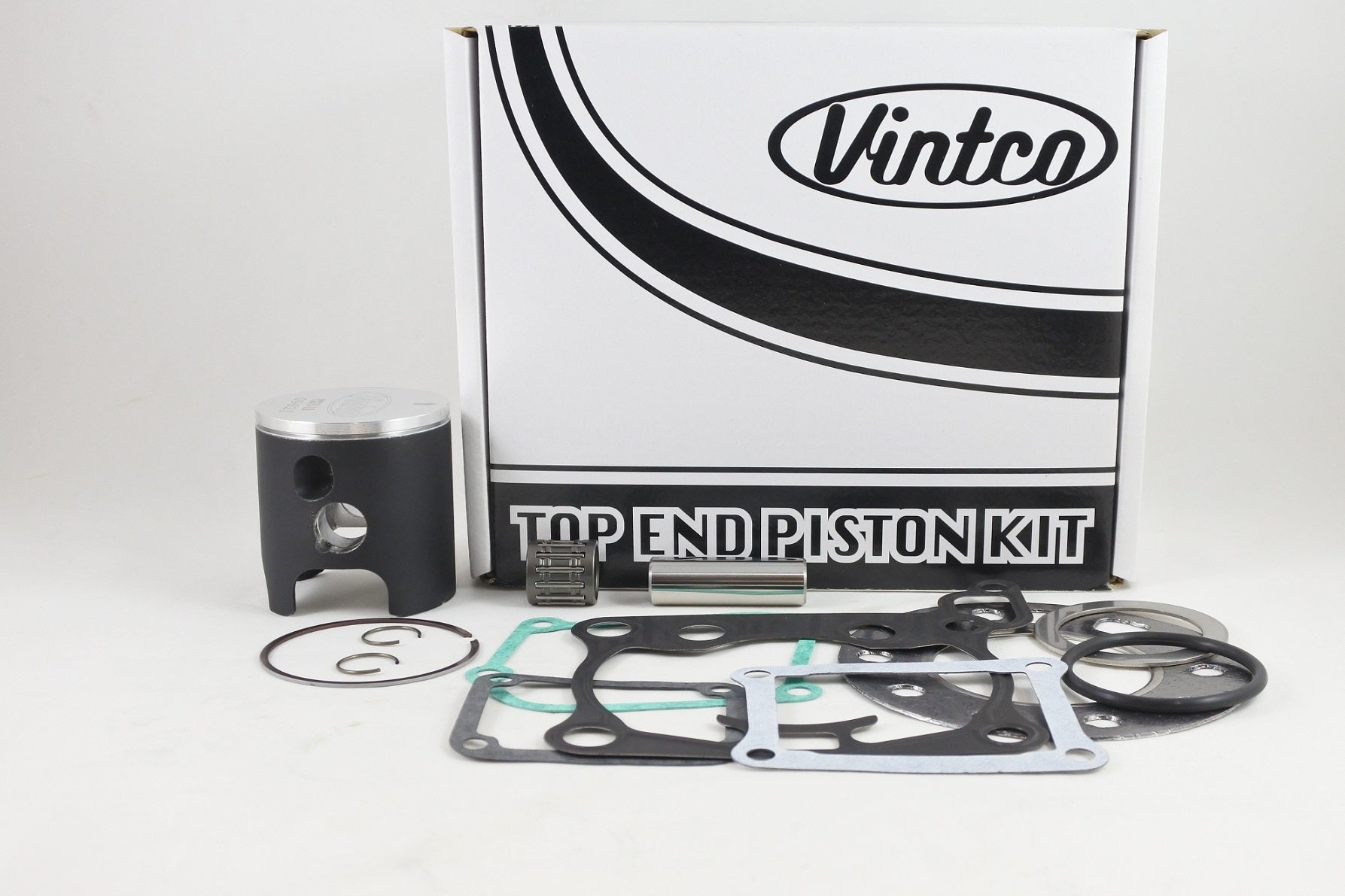

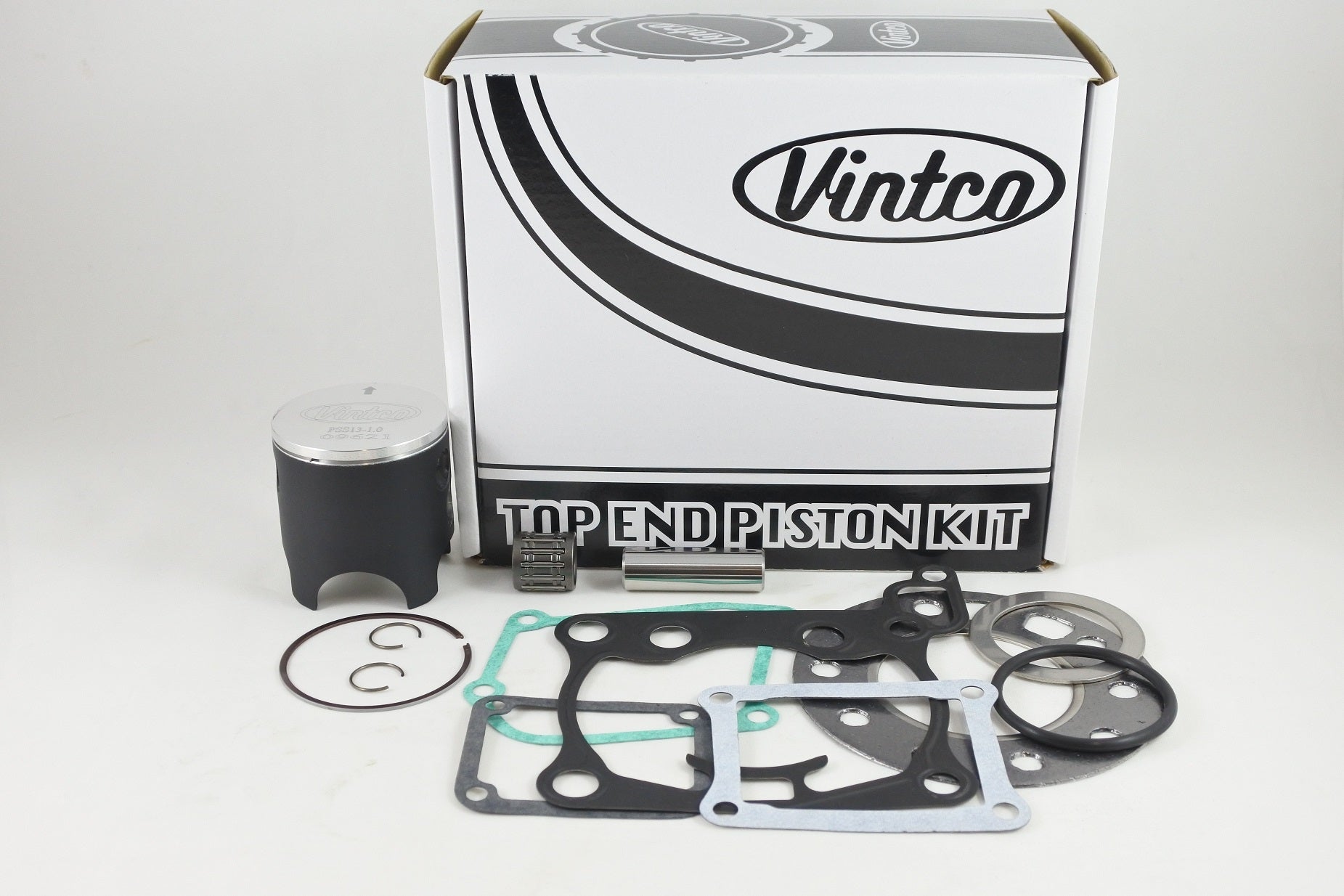

Top End Piston Kit 87-87 Suzuki RM 125 55.00mm 1.0mm Over Vintco

Top end piston kit for the 1987 Suzuki RM125, supplied as a complete package for top end service in a 55.00 mm, 1.0 mm oversize configuration. The kit includes a forged piston manufactured in Germany with MOS2 coating for running-in, along with the required gaskets and wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the components individually.

Features

• Complete top end kit
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes reed valve gasket
• Includes cylinder cover gaskets
• Includes exhaust pipe gaskets
• Includes wrist pin bearing
• Kit price includes 10% discount over individual items

Specifications

• VintCo Part Number: KTS19-1.0
• Nominal size: 55.00 mm
• Piston oversize: +1.0 mm
• Piston measurement: 54.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11141-01B32
• Cylinder base gasket: 11241-01B20-H17
• Reed valve gasket: 13156-03D10
• Cylinder cover gasket: 11233-01B30-H17
• Cylinder cover gasket: 11238-01B30-H17
• Exhaust pipe gasket: 14171-01B21
• Exhaust pipe gasket: 14172-01B21
• Wrist pin bearing: 09263-14024

Vehicle Fitments

• 1987 Suzuki RM125
