TOP END PISTON KIT 87-87 SUZUKI LT R 250 67mm STANDARD VINTCO KTS27-00

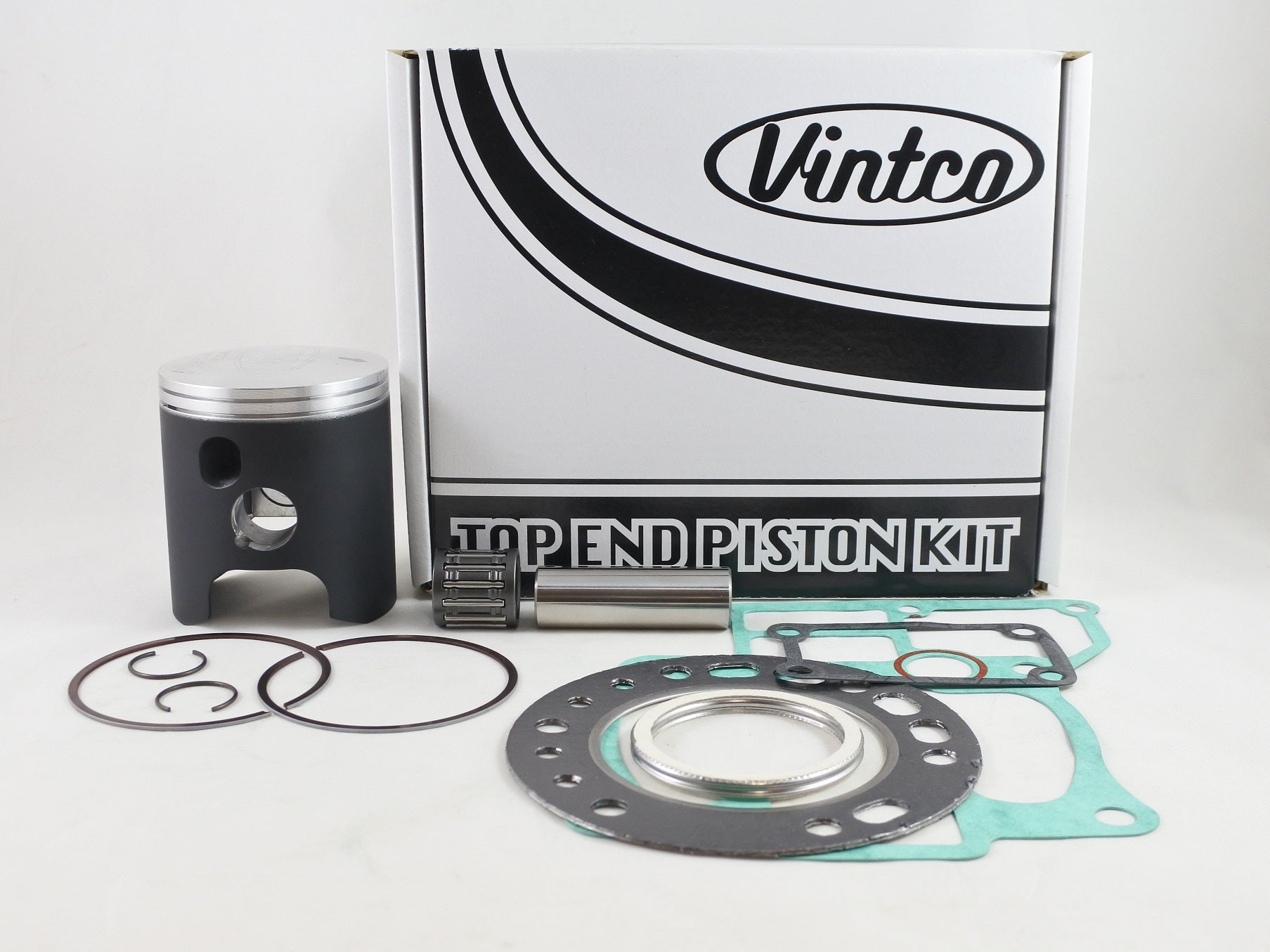

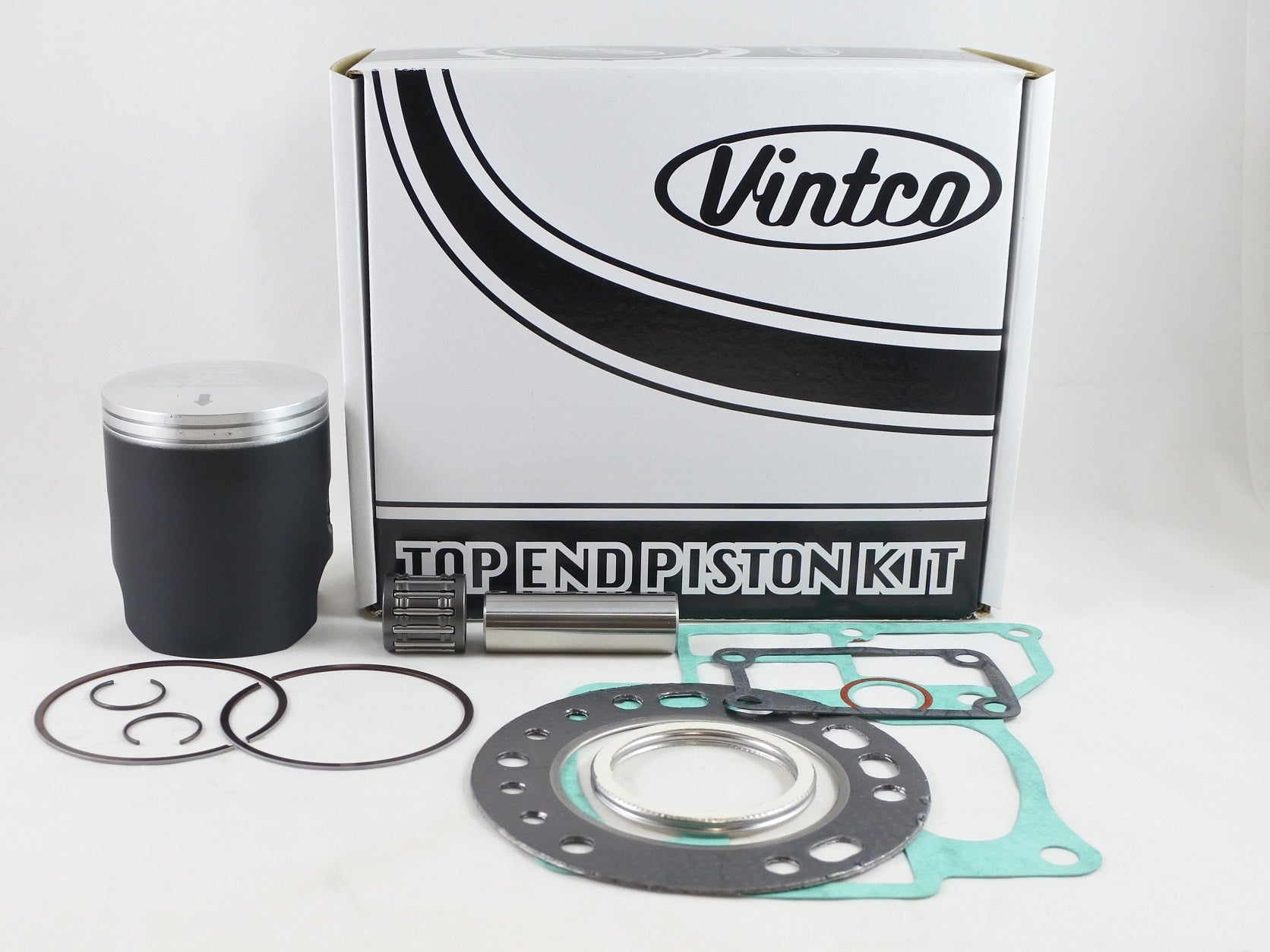

This top end piston kit is for the 1987 Suzuki LT250R and combines the required piston and gasket components for a top end rebuild in one package. The kit includes a forged piston made in Germany with an MOS2 coating for break-in, together with the associated cylinder head, cylinder base, exhaust pipe and cylinder cover gaskets, plus a wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the individual items separately.

Features

• Complete top end piston kit for top end rebuild work
• Forged piston
• Made in Germany
• MOS2 coated for break-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes exhaust pipe gasket
• Includes cylinder cover gasket
• Includes wrist pin bearing
• Kit pricing includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTS27-00
• Nominal piston size: 67 mm
• Standard piston diameter: 66.94 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-01C01-H17
• Cylinder Base Gasket: 11241-01C10
• Exhaust Pipe Gasket: 14181-13A01
• Cylinder Cover Gasket: 11233-01C00

Vehicle Fitments

• 1987 Suzuki LT250R
