Top End Piston Kit 86-91 Honda CR R 80 47mm Standard Vintco KTH36-00

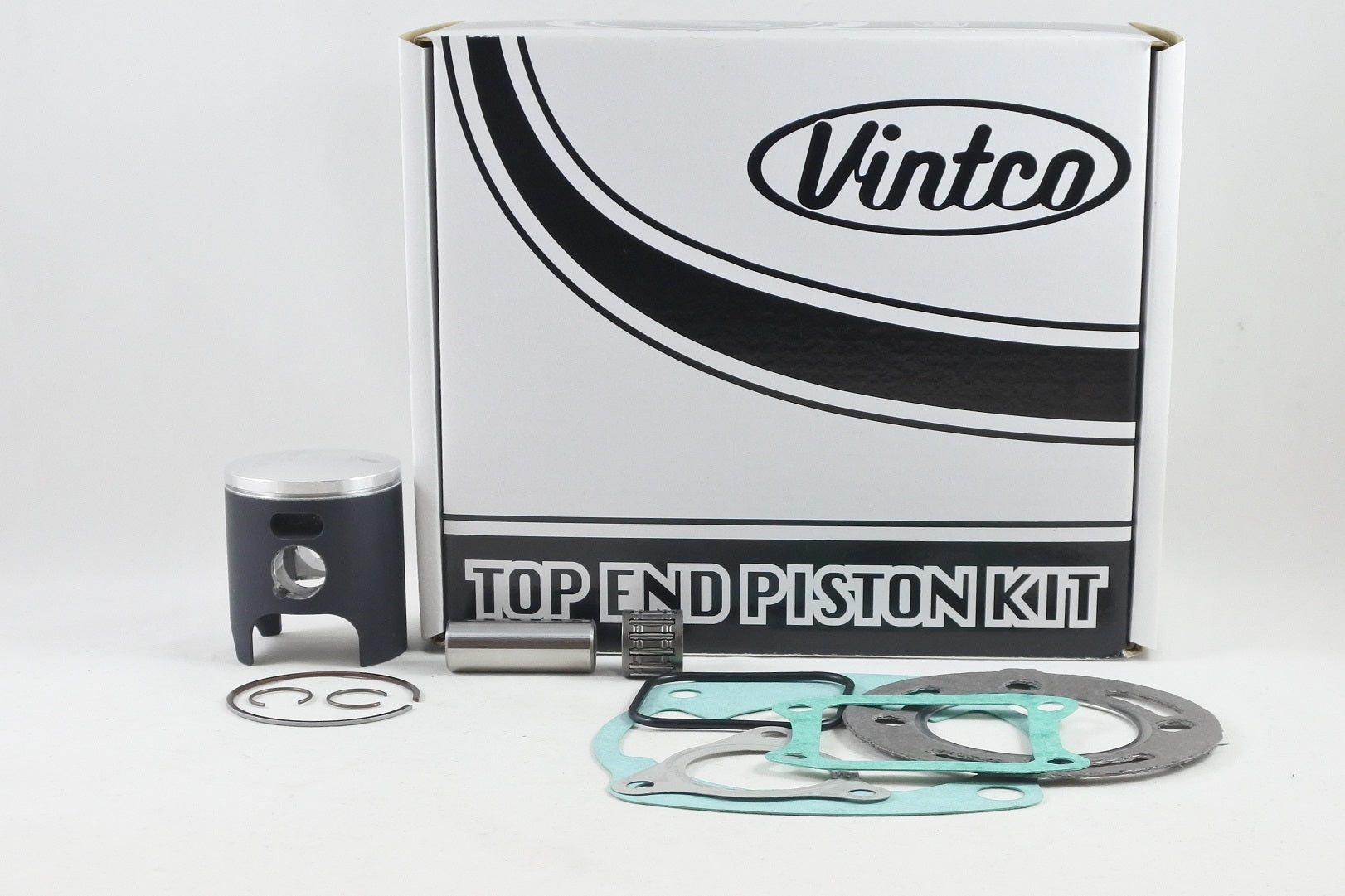

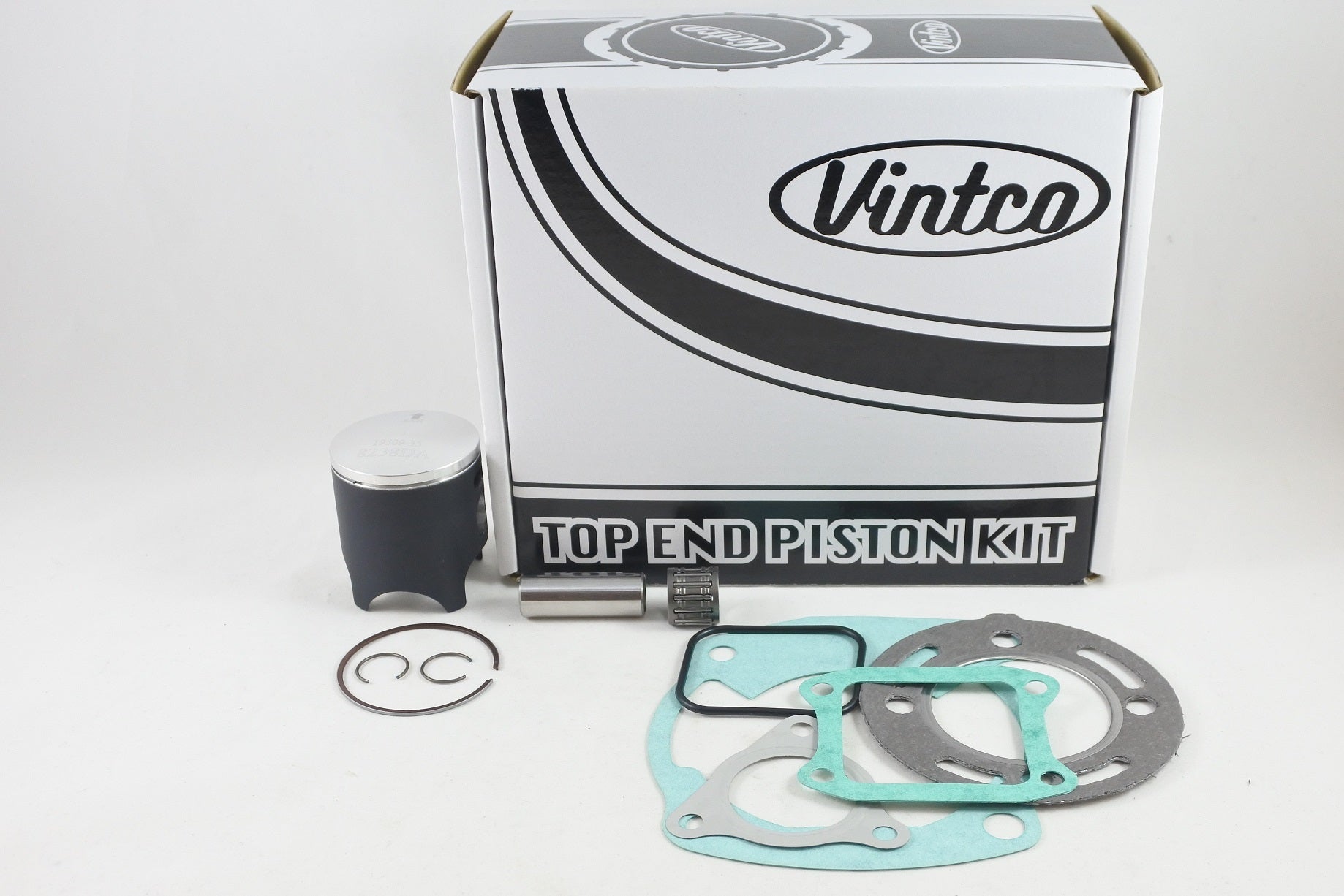

VintCo KTH36-00 is a standard-size top-end piston kit for Honda CR80R models from 1986 to 1991. This complete rebuild kit includes a forged piston with rings, pin and clips, a wrist pin bearing, and a full top-end gasket kit covering the head, base, reed valve/intake and exhaust pipe. The components are produced using modern materials and manufacturing methods for OEM-level or better fitment and performance, and the kit is priced 10% lower than purchasing the items individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes reed valve gaskets
• Includes exhaust pipe gasket
• Suitable for standard-bore rebuilds
• Piston coating assists running-in
• Manufactured using modern materials and production techniques
• Intended for OEM-level or better fitment and performance
• Kit price is 10% lower than buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH36-00
• Kit type: Top End Piston Kit
• Piston size: 47 mm standard
• Piston measurement: 46.95 mm
• Clearance: 0.05 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-GS2-781
• Base gasket: 12191-GS2-780
• Reed valve gasket: 14132-GBF-830
• Reed valve gasket: 91305-GC4-601
• Exhaust pipe gasket: 18291-GS2-621

Vehicle Fitments

• 1986 Honda CR80R
• 1987 Honda CR80R
• 1988 Honda CR80R
• 1989 Honda CR80R
• 1990 Honda CR80R
• 1991 Honda CR80R
