TOP END PISTON KIT 86-88 HONDA CR 250 67.5mm 1.1mm OVER VINTCO KTH26-1.1

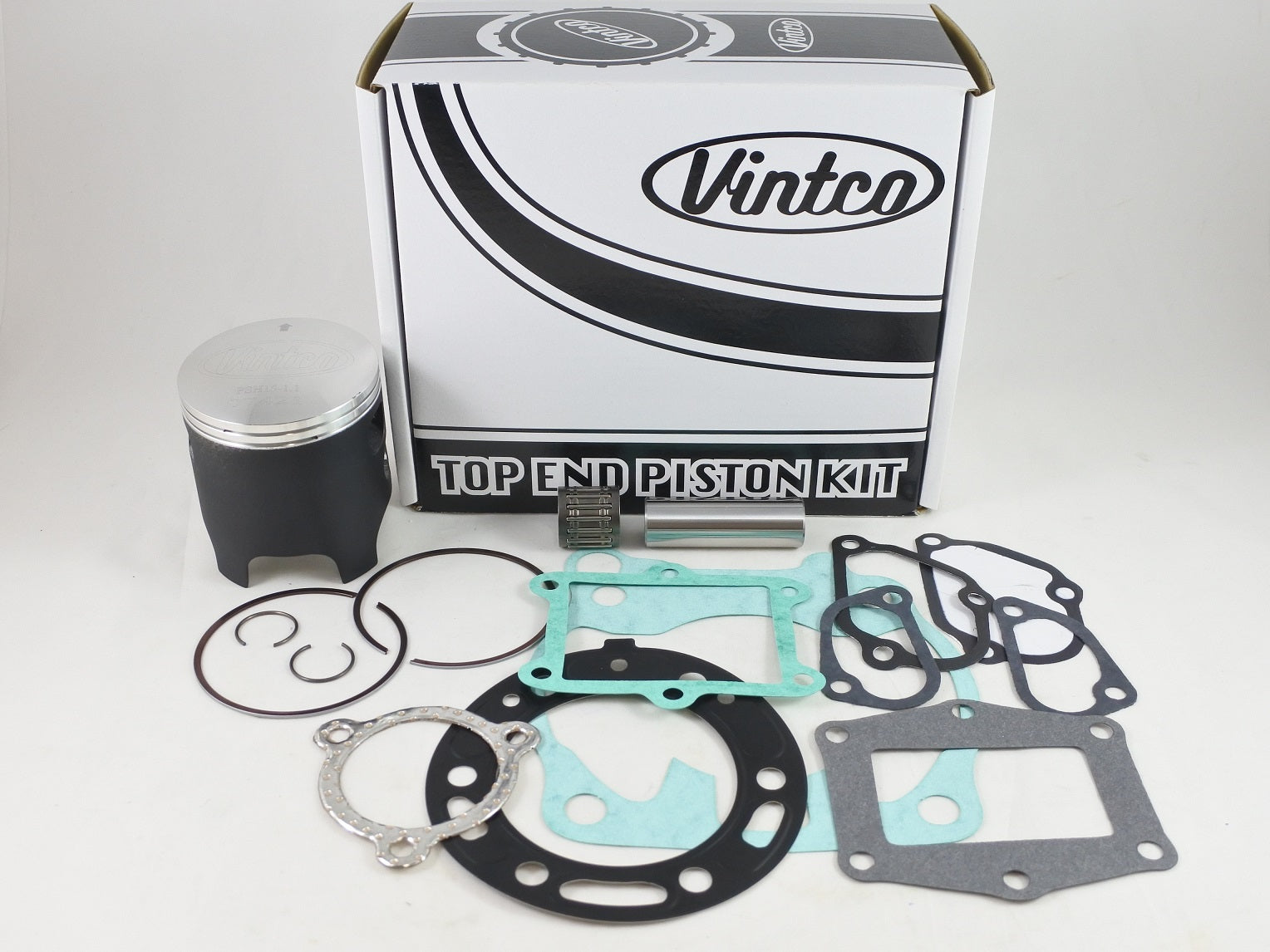

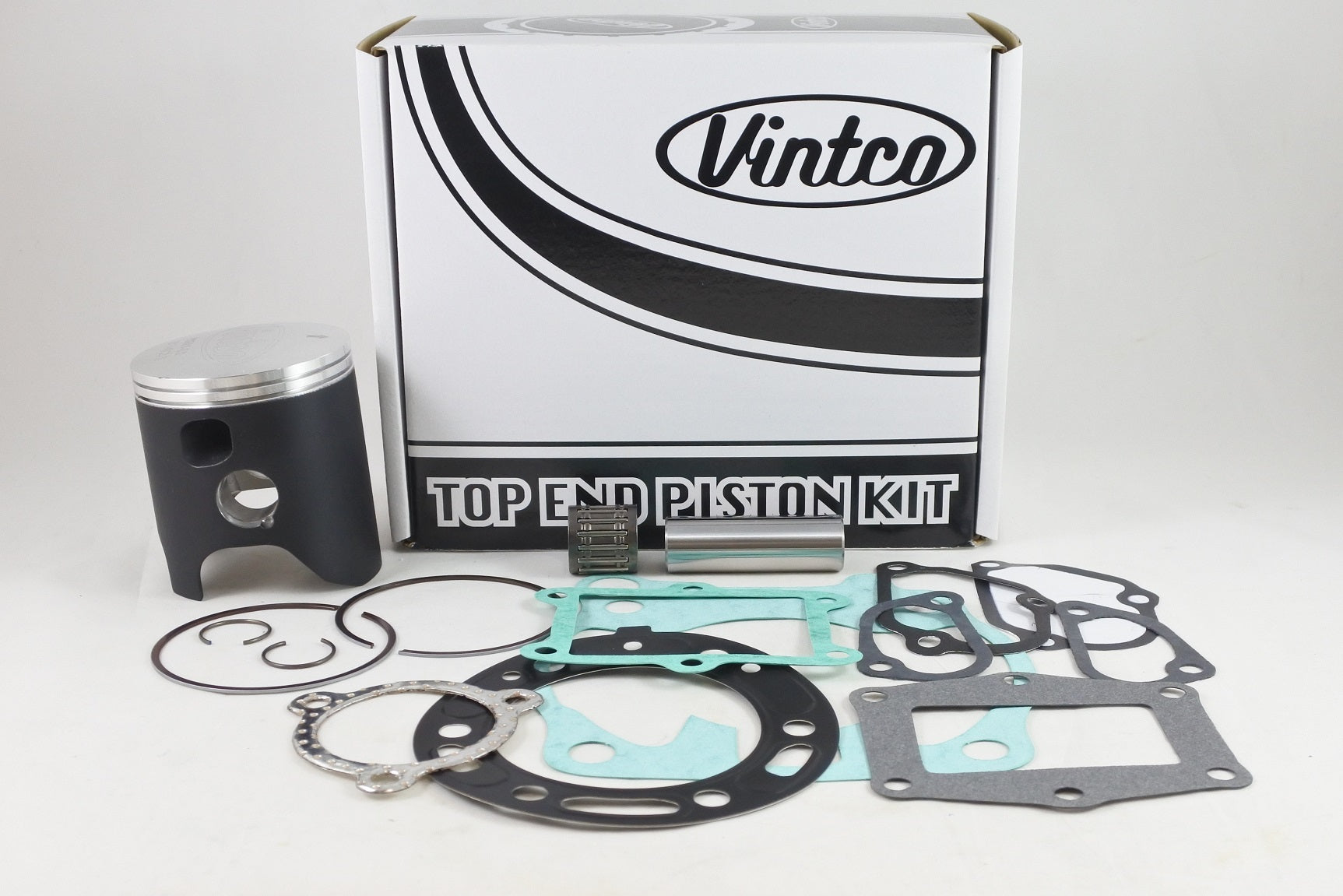

VintCo top end piston kit for 1986-1988 Honda CR250 models, supplied as a complete rebuild set with piston assembly, top end bearing and a full top-end gasket kit. This kit is intended for top end servicing and includes the piston, rings, pin and clips, along with head, base, intake, power valve and exhaust gaskets. It is produced using modern materials and manufacturing methods for OEM-equivalent or better fitment and performance, and is supplied in a 67.5 mm, +1.1 mm over-size configuration.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes power valve gaskets
• Includes exhaust pipe gasket
• Intended to simplify top end rebuild work
• OEM part numbers provided for exact fitment reference
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH26-1.1
• Piston type: Forged
• Piston coating: MOS2 break-in coating
• Country of manufacture: Germany
• Nominal piston size: 67.5 mm
• Piston size: 67.44 mm
• Oversize: +1.1 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-KS7-880
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-KS7-306
• Exhaust pipe gasket: 18291-KS7-880
• Side power valve gasket: 12108-KS7-000
• Upper left power valve cover gasket: 12113-KS7-000
• Upper right power valve cover gasket: 12114-KS7-000

Vehicle Fitments

• 1986 Honda CR250
• 1987 Honda CR250
• 1988 Honda CR250
