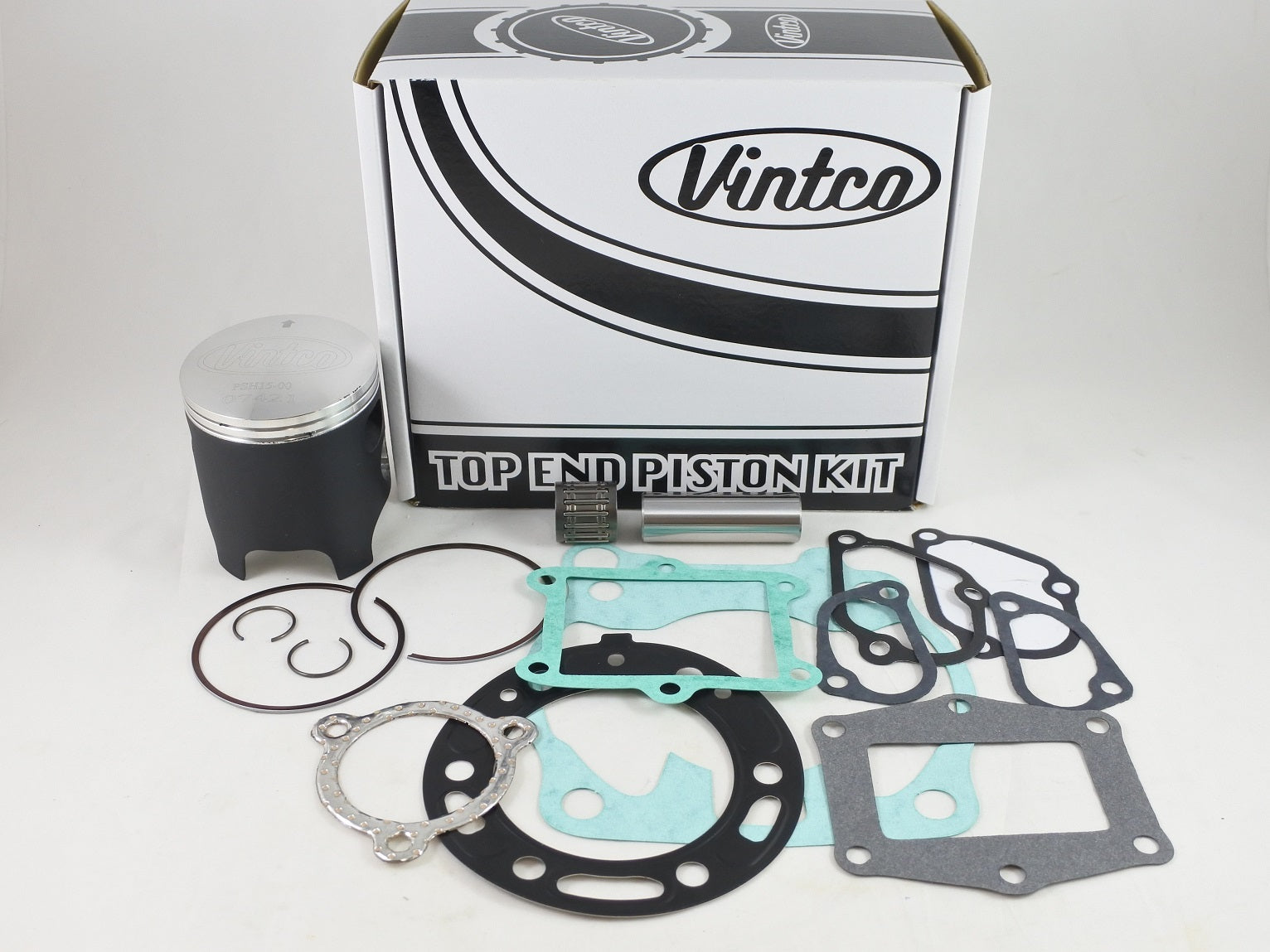

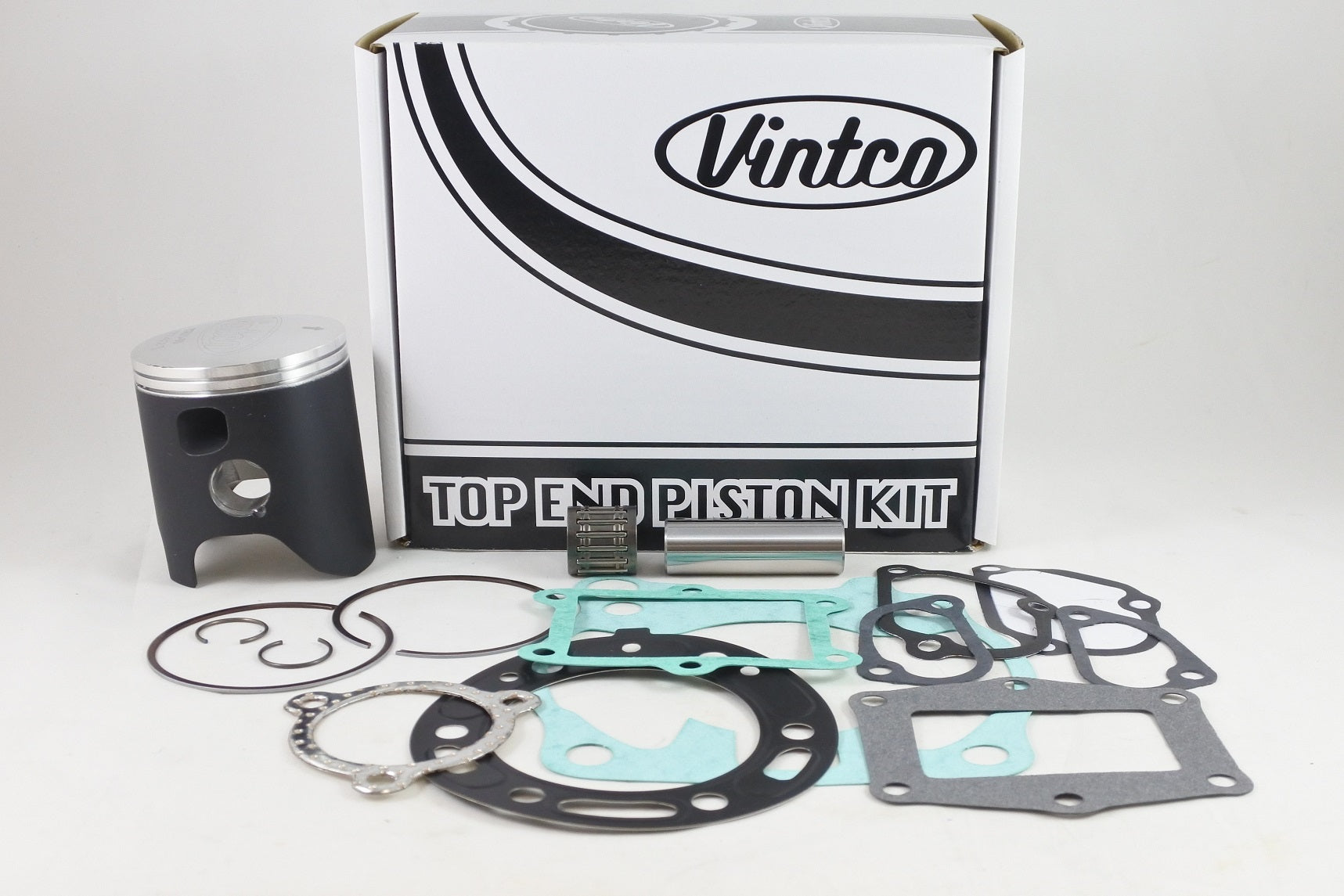

Top End Piston Kit 86-88 Honda CR 250 66.42mm Standard Vintco KTH26-00

VintCo KTH26-00 is a top end piston kit for 1986-1988 Honda CR250 models, supplied as a complete rebuild set with piston, rings, pin, clips, wrist pin bearing and a full top-end gasket kit including head, base, intake, power valve and exhaust gaskets. It is intended for straightforward top-end rebuilds, uses modern manufacturing methods for OEM-equivalent fitment and performance, and the kit price includes a 10% saving compared with the individual items. Other size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes side power valve gasket
• Includes upper left power valve cover gasket
• Includes upper right power valve cover gasket
• Includes exhaust pipe gasket
• OEM part number cross-reference provided for exact fitment

Specifications

• VintCo Part Number: KTH26-00
• Standard size: 66.42 mm
• Piston size: 66.36 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MOS2 break-in coating
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-KS7-880
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-KS7-306
• Exhaust pipe gasket: 18291-KS7-880
• Side power valve gasket: 12108-KS7-000
• Upper left power valve cover gasket: 12113-KS7-000
• Upper right power valve cover gasket: 12114-KS7-000

Vehicle Fitments

• 1986 Honda CR250
• 1987 Honda CR250
• 1988 Honda CR250
