TOP END PISTON KIT 86-87 SUZUKI RM 80 47.5mm STANDARD VINTCO KTS13-00

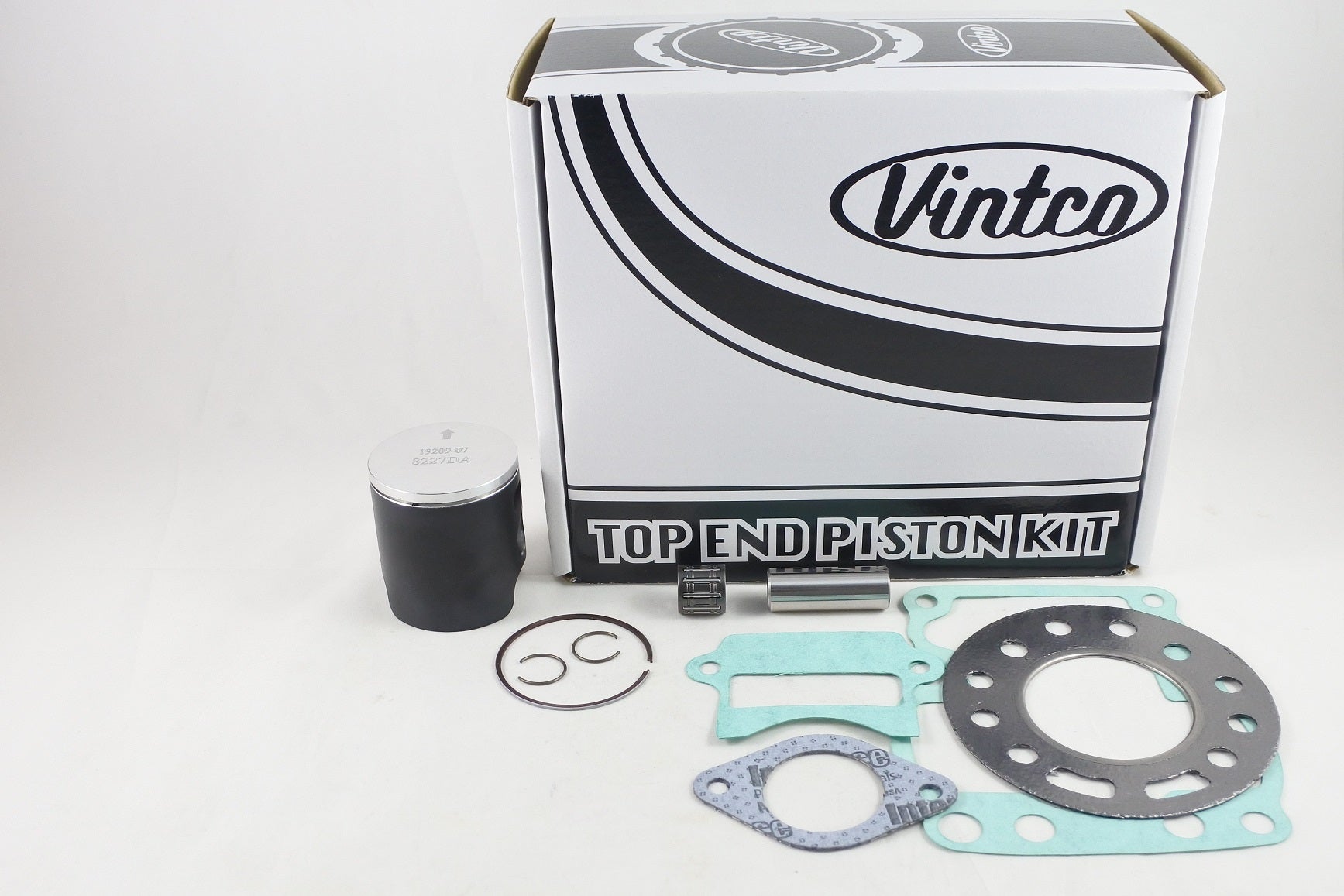

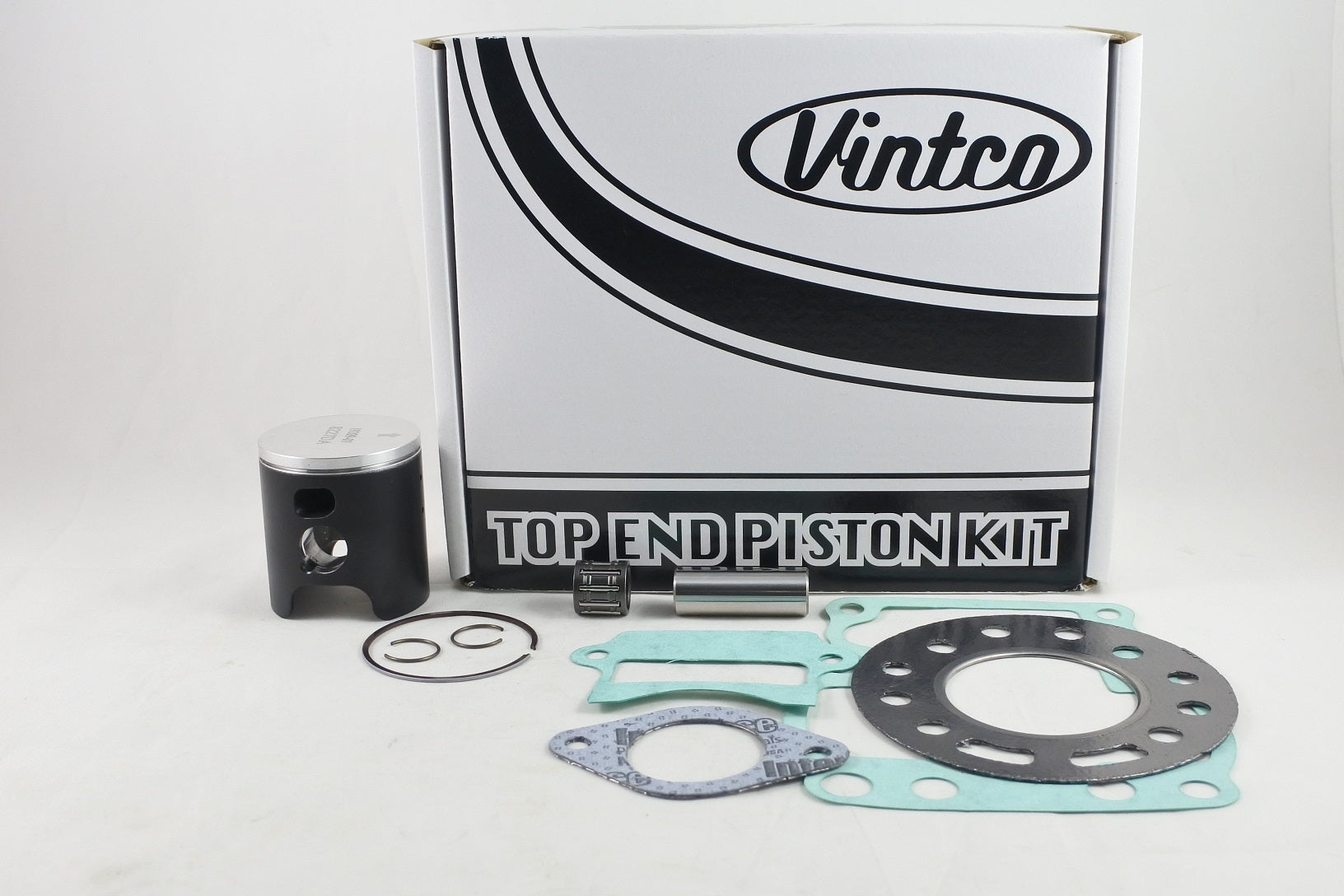

This VintCo top end piston kit is for the 1986-1987 Suzuki RM80 and is supplied with a standard 47.5 mm piston, matched top end gaskets and a wrist pin bearing. The piston is forged, made in Germany and specified with a 0.05 mm clearance and MOS2 coating for initial running-in. Kit pricing includes a 10% discount over purchasing the items individually.

Features

• Complete top end piston kit for top end service
• Includes piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing
• Kit pricing includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTS13-00
• Piston diameter: 47.5 mm
• Piston size: Standard
• Piston-to-cylinder clearance: 0.05 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11141-02B60
• Cylinder base gasket: 11241-02B00-H17
• Intake gasket: 13156-02B00-H17
• Exhaust pipe gasket: 14181-02B00-H17

Vehicle Fitments

• 1986 Suzuki RM80
• 1987 Suzuki RM80
