TOP END PISTON KIT 86-86 SUZUKI RM 250 68.5mm OVER VINTCO KTS09-1.5

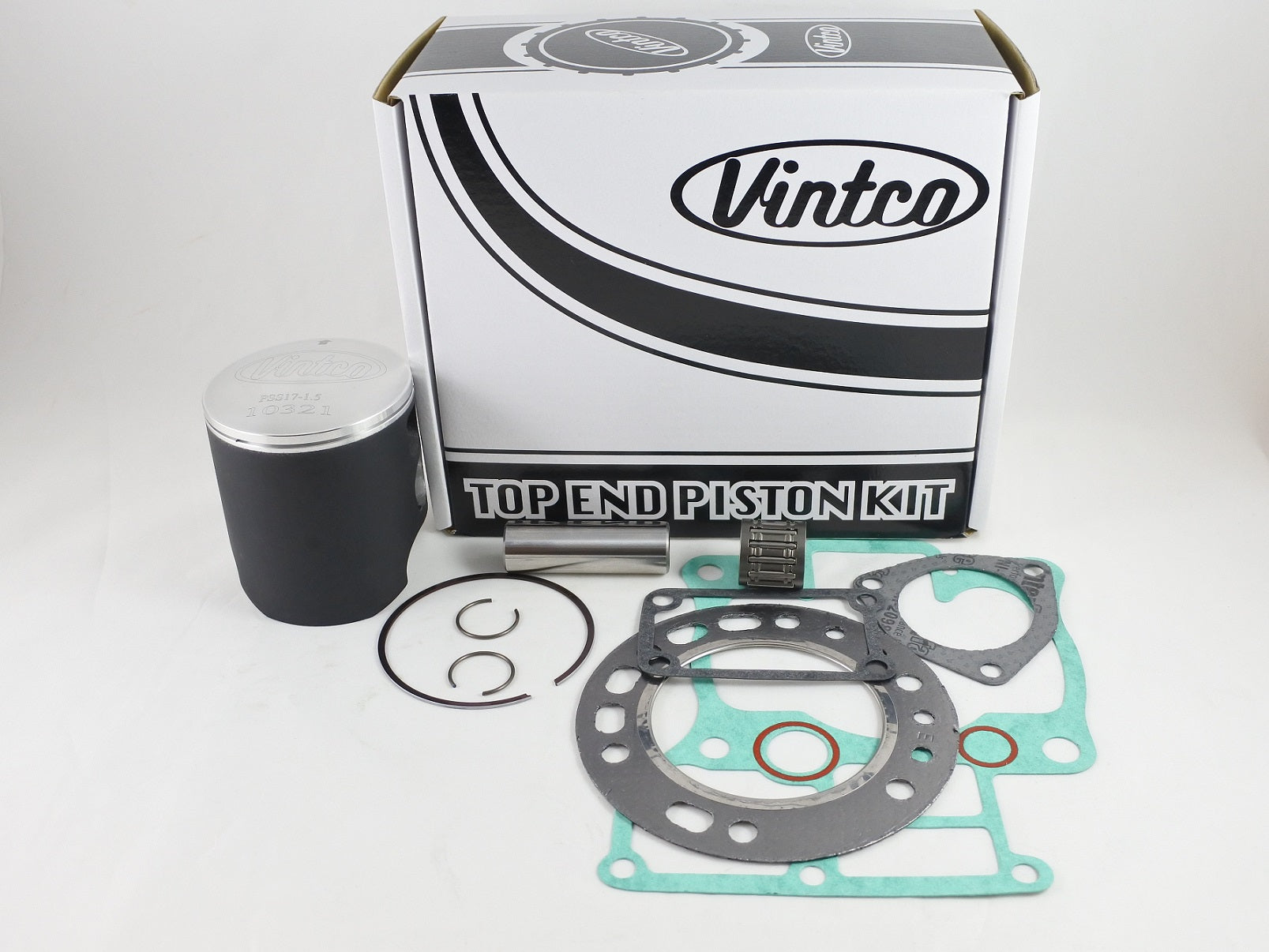

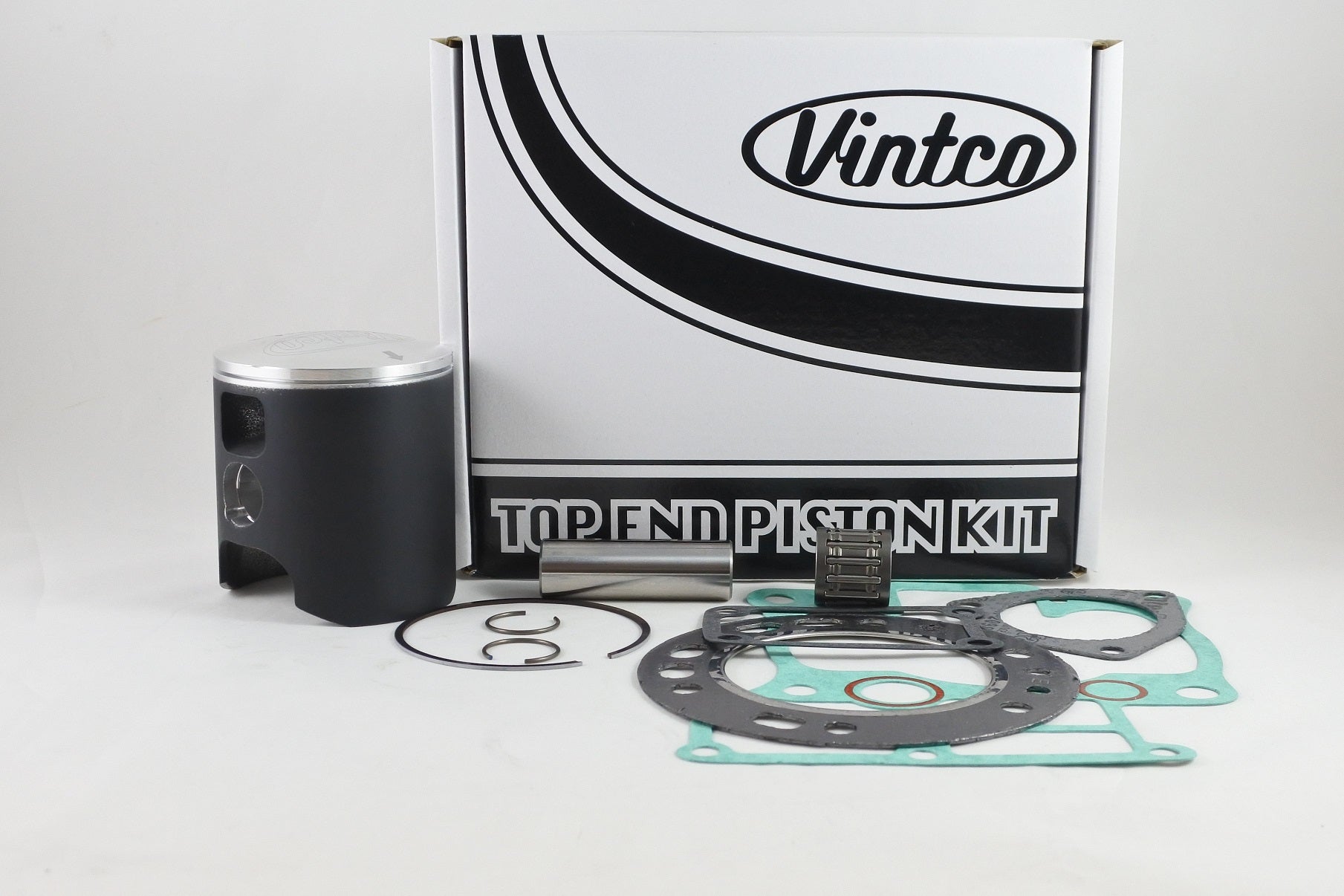

This VintCo top end piston kit is a complete rebuild set for the 1986 Suzuki RM250, supplied in 68.5 mm (+1.5 mm over) size. It includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising the head gasket, base gasket, cover gasket, and exhaust gasket. The components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fitment and performance, and the kit is supplied as a complete package rather than sourcing the parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Includes head gasket, base gasket, cover gasket, and exhaust gasket
• Produced using modern materials and manufacturing techniques
• Additional size options available

Specifications

• VintCo Part Number: KTS09-1.5
• Item Category: Top End Piston Kits
• Piston Diameter: 68.5 mm
• Oversize: +1.5 mm
• Piston Type: Forged
• Piston Origin: Germany
• Piston Coating: MoS2
• Cylinder Head Gasket Bore: 67 mm
• Wrist Pin Bearing Size: 18 x 23 x 21.8 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-01C01-H17
• Cylinder Base Gasket: 11241-01C10
• Cylinder Cover Gasket: 11233-01C00
• Exhaust Pipe Gasket: 14181-16300-H17

Vehicle Fitments

• 1986 Suzuki RM250
