Top End Piston Kit 86-86 Suzuki RM 125 55.5mm 1.5mm Over Vintco KTS18-1.5

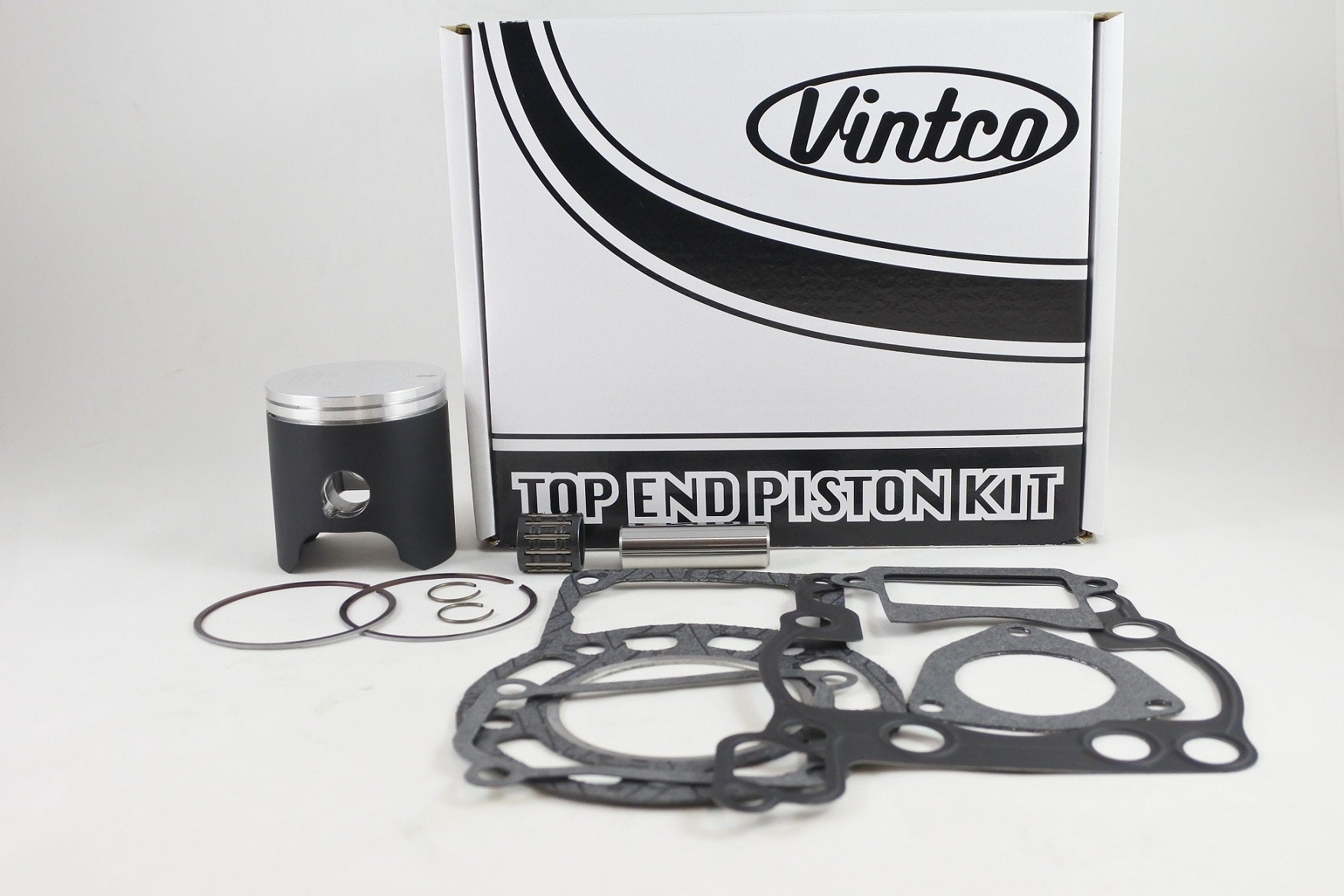

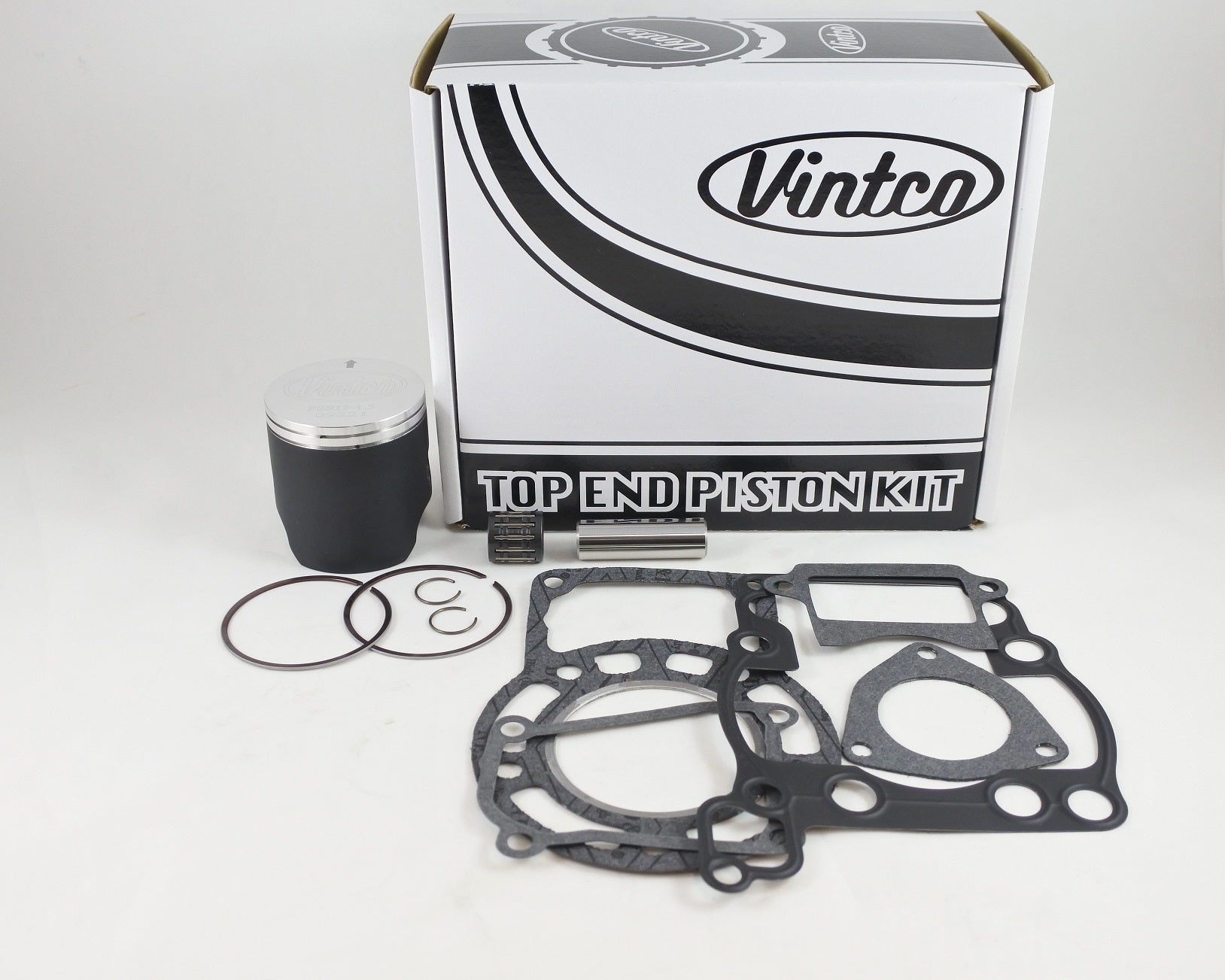

This top end piston kit is for the 1986 Suzuki RM125 and is supplied as a complete rebuild set for the top end. It includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full gasket set covering the head gasket, base gasket, reed valve gasket, cylinder cover gasket and exhaust pipe gasket. The components are manufactured using modern materials and production methods for OEM-equivalent fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Supplied with head gasket, base gasket, reed valve gasket, cylinder cover gasket and exhaust pipe gasket
• Forged piston included
• Suitable for 1986 Suzuki RM125
• Additional size options are available
• Kit price represents a 10% saving compared with purchasing the items individually

Specifications

• VintCo Part Number: KTS18-1.5
• Piston size: 55.45 mm
• Nominal size designation: 55.5 mm
• Oversize: +1.5 mm
• Piston clearance: 0.06 mm
• Piston coating: German MoS2 coating for break-in

Cross-Reference OEM Part Numbers

• Head gasket: 11141-01B01-H17
• Base gasket: 11241-01B00-H17
• Reed valve gasket: 13156-14500-H17
• Cylinder cover gasket: 11233-01B00-H17
• Exhaust pipe gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022
• Wrist pin bearing: 09263-1402

Vehicle Fitments

• 1986 Suzuki RM125
