Top End Piston Kit 85-88 Honda CR 500 91.0mm 2.0mm Over Vintco KTH30-2.0

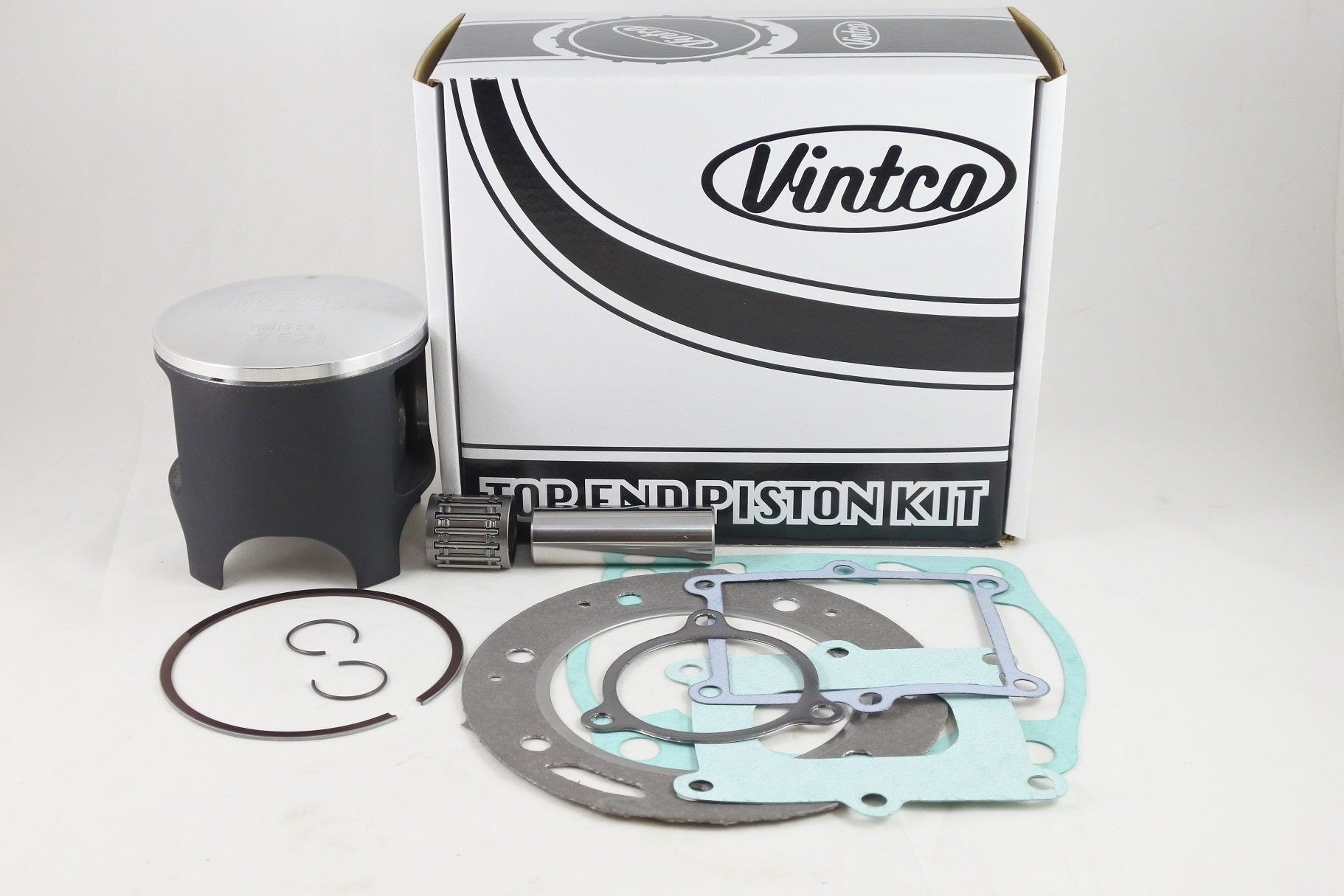

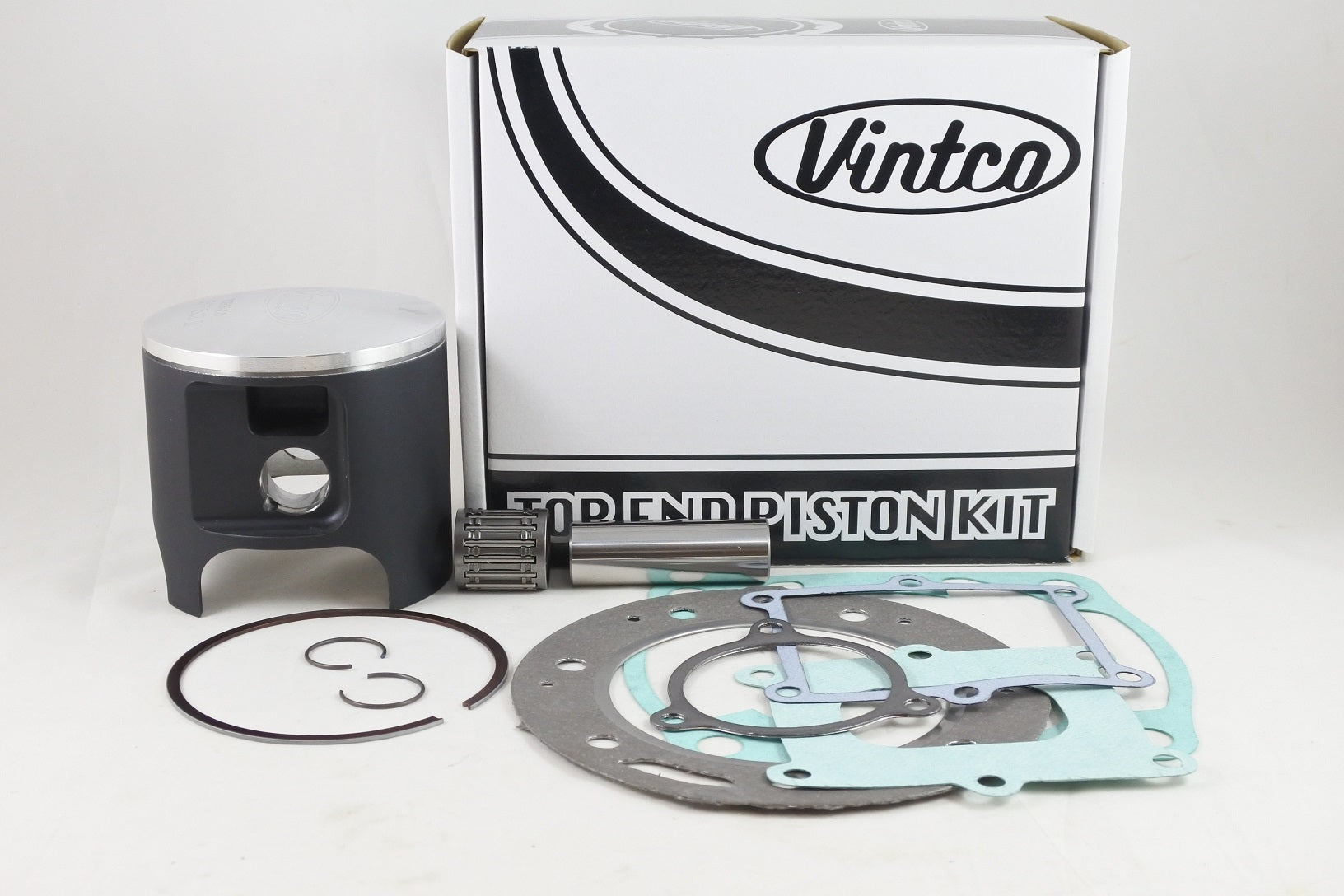

This VintCo top-end piston kit is a complete rebuild kit for 1985-1988 Honda CR500 models. It includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The kit is intended to provide an exact fit in line with OEM references and is supplied as a complete package for straightforward top-end rebuilding.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gaskets
• Supplied with exhaust pipe gasket
• Intended for exact OEM-style fitment and performance
• Kit price includes a 10% saving compared to purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH30-2.0
• Product type: Top End Piston Kit
• Piston size: 90.92 mm
• Oversize: +2.0 mm over
• Nominal kit size: 91.0 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-881
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-KA5-306
• Intake gasket: 14133-KA5-306 (not for 1988)
• Exhaust pipe gasket: 18291-KA5-306

Vehicle Fitments

• 1985 Honda CR500
• 1986 Honda CR500
• 1987 Honda CR500
• 1988 Honda CR500
