TOP END PISTON KIT 85-88 HONDA CR 500 90.0mm 1.0mm OVER VINTCO KTH30-1.0

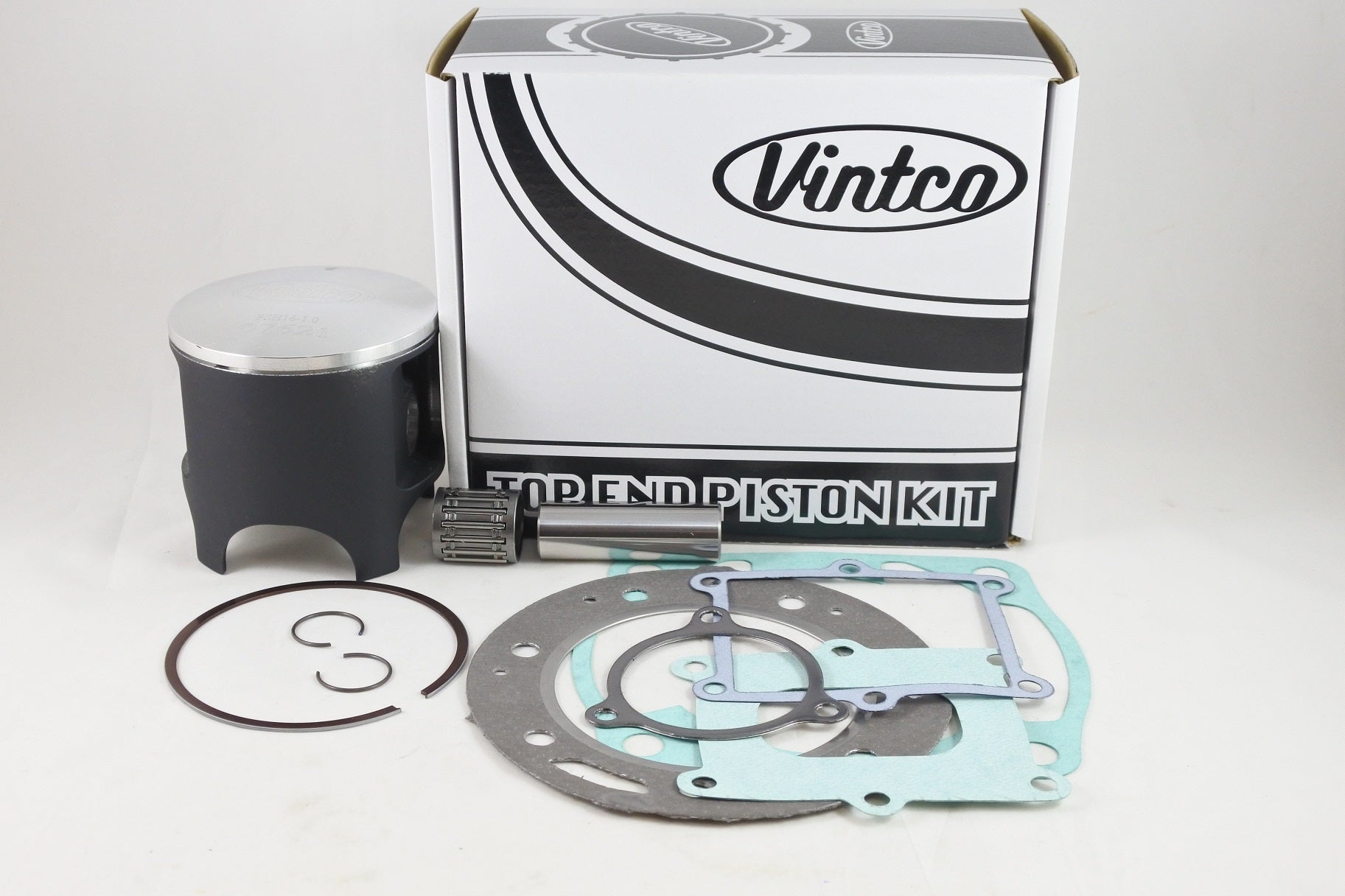

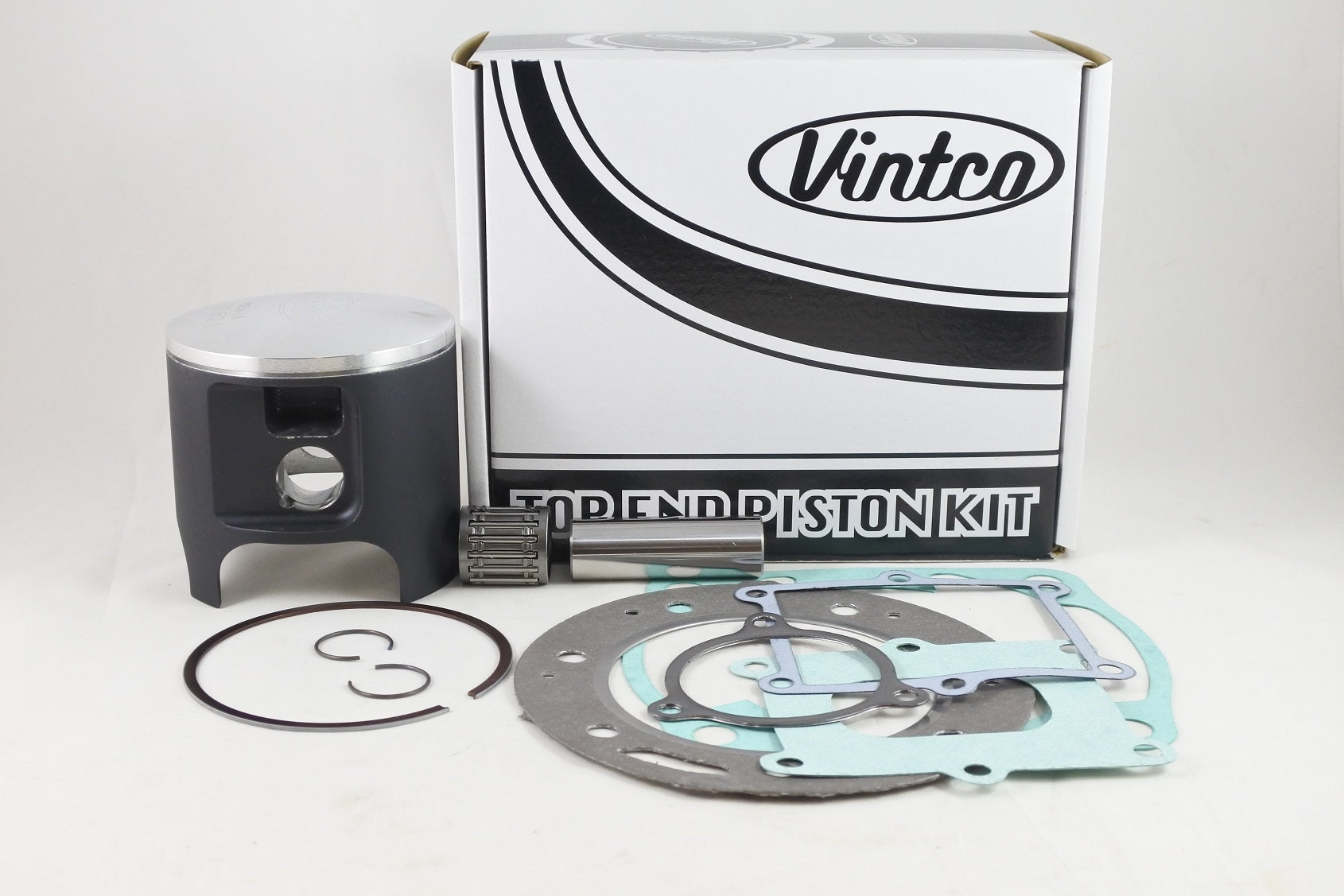

This VintCo top end piston kit is a complete rebuild set for 1985-1988 Honda CR500 models, supplied in 90.0 mm size with +1.0 mm oversize. The kit includes a VintCo piston assembly with rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. It is intended to provide fitment and performance comparable to OEM components for top end rebuild work.

Features

• Complete top end rebuild kit for 1985-1988 Honda CR500 models
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gasket and exhaust pipe gasket
• Uses modern materials and manufacturing techniques
• MoS2-coated piston to assist during running-in
• Kit price is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH30-1.0
• Product Type: Top End Piston Kit
• Nominal Piston Size: 90.0 mm
• Oversize: +1.0 mm
• Piston Diameter: 89.92 mm
• Piston Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MoS2
• Country of Manufacture: Germany

Cross-Reference OEM Part Numbers

• Head Gasket: 12254-ML3-881
• Base Gasket: 12191-MAC-680
• Intake Gasket: 14132-KA5-306
• Intake Gasket (not for 1988): 14133-KA5-306
• Exhaust Pipe Gasket: 18291-KA5-306

Vehicle Fitments

• 1985 Honda CR500
• 1986 Honda CR500
• 1987 Honda CR500
• 1988 Honda CR500
