Top End Piston Kit 85-86 Yamaha YZ 80 49.5mm 1.5mm Over Vintco KTY60-1.5
  • Top End Piston Kit 85-86 Yamaha YZ 80 49.5mm 1.5mm Over Vintco KTY60-1.5
  • Top End Piston Kit 85-86 Yamaha YZ 80 49.5mm 1.5mm Over Vintco KTY60-1.5
  • Top End Piston Kit 85-86 Yamaha YZ 80 49.5mm 1.5mm Over Vintco KTY60-1.5
  • Top End Piston Kit 85-86 Yamaha YZ 80 49.5mm 1.5mm Over Vintco KTY60-1.5
Top End Piston Kit 85-86 Yamaha YZ 80 49.5mm 1.5mm Over Vintco KTY60-1.5

Top End Piston Kit 85-86 Yamaha YZ 80 49.5mm 1.5mm Over Vintco KTY60-1.5

£142.56 GBP
Taxes included. Shipping calculated at checkout.

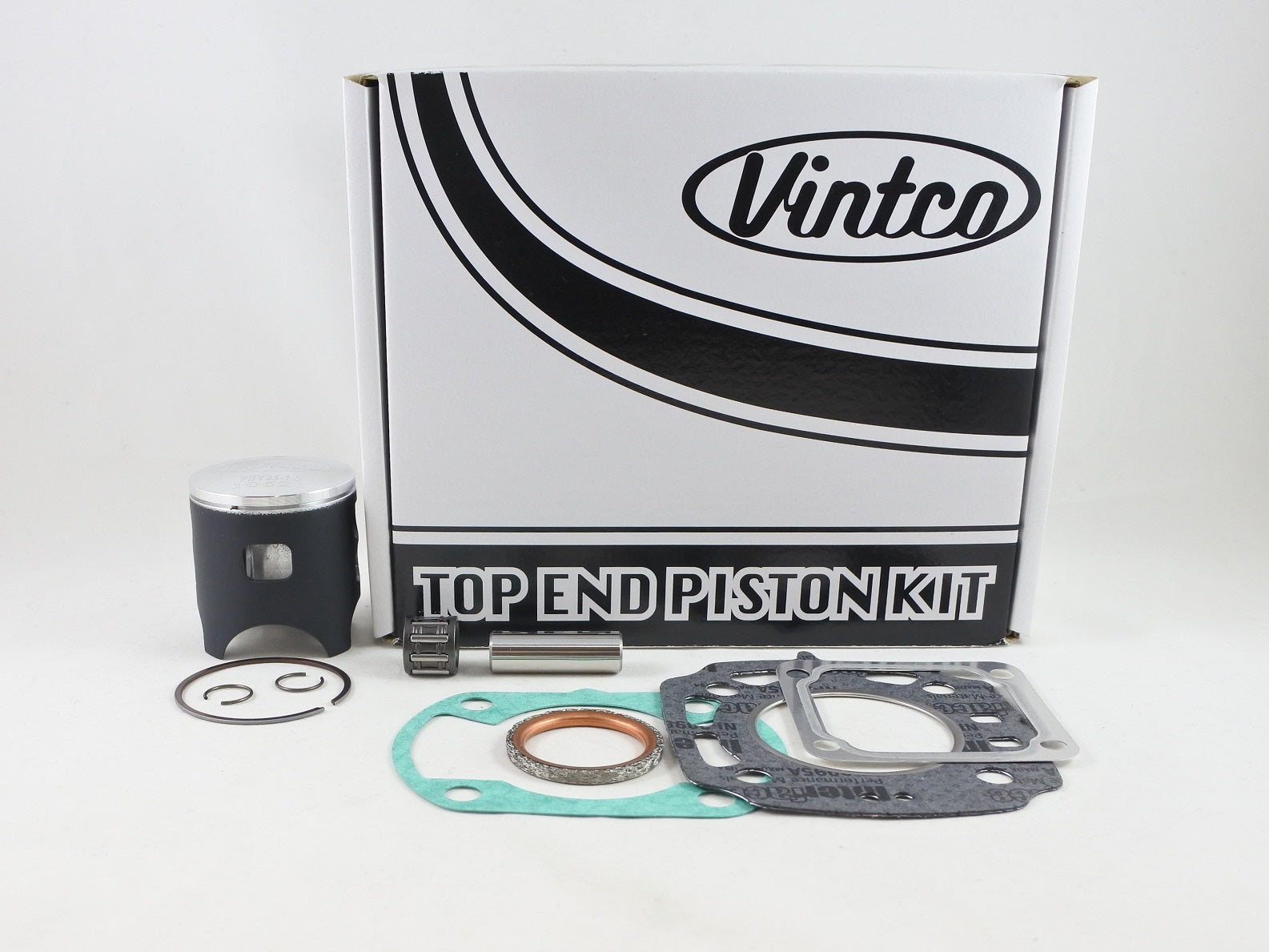

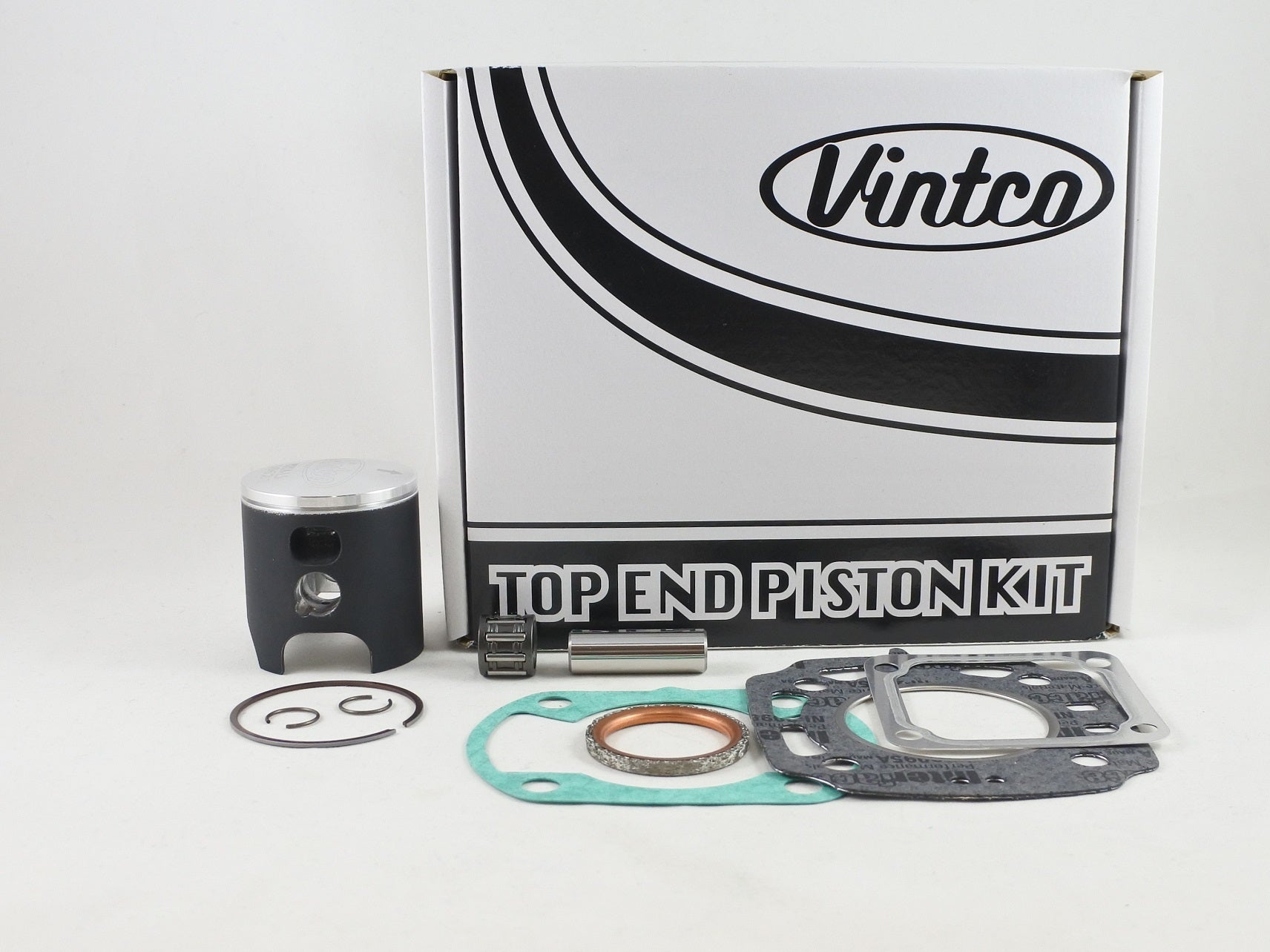

VintCo KTY60-1.5 is a top end piston kit for Yamaha YZ80 models, listed for 1985-1986 applications. The kit includes a forged piston, cylinder head gasket, cylinder base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing, providing the main components required for a top end rebuild.

Features

  • Complete top end kit for Yamaha YZ80 applications
  • Supplied with piston, cylinder head gasket, cylinder base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
  • Piston coating intended to assist initial running-in
  • Kit pricing reflects a 10% reduction compared with purchasing the items individually

Specifications

  • VintCo Part Number: KTY60-1.5
  • Product type: Top End Piston Kit
  • Piston size: 49.5 mm
  • Oversize: 1.5 mm over
  • Piston measurement: 49.45 mm
  • Clearance: 0.05 mm
  • Piston construction: Forged
  • Country of manufacture: Germany
  • Piston coating: MOS2

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 58T-11181-01-00
  • Cylinder Base Gasket: 4V0-11351-10-00
  • Reed Valve Gasket: 39K-13621-01-00
  • Exhaust Pipe Gasket: 4BR-14613-00-00

Vehicle Fitments

  • 1985 Yamaha YZ80
