TOP END PISTON KIT 85-86 YAMAHA YZ 80 48mm STANDARD VINTCO KTY60-00
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48mm STANDARD VINTCO KTY60-00
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48mm STANDARD VINTCO KTY60-00
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48mm STANDARD VINTCO KTY60-00
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48mm STANDARD VINTCO KTY60-00
TOP END PISTON KIT 85-86 YAMAHA YZ 80 48mm STANDARD VINTCO KTY60-00

TOP END PISTON KIT 85-86 YAMAHA YZ 80 48mm STANDARD VINTCO KTY60-00

£142.56 GBP
Taxes included. Shipping calculated at checkout.

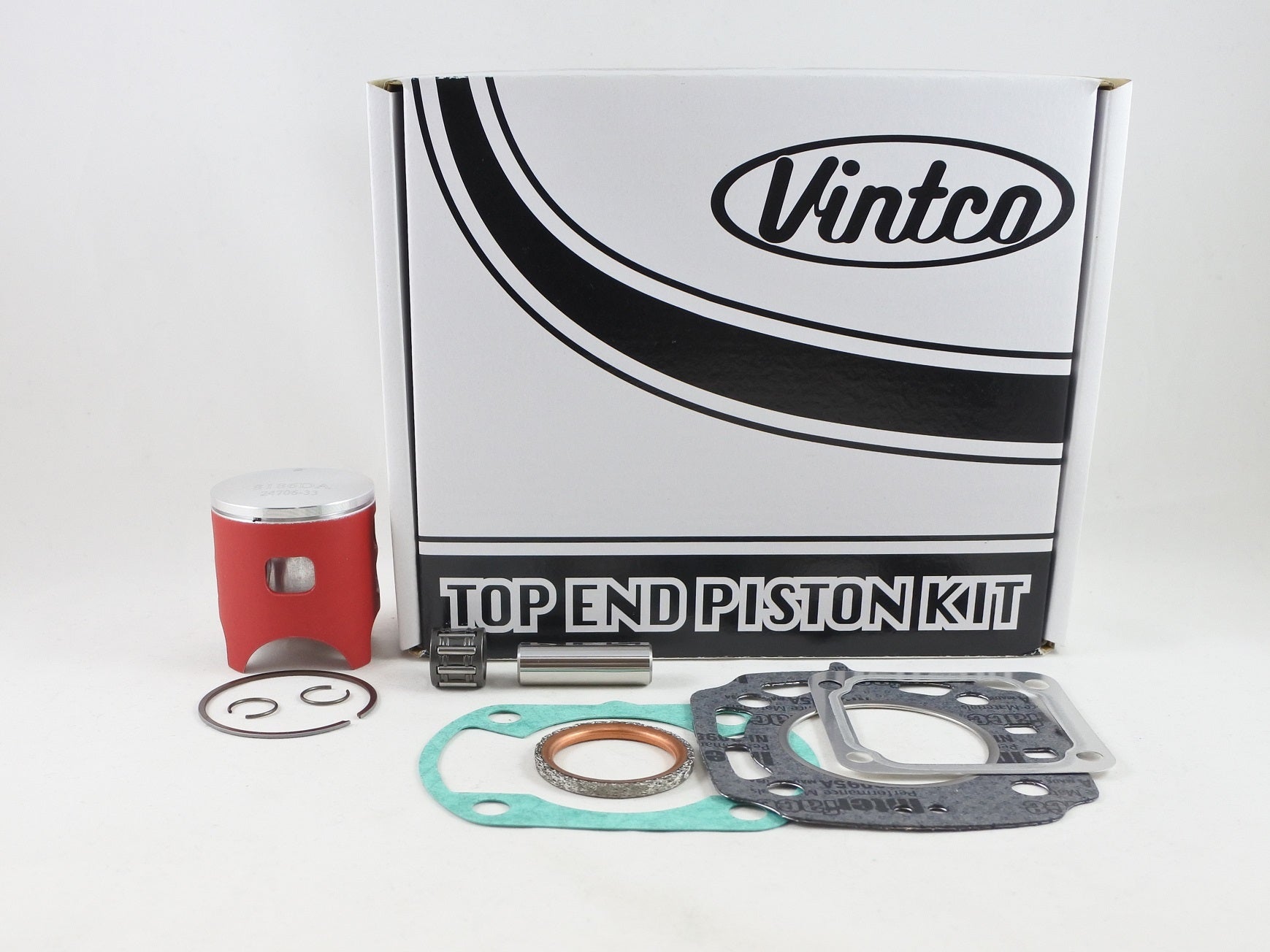

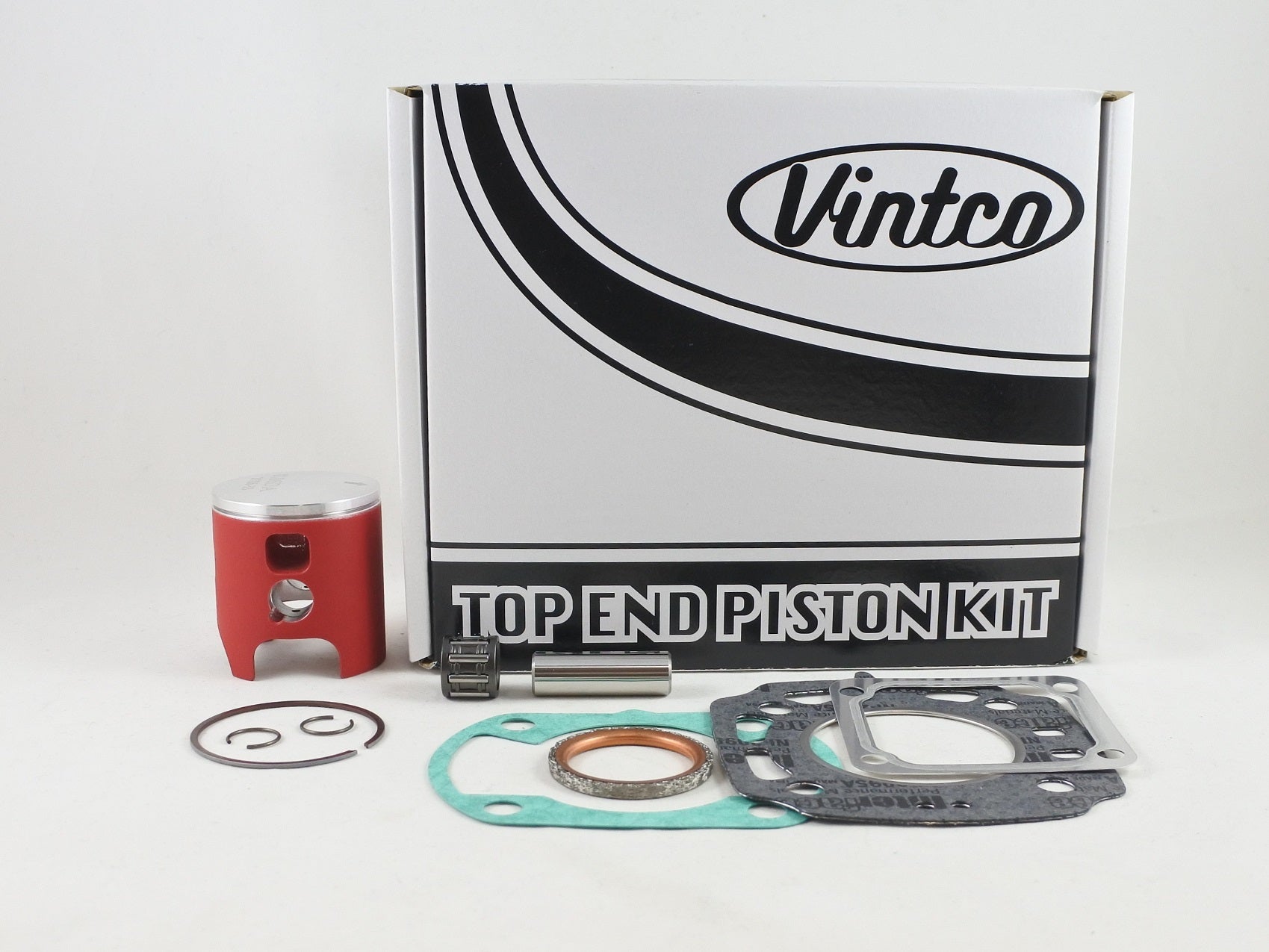

This VintCo KTY60-00 top end piston kit is a standard 48 mm assembly for 1985-1986 Yamaha YZ80 applications, supplied as a complete top-end package with a forged piston manufactured in Germany, MOS2 coating for break-in, a wrist pin bearing, and cylinder head, cylinder base, reed valve, and exhaust pipe gaskets. The kit price includes a 10% discount compared with the individual items.

Features

  • Complete top end kit with piston, gaskets, and wrist pin bearing
  • MOS2-coated piston for break-in
  • Includes cylinder head, cylinder base, reed valve, and exhaust pipe gaskets

Specifications

  • VintCo Part Number: KTY60-00
  • Nominal piston size: 48 mm
  • Piston diameter: 47.95 mm
  • Clearance: 0.05 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 58T-11181-01-00
  • Cylinder Base Gasket: 4V0-11351-10-00
  • Reed Valve Gasket: 39K-13621-01-00
  • Exhaust Pipe Gasket: 4BR-14613-00-00

Vehicle Fitments

  • 1985 Yamaha YZ80
