TOP END PISTON KIT 85-86 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY60-0.5
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY60-0.5
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY60-0.5
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY60-0.5
  • TOP END PISTON KIT 85-86 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY60-0.5
TOP END PISTON KIT 85-86 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY60-0.5

TOP END PISTON KIT 85-86 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY60-0.5

£142.56 GBP
Taxes included. Shipping calculated at checkout.

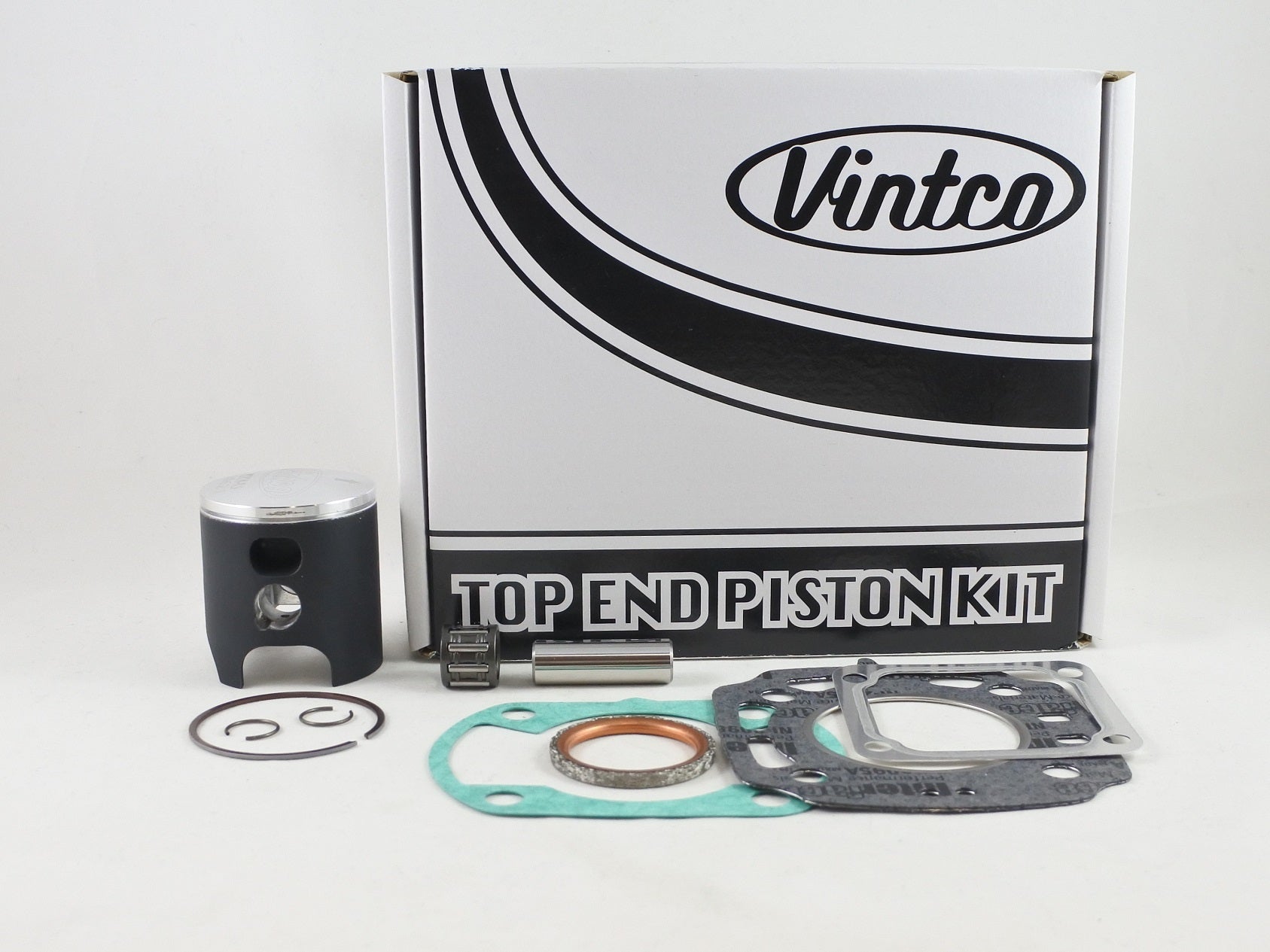

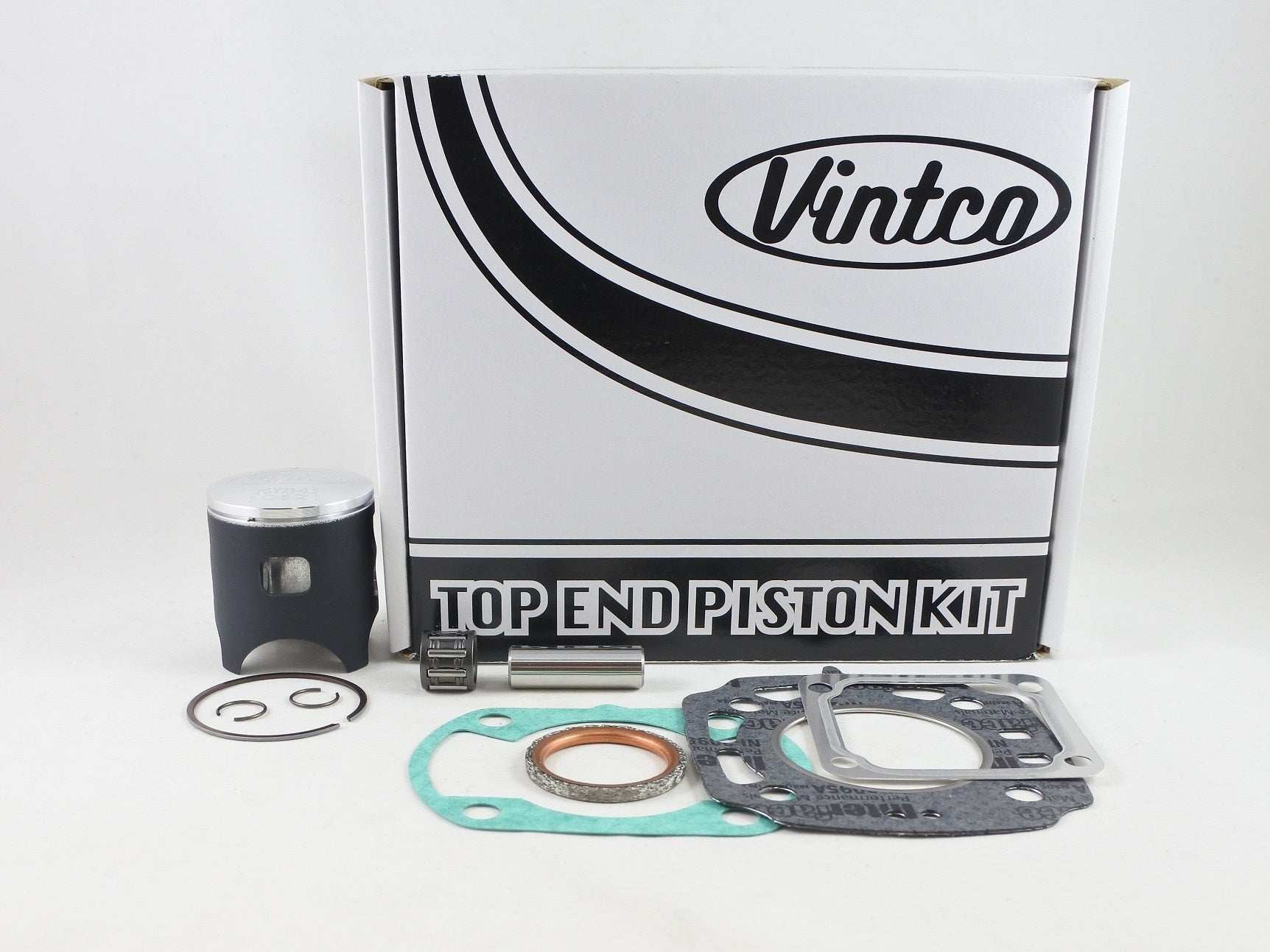

This VintCo top end piston kit is intended for Yamaha YZ80 applications and includes a forged piston manufactured in Germany, together with the required gaskets and a wrist pin bearing. It is supplied as a complete kit at a price that includes a 10% reduction compared with purchasing the items individually.

Features

  • Complete top end piston kit
  • Forged piston
  • MOS2 coated for running-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit price includes a 10% reduction compared with individual items

Specifications

  • VintCo Part Number: KTY60-0.5
  • Piston size: 48.5 mm
  • Oversize: 0.5 mm over
  • Piston diameter: 48.45 mm
  • Clearance: 0.05 mm
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 58T-11181-01-00
  • Cylinder base gasket: 4V0-11351-10-00
  • Reed valve gasket: 39K-13621-01-00
  • Exhaust pipe gasket: 4BR-14613-00-00

Vehicle Fitments

  • 1985 Yamaha YZ80
