Top End Piston Kit 85-86 Honda Atc R 250 67.0mm 1.0mm Over Vintco KTH22-1.0
  • Top End Piston Kit 85-86 Honda Atc R 250 67.0mm 1.0mm Over Vintco KTH22-1.0
  • Top End Piston Kit 85-86 Honda Atc R 250 67.0mm 1.0mm Over Vintco KTH22-1.0
  • Top End Piston Kit 85-86 Honda Atc R 250 67.0mm 1.0mm Over Vintco KTH22-1.0
  • Top End Piston Kit 85-86 Honda Atc R 250 67.0mm 1.0mm Over Vintco KTH22-1.0
Top End Piston Kit 85-86 Honda Atc R 250 67.0mm 1.0mm Over Vintco KTH22-1.0

Top End Piston Kit 85-86 Honda Atc R 250 67.0mm 1.0mm Over Vintco KTH22-1.0

£222.90 GBP
Taxes included. Shipping calculated at checkout.

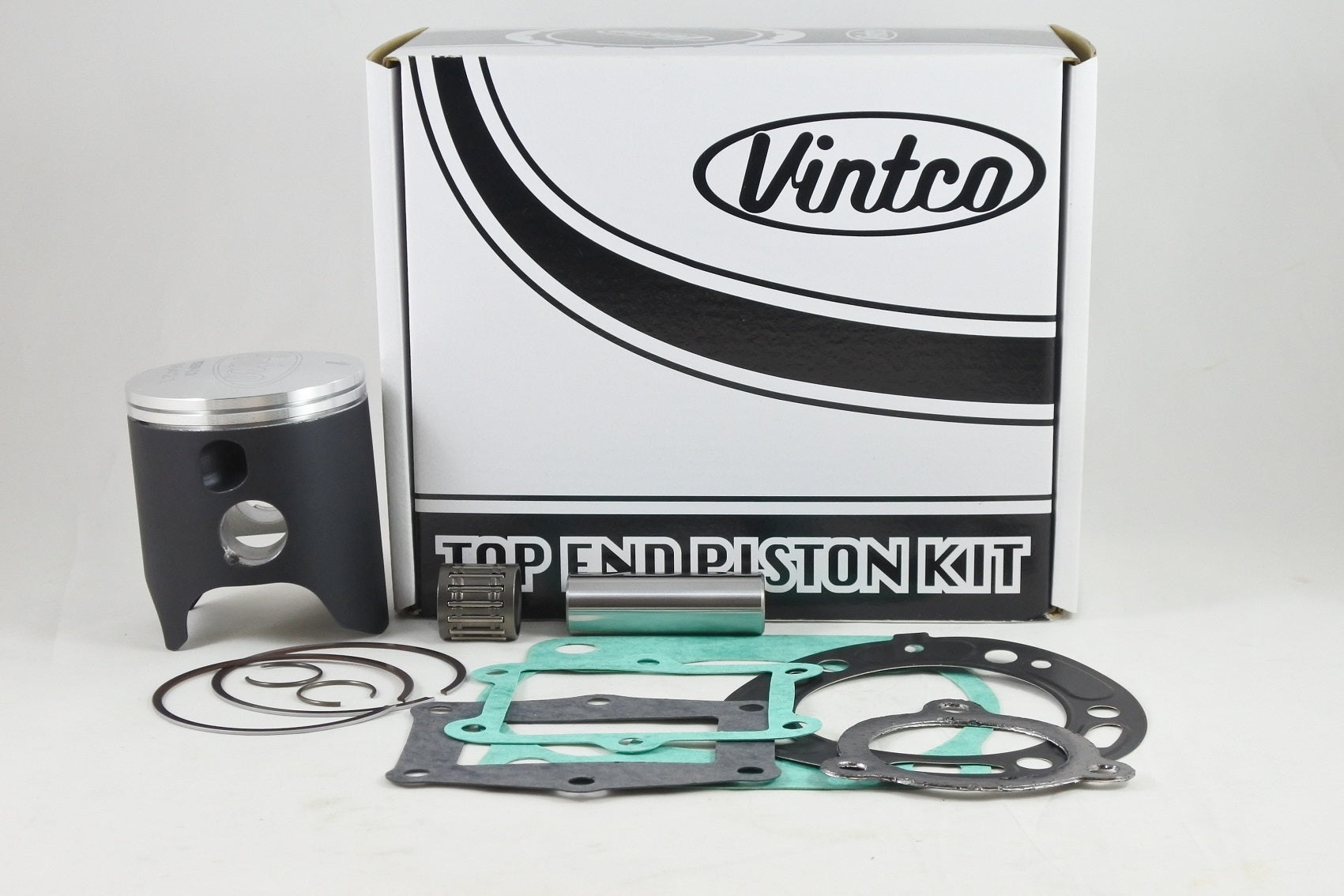

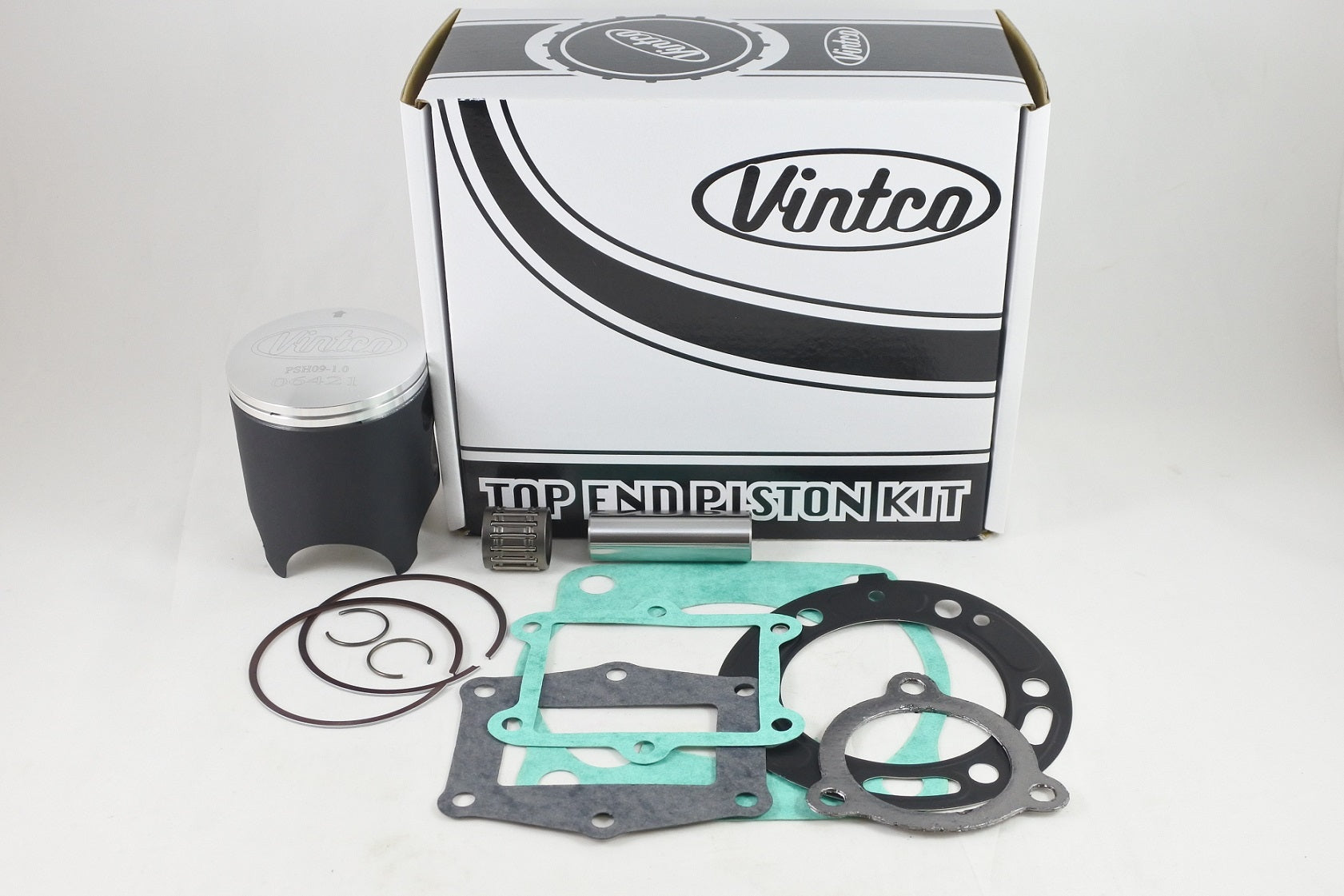

VintCo top end piston kit KTH22-1.0 is a complete rebuild kit for the 1985-1986 Honda ATC250R. It includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake and exhaust. The components are manufactured using modern materials and production methods for OEM-equivalent fit and function.

Features

  • Complete top end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes full top-end gasket set
  • Forged piston with MOS2 coating for running-in
  • Made in Germany
  • Kit pricing is 10% lower than purchasing the components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTH22-1.0
  • Product Type: Top End Piston Kit
  • Nominal bore size: 67.0 mm
  • Oversize: +1.0 mm over
  • Piston diameter: 66.94 mm
  • Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head gasket: 12254-KS7-881
  • Base gasket: 12191-HA2-306
  • Intake gasket: 14132-KAE-000
  • Intake gasket: 14133-430-306
  • Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

  • 1985 Honda ATC250R
  • 1986 Honda ATC250R
