TOP END PISTON KIT 85-86 HONDA ATC R 250 65.94mm STANDARD VINTCO KTH22-00

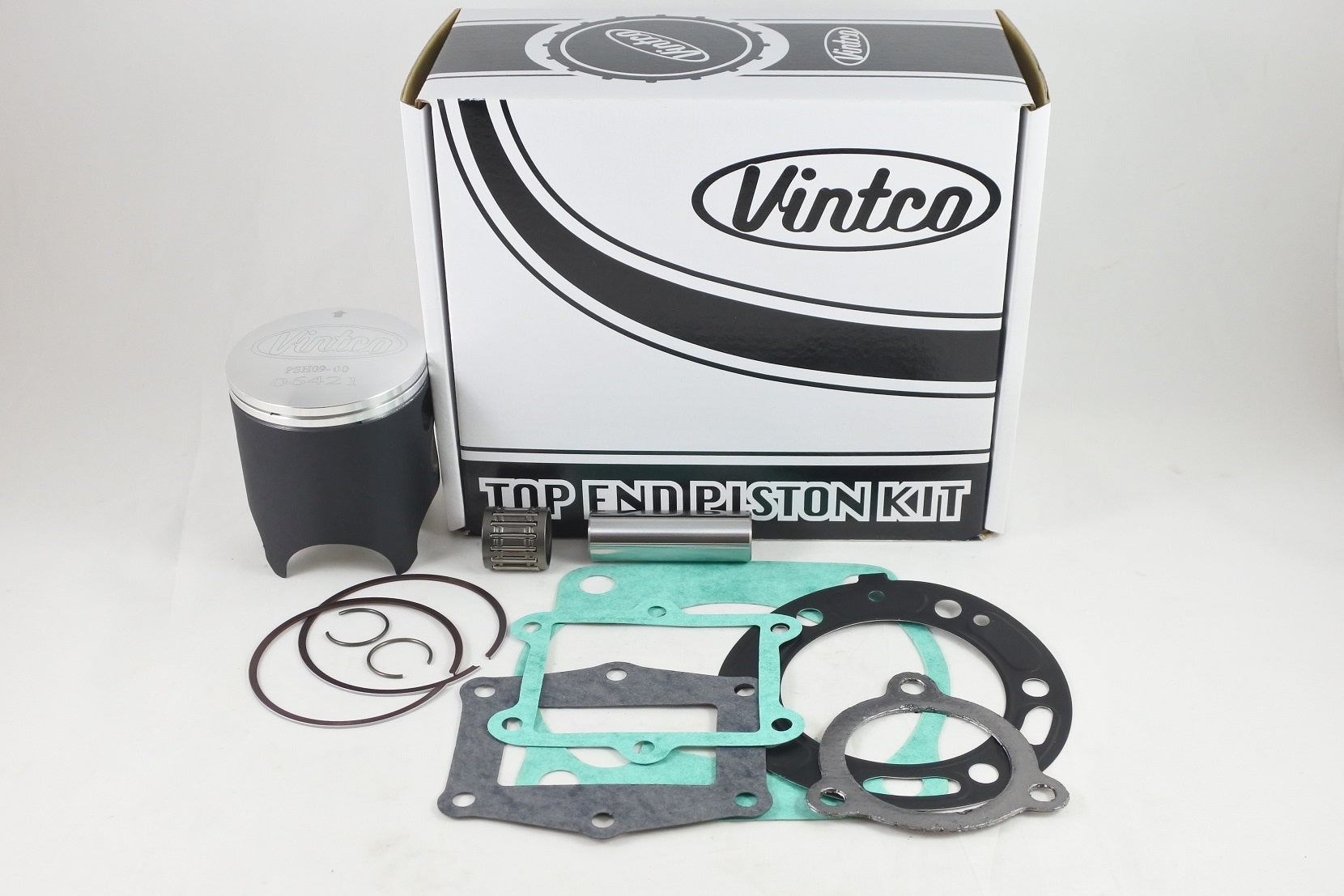

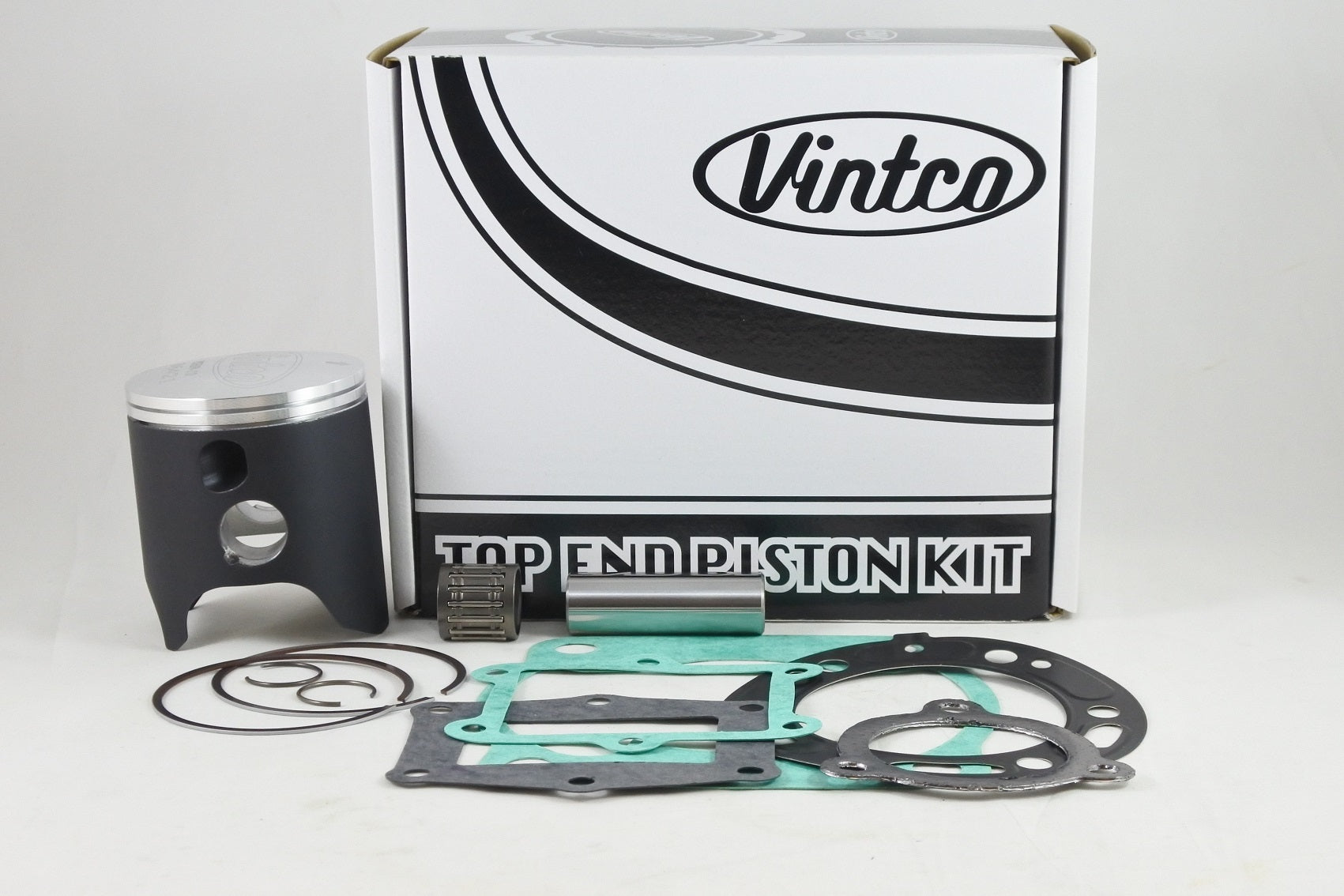

VintCo top end piston kit KTH22-00 is a complete rebuild kit for 1985-1986 Honda ATC250R models, supplied with a forged piston, rings, pin, clips, a wrist pin bearing and a full top-end gasket set including head, base, intake and exhaust pipe gaskets. Manufactured using modern materials and production methods for OEM-style fitment and performance, this standard-size kit is intended to simplify top-end rebuilds and is priced at 10% less than purchasing the components individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Gasket set includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
• OEM part numbers provided for fitment verification
• Additional size options are available
• Kit price includes a 10% saving compared with buying the items individually

Specifications

• VintCo Part Number: KTH22-00
• Item Category: Top End Piston Kits
• Size: Standard
• Piston Diameter: 65.94 mm
• Piston-to-cylinder Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MOS2
• Piston Manufacture Location: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-HA2-306
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1985 Honda ATC250R
• 1986 Honda ATC250R
