TOP END PISTON KIT 85-85 SUZUKI RM 125 54.5mm 0.5mm OVER VINTCO KTS17-0.5

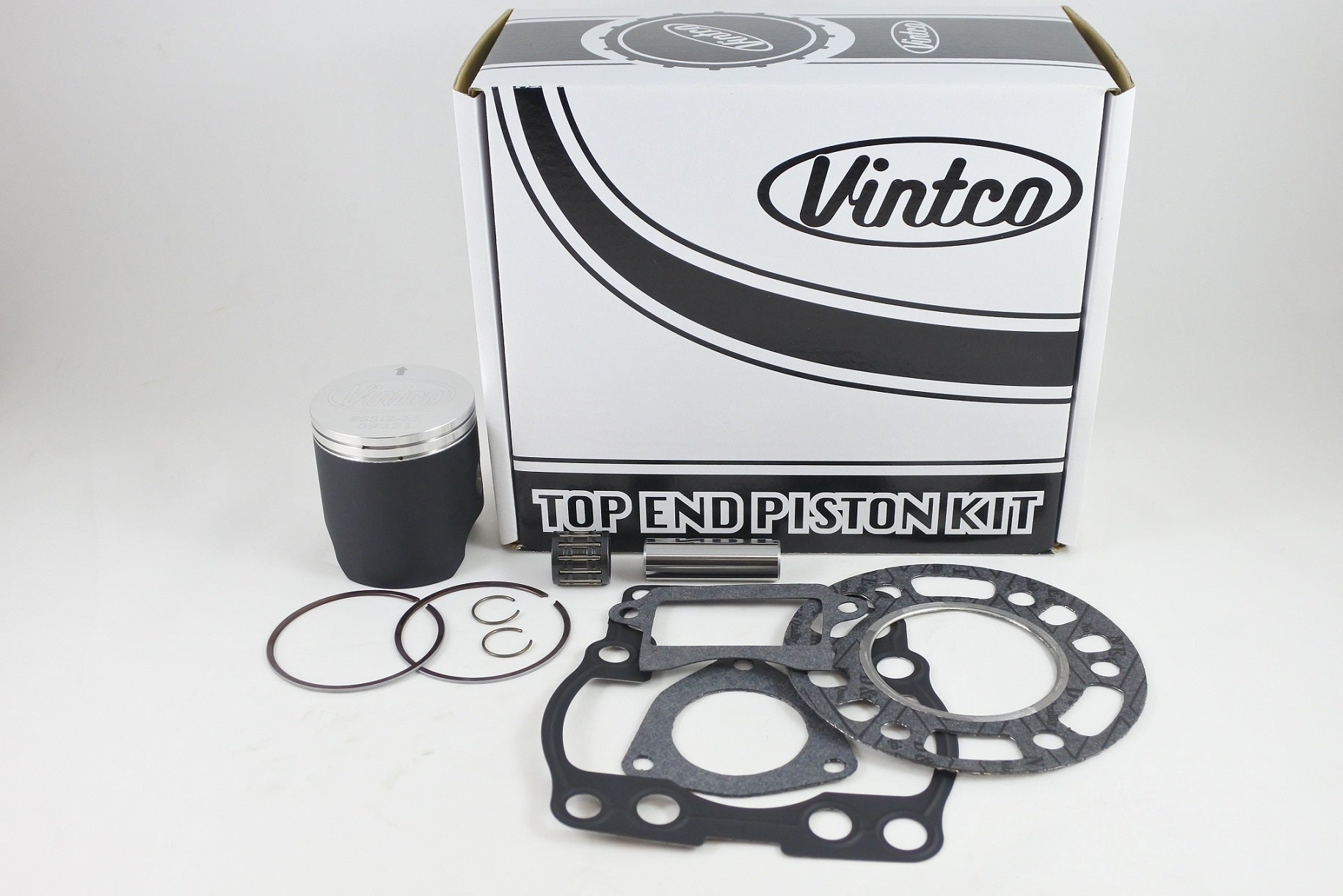

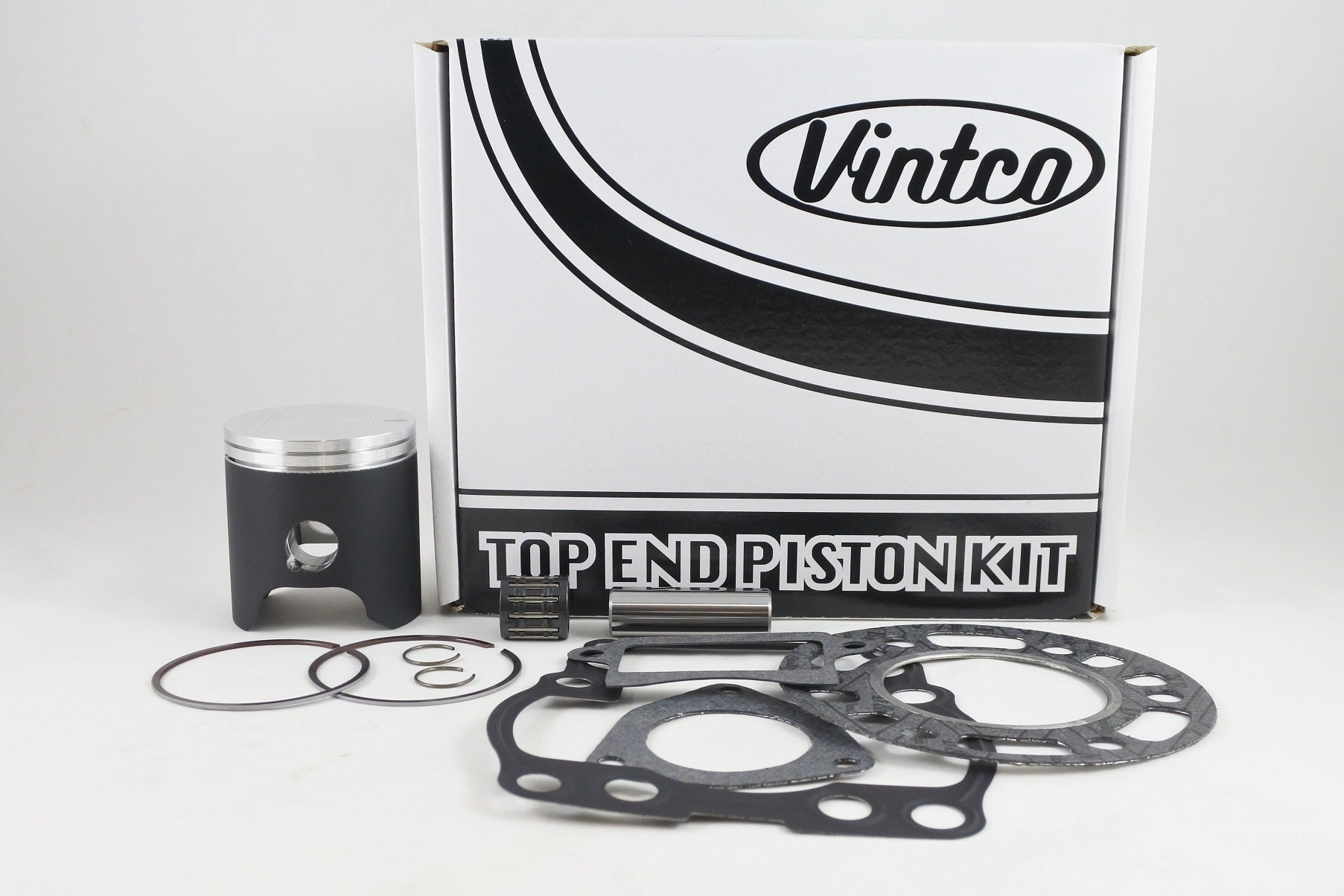

VintCo top end piston kit for the 1985 Suzuki RM125, supplied as a complete rebuild set with piston, rings, pin, clips, a top end bearing, and a full top-end gasket kit for the head, base, reed valve and exhaust pipe. The kit is manufactured using modern materials and production methods for OEM-equivalent fitment and performance, and includes a forged German MoS2-coated piston listed as 54.5 mm, with an actual piston diameter of 54.45 mm, in a +0.5 mm oversize with 0.06 mm clearance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket
• Includes base gasket
• Includes reed valve gasket
• Includes exhaust pipe gasket
• Forged piston with German MoS2 coating for break-in
• Manufactured with modern materials and manufacturing techniques
• OEM-equivalent fitment and performance
• Kit price includes a 10% saving compared to purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS17-0.5
• Listed size: 54.5 mm
• Piston diameter: 54.45 mm
• Oversize: +0.5 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: German MoS2

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14500-H17
• Base gasket: 11241-14501-H17
• Reed valve gasket: 13156-14500-H17
• Exhaust pipe gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022 / 09263-1402

Vehicle Fitments

• 1985 Suzuki RM125
