Top End Piston Kit 85-85 Honda CR 250 66.5mm 0.5mm Over Vintco KTH25-0.5
  • Top End Piston Kit 85-85 Honda CR 250 66.5mm 0.5mm Over Vintco KTH25-0.5
  • Top End Piston Kit 85-85 Honda CR 250 66.5mm 0.5mm Over Vintco KTH25-0.5
  • Top End Piston Kit 85-85 Honda CR 250 66.5mm 0.5mm Over Vintco KTH25-0.5
  • Top End Piston Kit 85-85 Honda CR 250 66.5mm 0.5mm Over Vintco KTH25-0.5
Top End Piston Kit 85-85 Honda CR 250 66.5mm 0.5mm Over Vintco KTH25-0.5

Top End Piston Kit 85-85 Honda CR 250 66.5mm 0.5mm Over Vintco KTH25-0.5

£222.90 GBP
Taxes included. Shipping calculated at checkout.

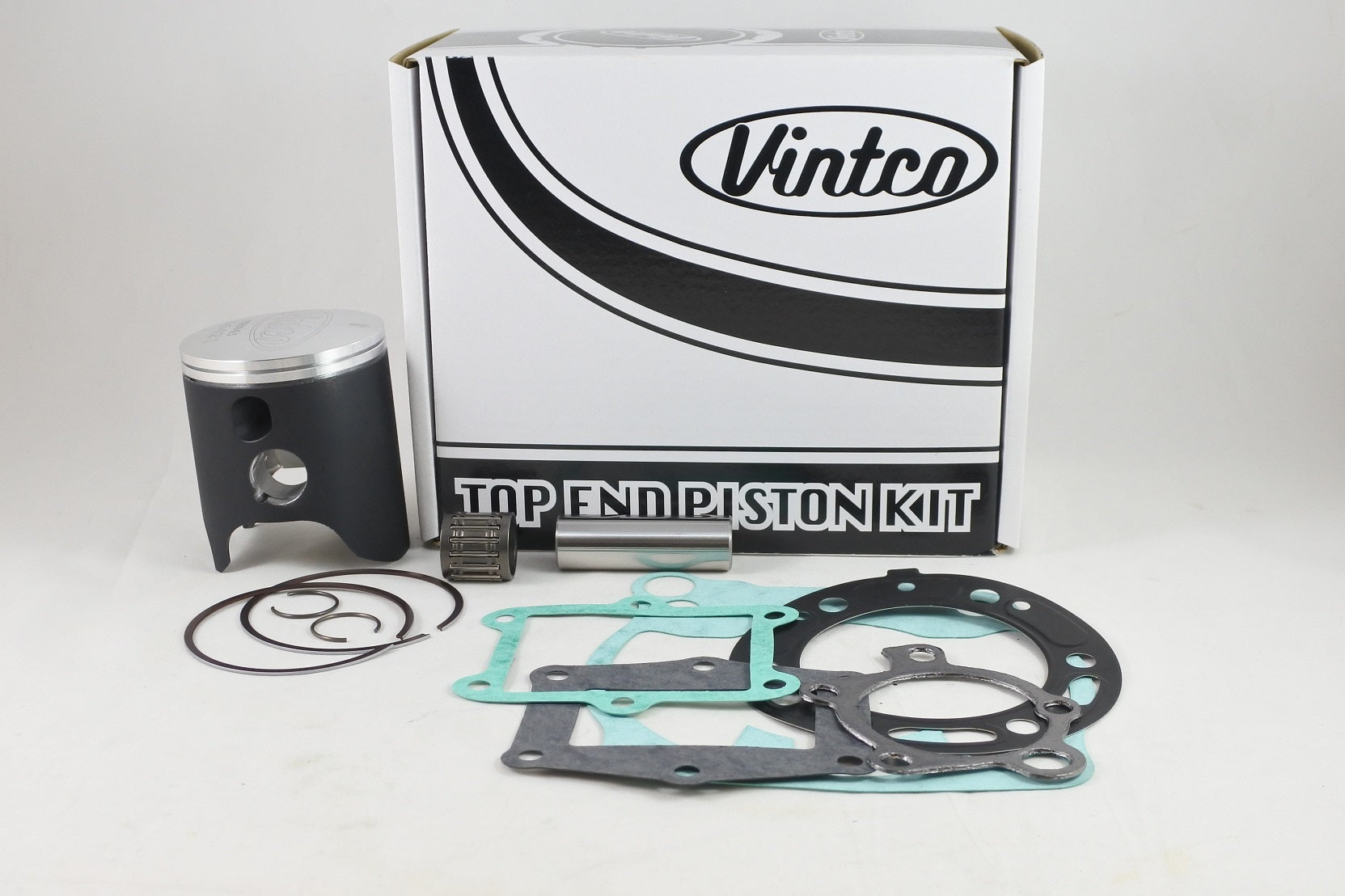

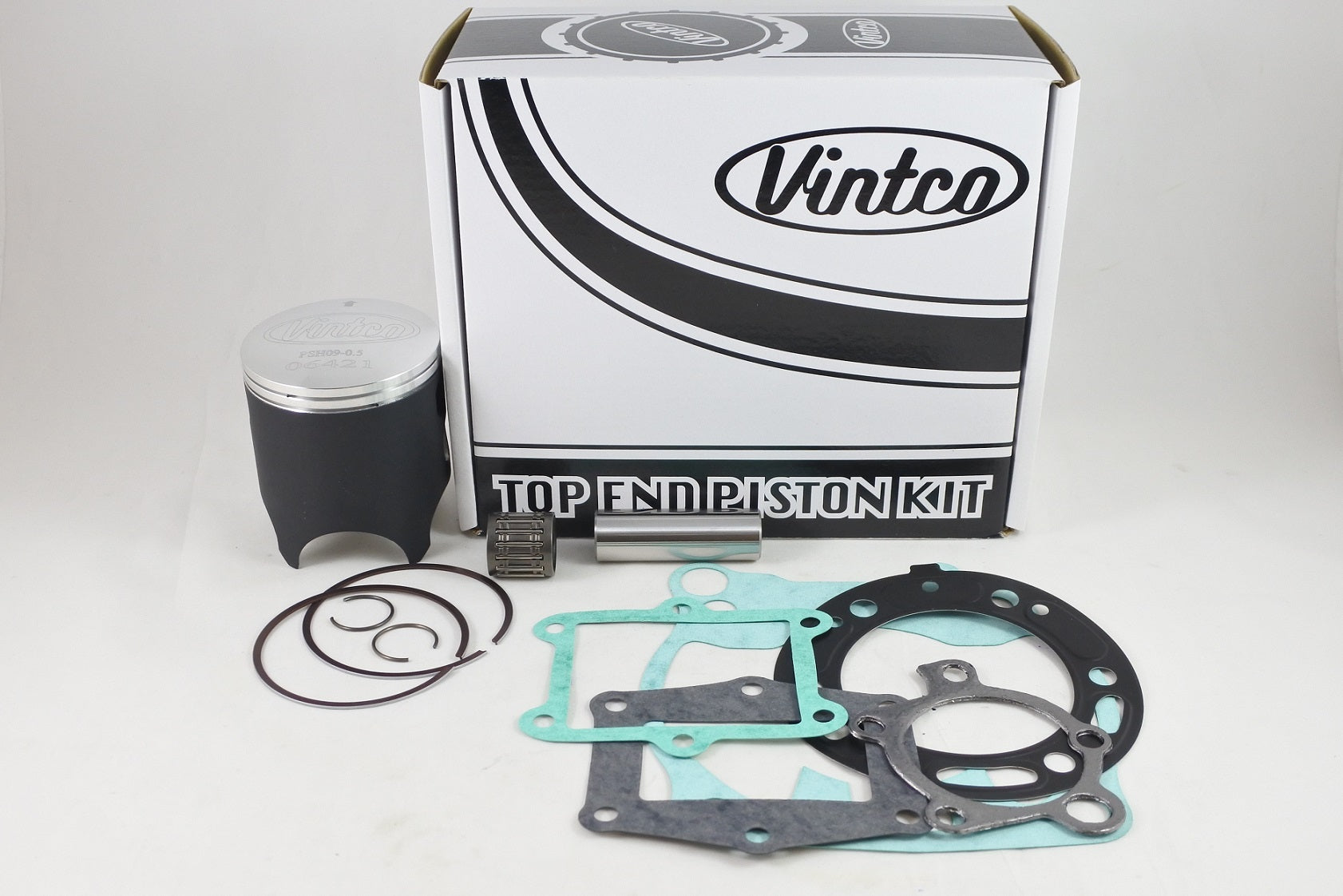

This VintCo top end piston kit is a complete rebuild set for the 1985 Honda CR250. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head gasket, base gasket, intake gaskets and exhaust pipe gasket. The kit is manufactured using modern materials and production methods for OEM-equivalent or better fitment and performance.

Features

  • Complete top end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes full top-end gasket set
  • Designed for 1985 Honda CR250 rebuild applications
  • Kit pricing is 10% lower than purchasing the components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTH25-0.5
  • Product type: Top End Piston Kit
  • Piston type: Forged
  • Country of manufacture: Germany
  • Piston coating: MOS2
  • Nominal size: 66.5 mm
  • Oversize: +0.5 mm
  • Piston diameter: 66.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head gasket: 12254-KS7-881
  • Base gasket: 12191-KS7-880
  • Intake gasket: 14132-KAE-000
  • Intake gasket: 14133-430-306
  • Exhaust pipe gasket: 18291-KA4-770

Vehicle Fitments

  • 1985 Honda CR250
