TOP END PISTON KIT 85-85 HONDA CR 250 65.94mm STANDARD VINTCO KTH25-00
  • TOP END PISTON KIT 85-85 HONDA CR 250 65.94mm STANDARD VINTCO KTH25-00
  • TOP END PISTON KIT 85-85 HONDA CR 250 65.94mm STANDARD VINTCO KTH25-00
  • TOP END PISTON KIT 85-85 HONDA CR 250 65.94mm STANDARD VINTCO KTH25-00
  • TOP END PISTON KIT 85-85 HONDA CR 250 65.94mm STANDARD VINTCO KTH25-00
TOP END PISTON KIT 85-85 HONDA CR 250 65.94mm STANDARD VINTCO KTH25-00

TOP END PISTON KIT 85-85 HONDA CR 250 65.94mm STANDARD VINTCO KTH25-00

£222.90 GBP
Taxes included. Shipping calculated at checkout.

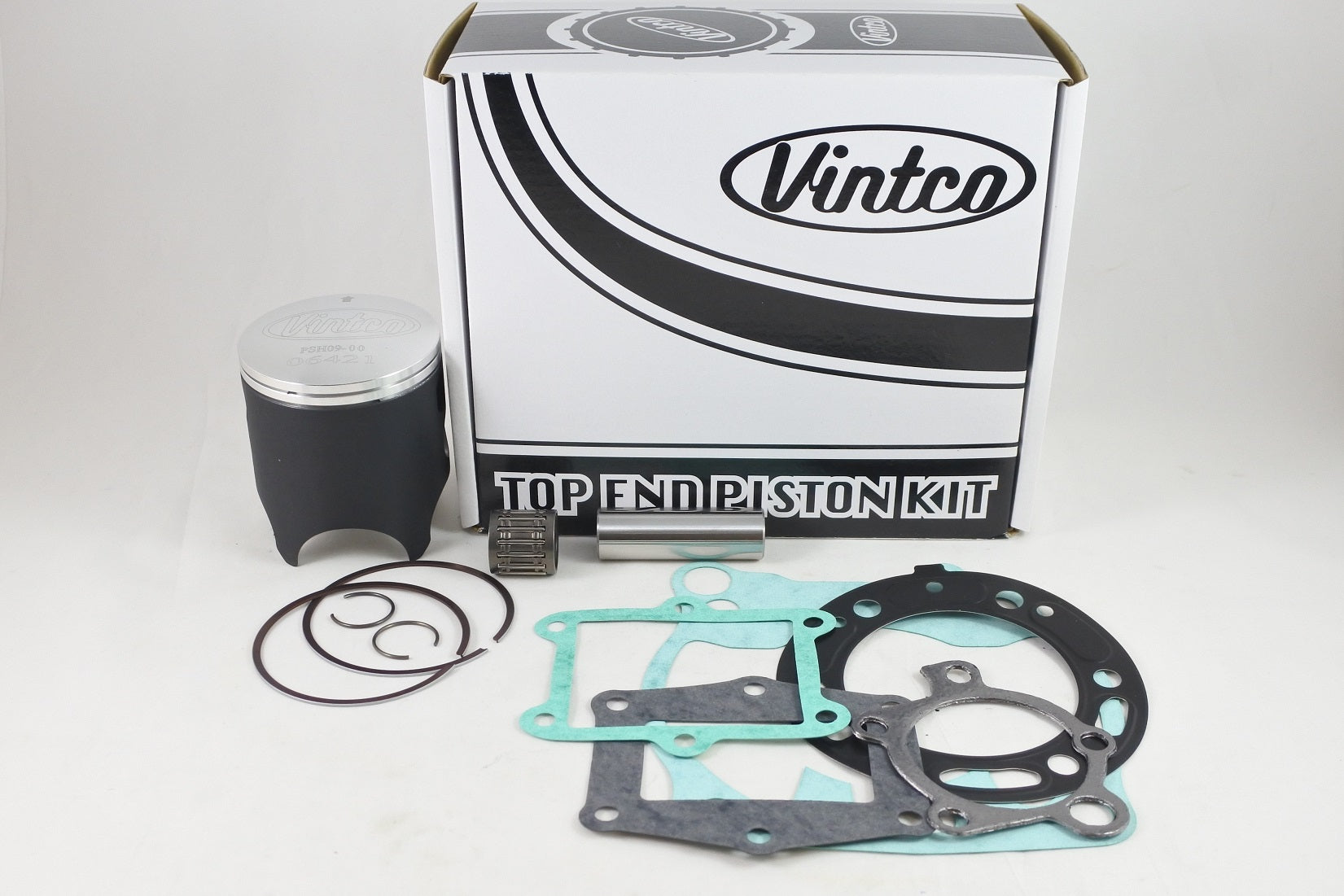

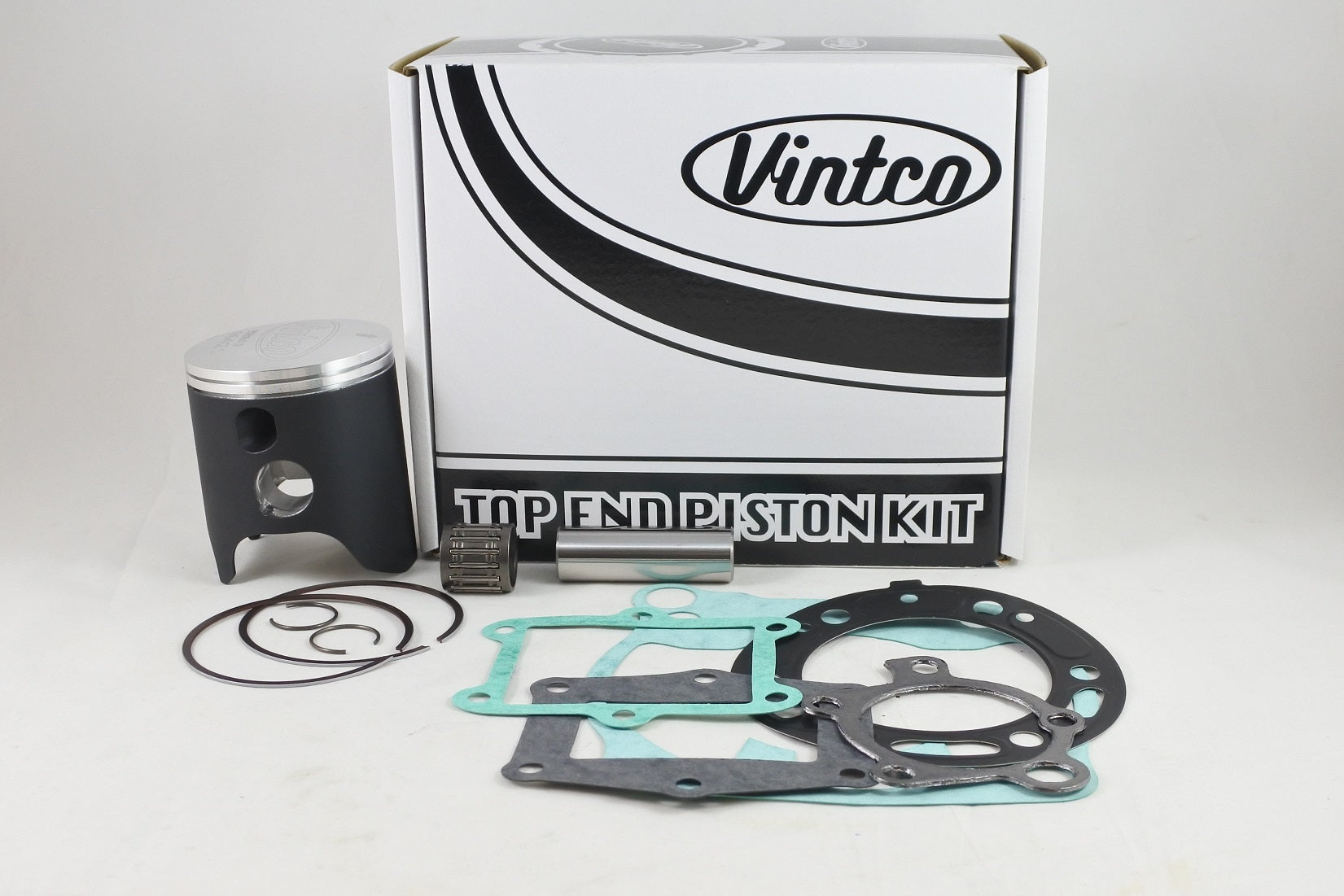

This top end piston kit is for the 1985 Honda CR250 and includes the components required for a complete top-end rebuild in standard 65.94 mm size. The kit contains a VintCo piston kit with piston, rings, pin and clips, along with a top end bearing and a full top-end gasket set for direct replacement fitment.

Features

  • Complete top end rebuild kit for the 1985 Honda CR250
  • Includes piston, rings, pin and clips
  • Includes top end bearing
  • Includes full top-end gasket kit
  • Includes head gasket
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust gasket
  • Intended to provide OEM-equivalent fitment and performance
  • Kit pricing is 10% lower than purchasing the components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTH25-00
  • Standard piston size: 65.94 mm
  • Piston clearance: 0.06 mm
  • Forged piston
  • Piston made in Germany
  • MOS2 coated for break-in

Cross-Reference OEM Part Numbers

  • Head Gasket: 12254-KS7-881
  • Base Gasket: 12191-KS7-880
  • Intake Gasket: 14132-KAE-000
  • Intake Gasket: 14133-430-306
  • Exhaust Pipe Gasket: 18291-KA4-770

Vehicle Fitments

  • 1985 Honda CR250
