Top End Piston Kit 85-85 Honda CR 125 55mm 1.0mm Over Vintco KTH16-1.0

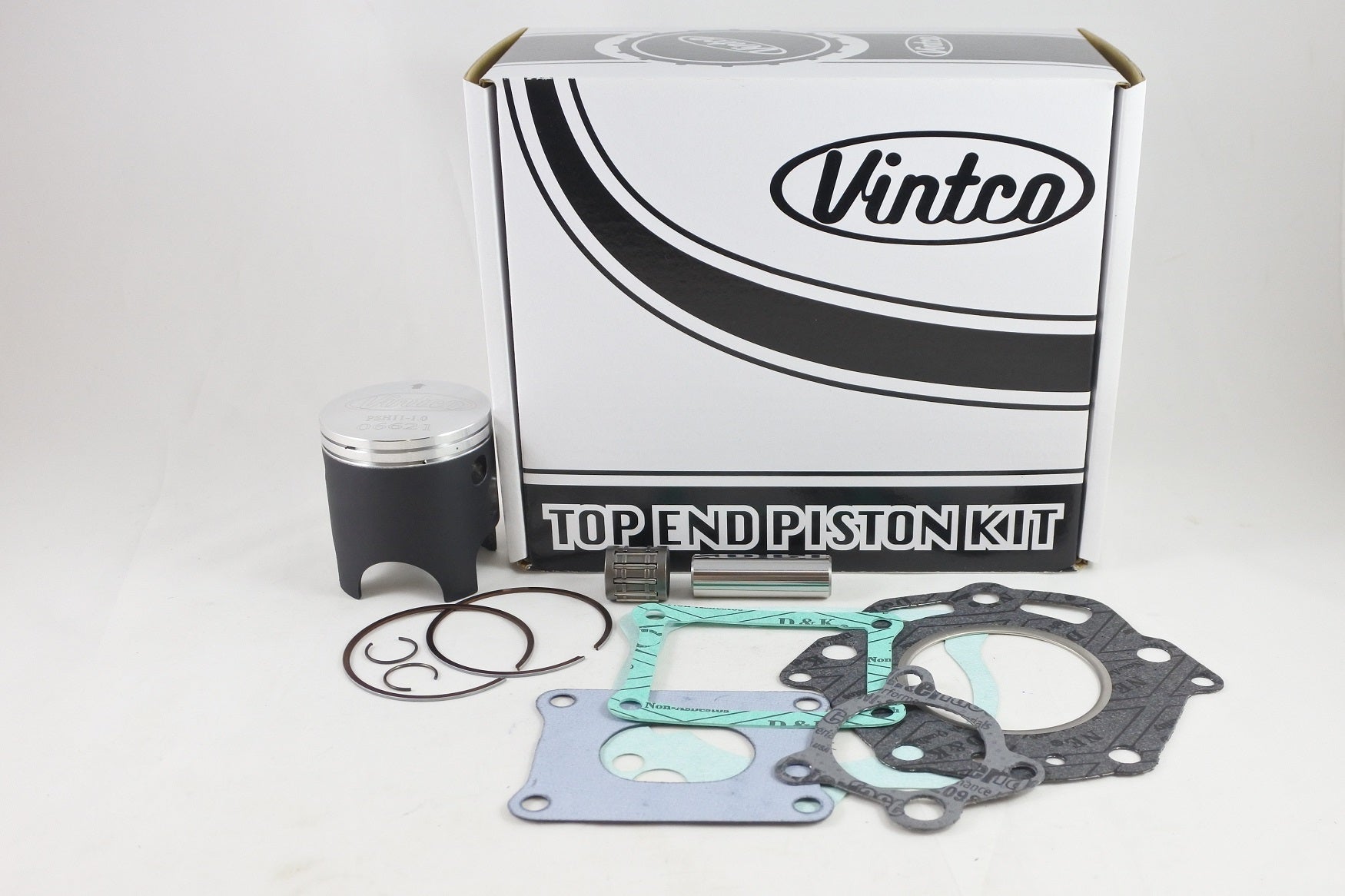

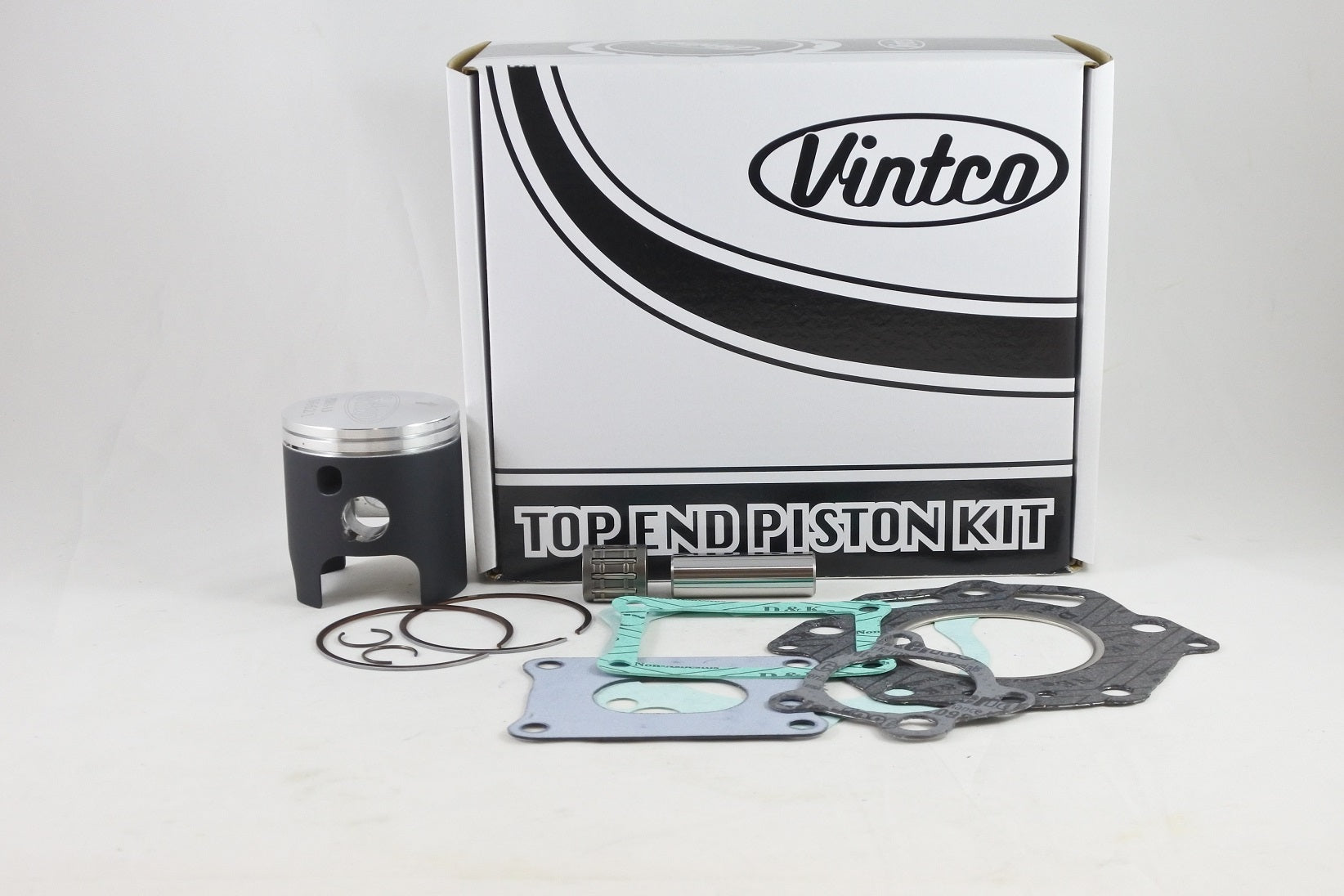

This VintCo top end piston kit is a complete rebuild set for the 1985 Honda CR125. It includes the piston kit components required for a top end rebuild—piston, rings, pin and clips—along with a wrist pin bearing and a full top-end gasket kit comprising the head gasket, base gasket, intake gaskets and exhaust pipe gasket. This kit is supplied for the 55 mm, +1.0 mm over-size application and is intended to provide OEM-reference fitment for the specified model.

Features

• Complete top end rebuild kit for the 1985 Honda CR125
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
• Manufactured using modern materials and production methods
• Designed for OEM-reference fitment
• Kit price includes a 10% saving compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH16-1.0
• Product type: Top End Piston Kit
• Nominal piston size: 55 mm
• Actual piston diameter: 54.94 mm
• Oversize: +1.0 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-307
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18359-KA3-306

Vehicle Fitments

• 1985 Honda CR125
