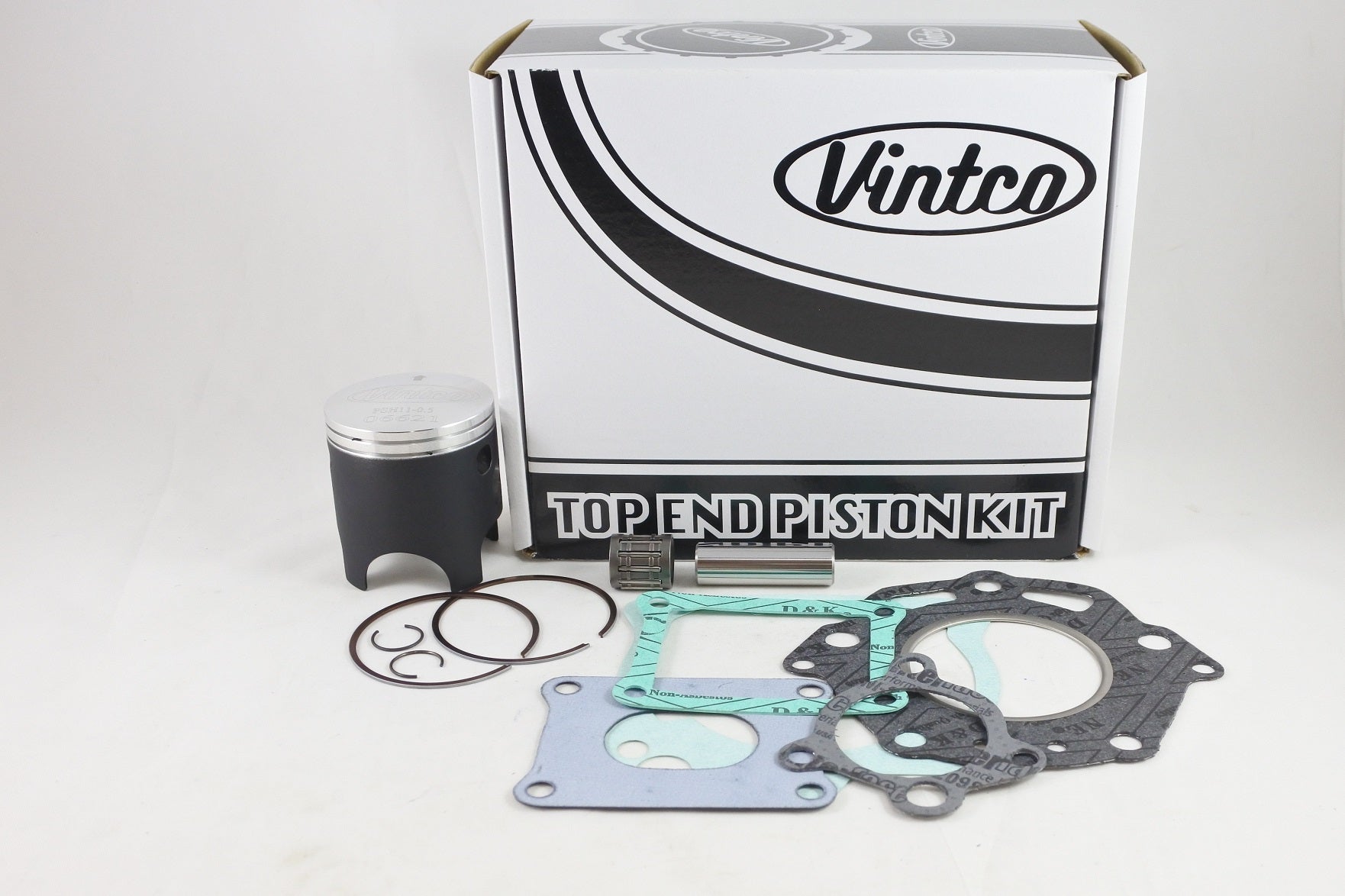

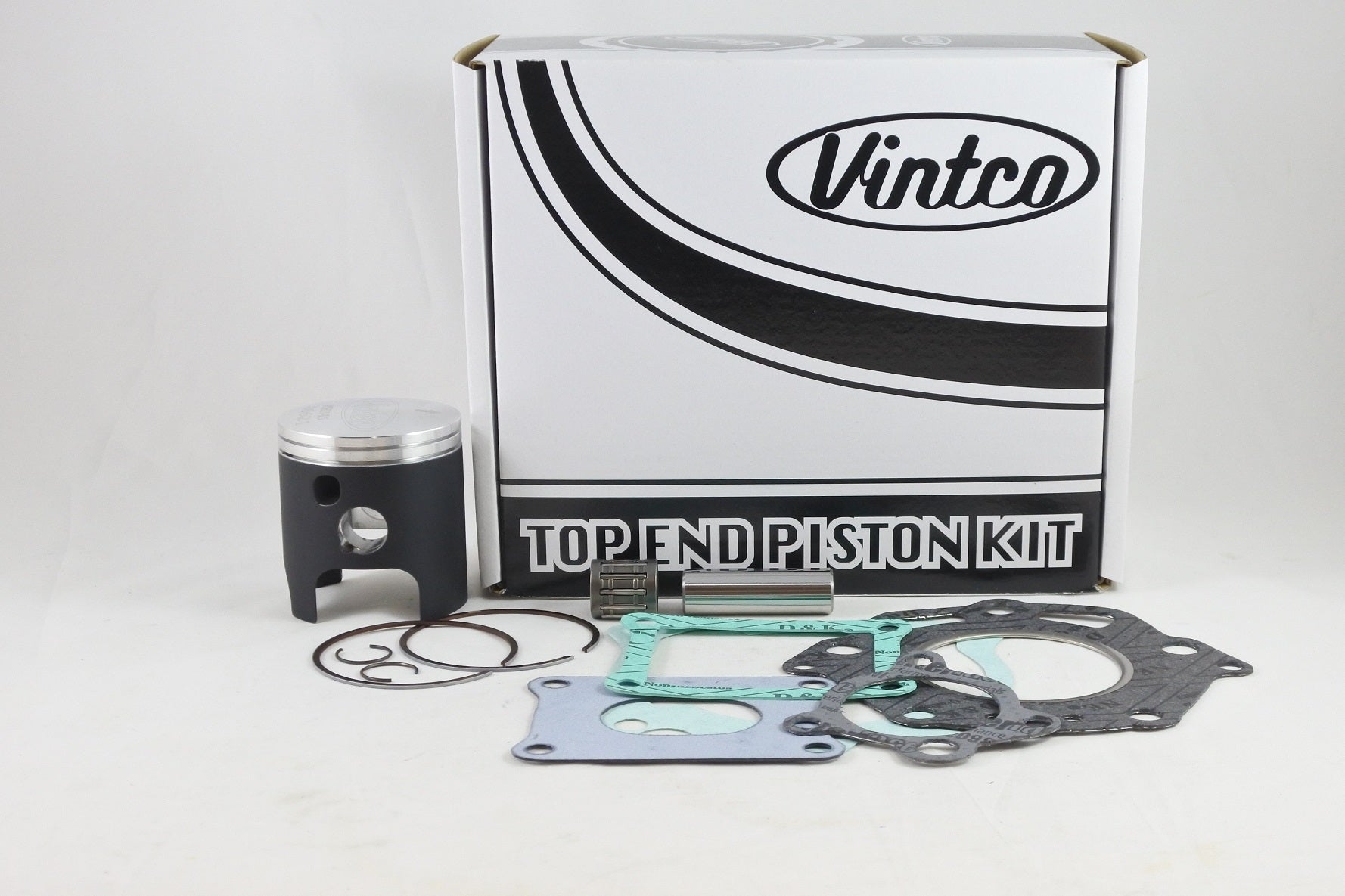

TOP END PISTON KIT 85-85 HONDA CR 125 54.5mm OVER VINTCO KTH16-0.5

VintCo top end piston kit for the 1985 Honda CR125, supplied as a complete rebuild set with a forged piston assembly, wrist pin bearing and a full top-end gasket kit. Intended for 54.5 mm (+0.5 mm oversize) applications, the kit uses modern materials and manufacturing methods to provide OEM-equivalent fitment and performance, and the kit price includes a 10% reduction compared with purchasing the components individually. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gaskets
• Supplied with exhaust pipe gasket
• Intended to simplify top-end rebuild work
• Produced for OEM-equivalent fitment and performance
• Forged piston with MOS2 coating for break-in

Specifications

• VintCo Part Number: KTH16-0.5
• Piston size: 54.44 mm
• Oversize: +0.5 mm over
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Coating: MOS2

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-307
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18359-KA3-306

Vehicle Fitments

• 1985 Honda CR125
