Top End Piston Kit 84-86 Yamaha It 200 67mm 1.0mm Over Vintco KTY34-1.0
  • Top End Piston Kit 84-86 Yamaha It 200 67mm 1.0mm Over Vintco KTY34-1.0
  • Top End Piston Kit 84-86 Yamaha It 200 67mm 1.0mm Over Vintco KTY34-1.0
  • Top End Piston Kit 84-86 Yamaha It 200 67mm 1.0mm Over Vintco KTY34-1.0
  • Top End Piston Kit 84-86 Yamaha It 200 67mm 1.0mm Over Vintco KTY34-1.0
Top End Piston Kit 84-86 Yamaha It 200 67mm 1.0mm Over Vintco KTY34-1.0

Top End Piston Kit 84-86 Yamaha It 200 67mm 1.0mm Over Vintco KTY34-1.0

£238.95 GBP
Taxes included. Shipping calculated at checkout.

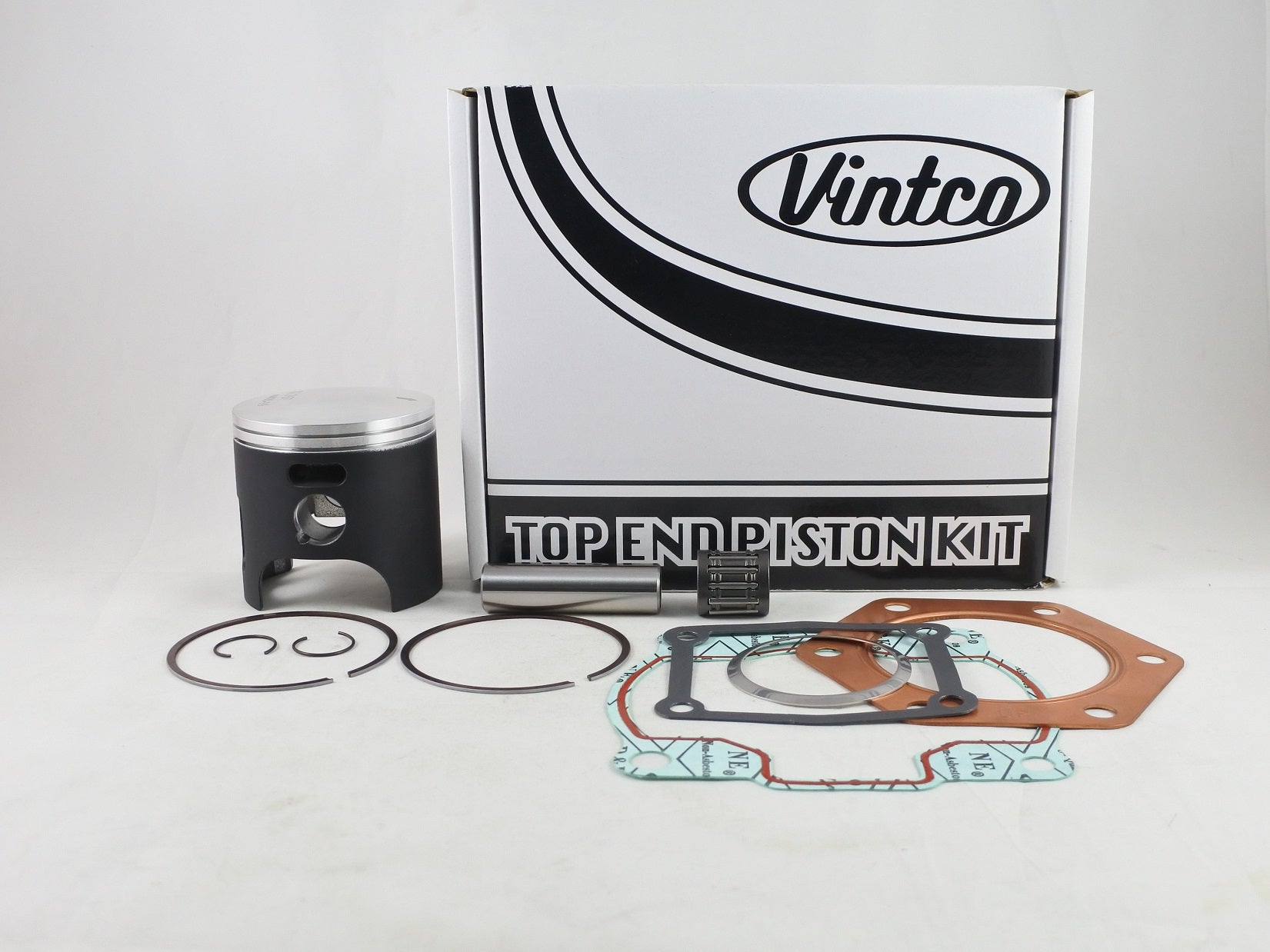

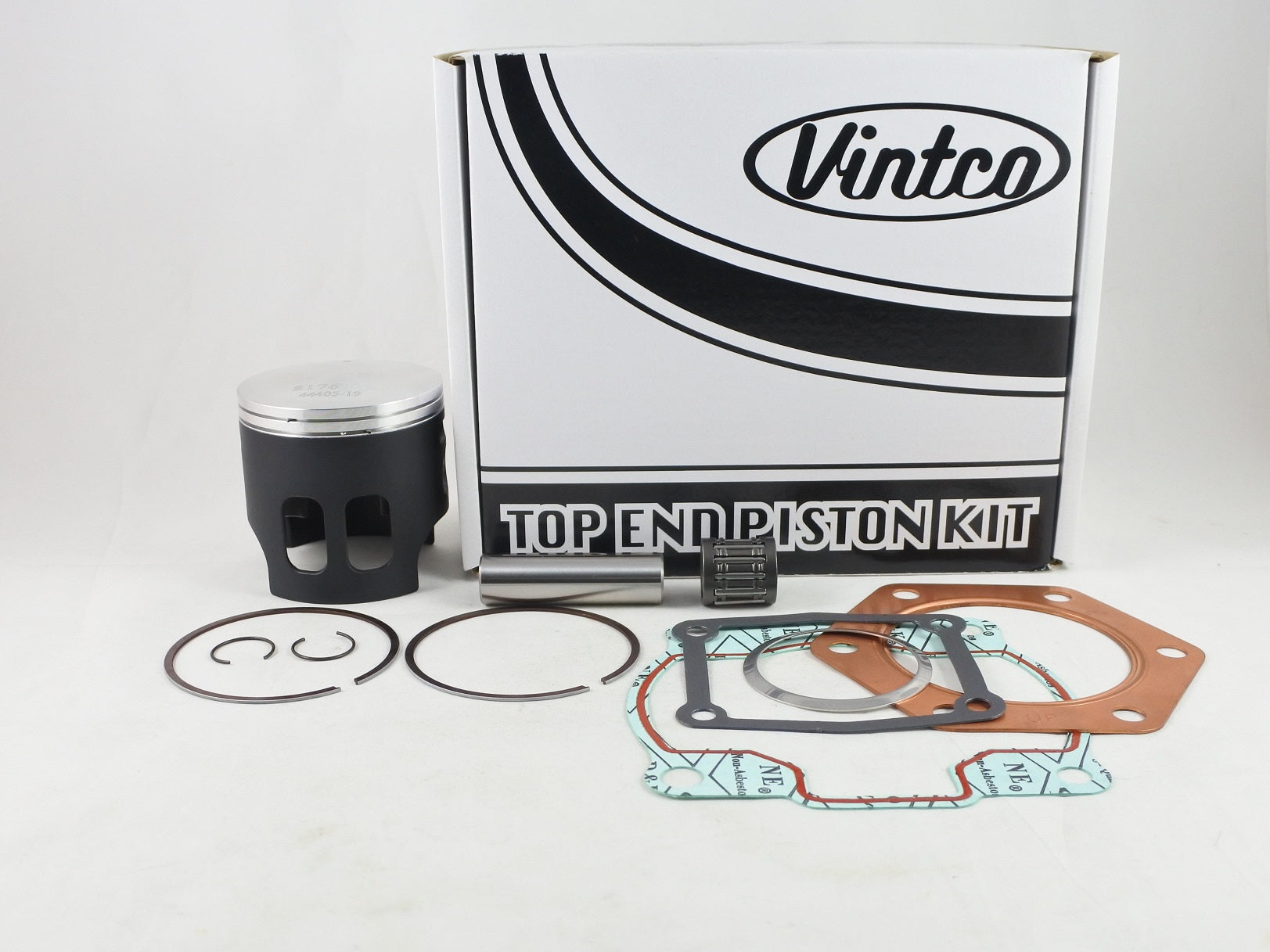

This top end piston kit is designed for 1984-1986 Yamaha IT200 models and includes a forged piston made in Germany with an MOS2 break-in coating, along with the required top end gaskets and a wrist pin bearing. The kit is supplied in a 67 mm, 1.0 mm oversize configuration for top end rebuilding.

Features

  • Complete top end piston kit
  • Forged piston
  • Made in Germany
  • MOS2 coating for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY34-1.0
  • Piston size: 67 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 66.94 mm
  • Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 43G-11181-01-00
  • Cylinder base gasket: 43G-11351-10-00
  • Intake gasket: 39W-13621-01-00
  • Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

  • 1984 Yamaha IT200
  • 1985 Yamaha IT200
  • 1986 Yamaha IT200
