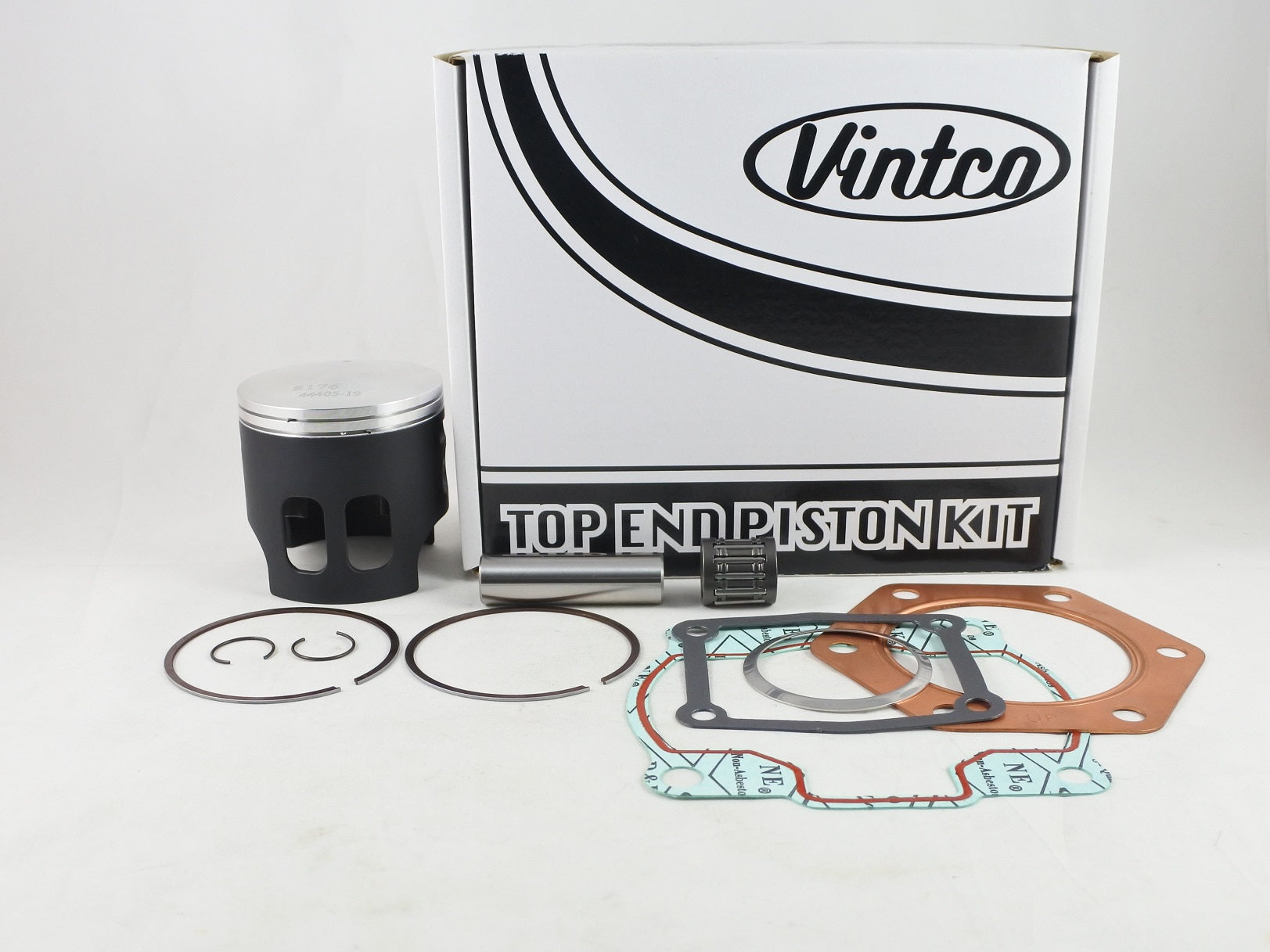

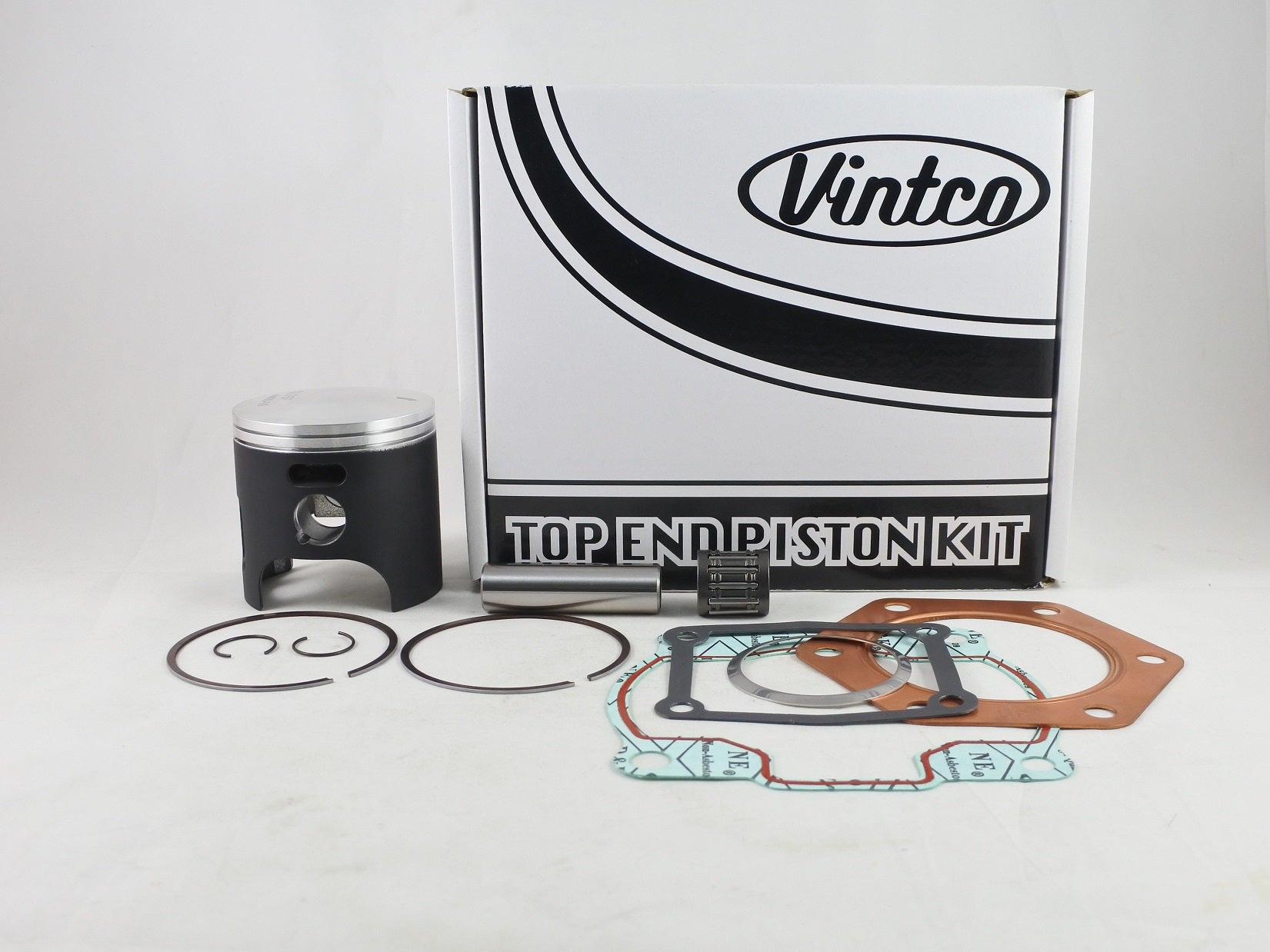

TOP END PISTON KIT 84-86 YAMAHA IT 200 66.5mm 0.5mm OVER VINTCO KTY34-0.5

Top end piston kit for 1984–1986 Yamaha IT200 models, supplied with a 66.5 mm piston in 0.5 mm oversize together with the required top-end gaskets and a wrist pin bearing. The kit includes a forged piston manufactured in Germany with an MOS2 coating for break-in, and the kit price includes a 10% discount compared with purchasing the individual items separately.

Features

• Top end piston kit for Yamaha IT200 models
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• MOS2-coated piston for break-in
• Kit price includes 10% discount over individual items

Specifications

• VintCo Part Number: KTY34-0.5
• Piston size: 66.5 mm
• Oversize: 0.5 mm over
• Piston measurement: 66.44 mm
• Clearance: 0.06 mm
• Forged piston
• Manufactured in Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 43G-11181-01-00
• Cylinder Base Gasket: 43G-11351-10-00
• Intake Gasket: 39W-13621-01-00
• Exhaust Pipe Gasket: 3R6-14613-01-00

Vehicle Fitments

• 1984 Yamaha IT200
• 1985 Yamaha IT200
• 1986 Yamaha IT200
