TOP END PISTON KIT 84-84 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY59-0.5
  • TOP END PISTON KIT 84-84 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY59-0.5
  • TOP END PISTON KIT 84-84 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY59-0.5
  • TOP END PISTON KIT 84-84 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY59-0.5
  • TOP END PISTON KIT 84-84 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY59-0.5
TOP END PISTON KIT 84-84 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY59-0.5

TOP END PISTON KIT 84-84 YAMAHA YZ 80 48.5mm 0.5mm OVER VINTCO KTY59-0.5

£142.56 GBP
Taxes included. Shipping calculated at checkout.

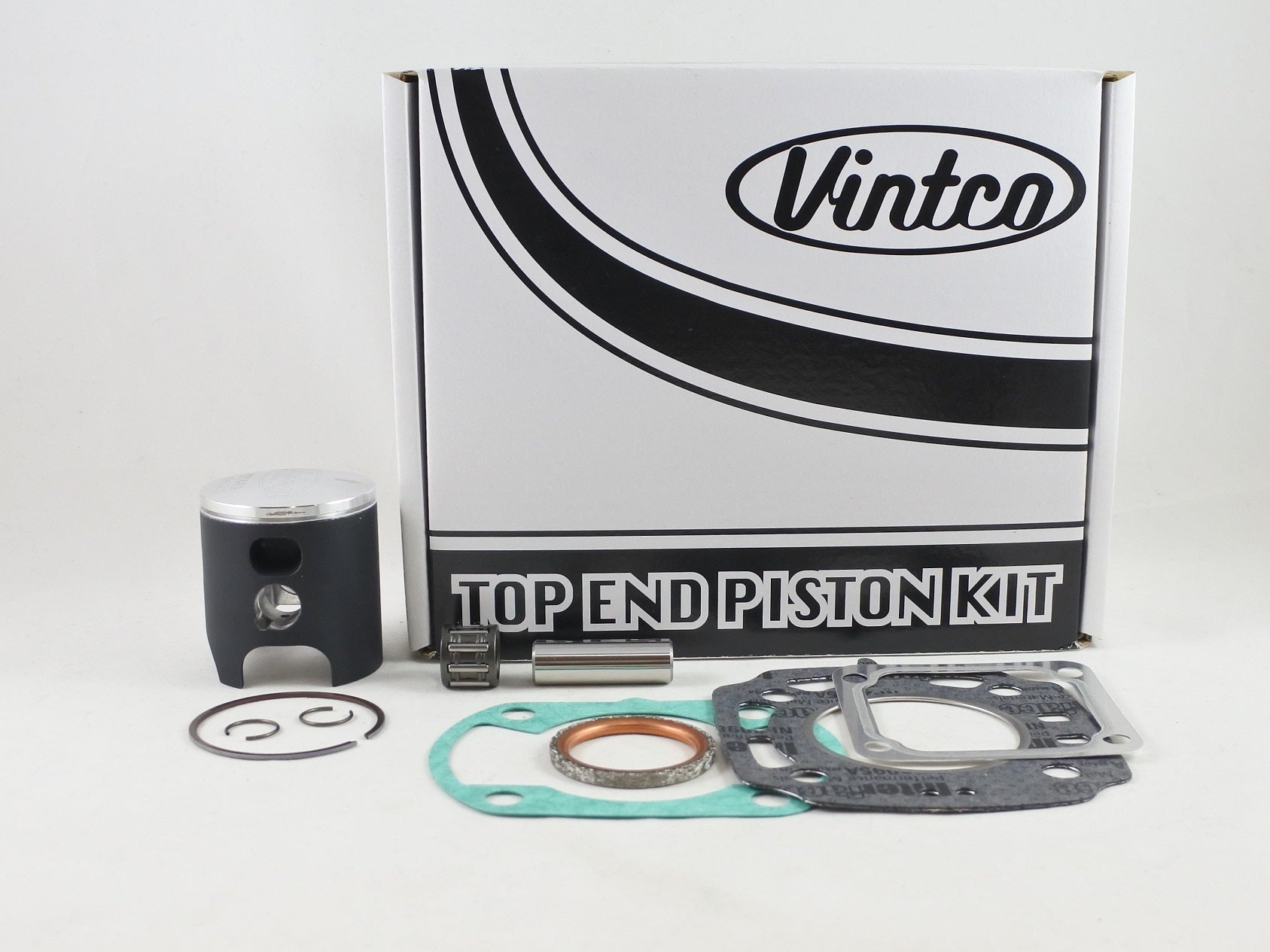

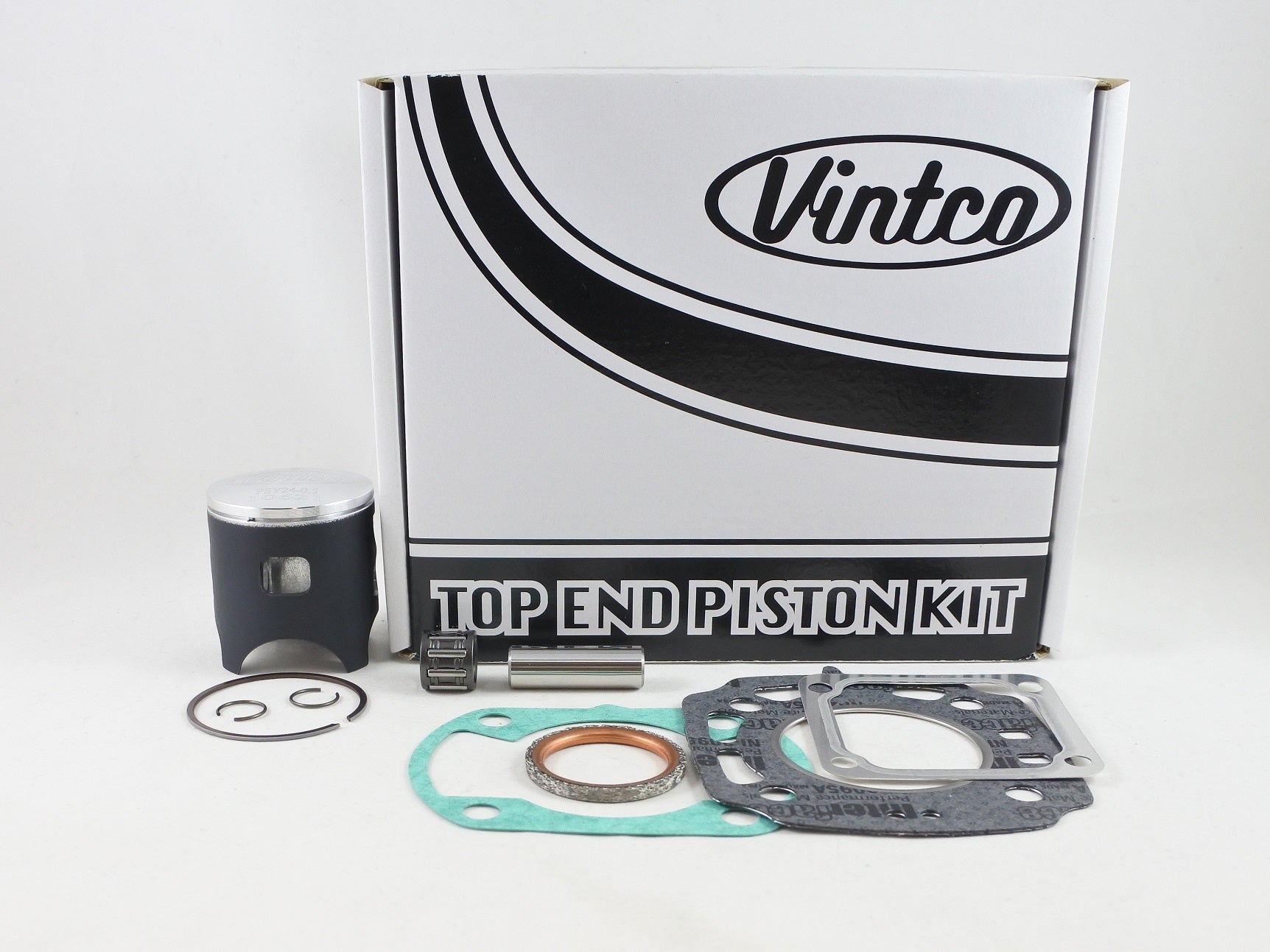

VintCo top end piston kit KTY59-0.5 is a 0.5 mm oversize rebuild kit for the 1984 Yamaha YZ80. It includes a forged piston with MOS2 break-in coating, cylinder head, cylinder base, reed valve and exhaust pipe gaskets, and a wrist pin bearing. The kit is priced at a 10% discount compared with purchasing the components individually.

Features

  • Complete top-end kit for rebuild work
  • Forged piston included
  • MOS2 coating for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit priced at 10% less than the individual items

Specifications

  • VintCo Part Number: KTY59-0.5
  • Piston size: 48.5 mm
  • Oversize: 0.5 mm over
  • Piston measurement: 48.45 mm
  • Clearance: 0.05 mm
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 58T-11181-01-00
  • Cylinder Base Gasket: 4V0-11351-10-00
  • Reed Valve Gasket: 39K-13621-01-00
  • Exhaust Pipe Gasket: 4BR-14613-00-00

Vehicle Fitments

  • 1984 Yamaha YZ80
