TOP END PISTON KIT 84-84 YAMAHA YZ 125 57mm 1.0mm OVER VINTCO KTY65-1.0

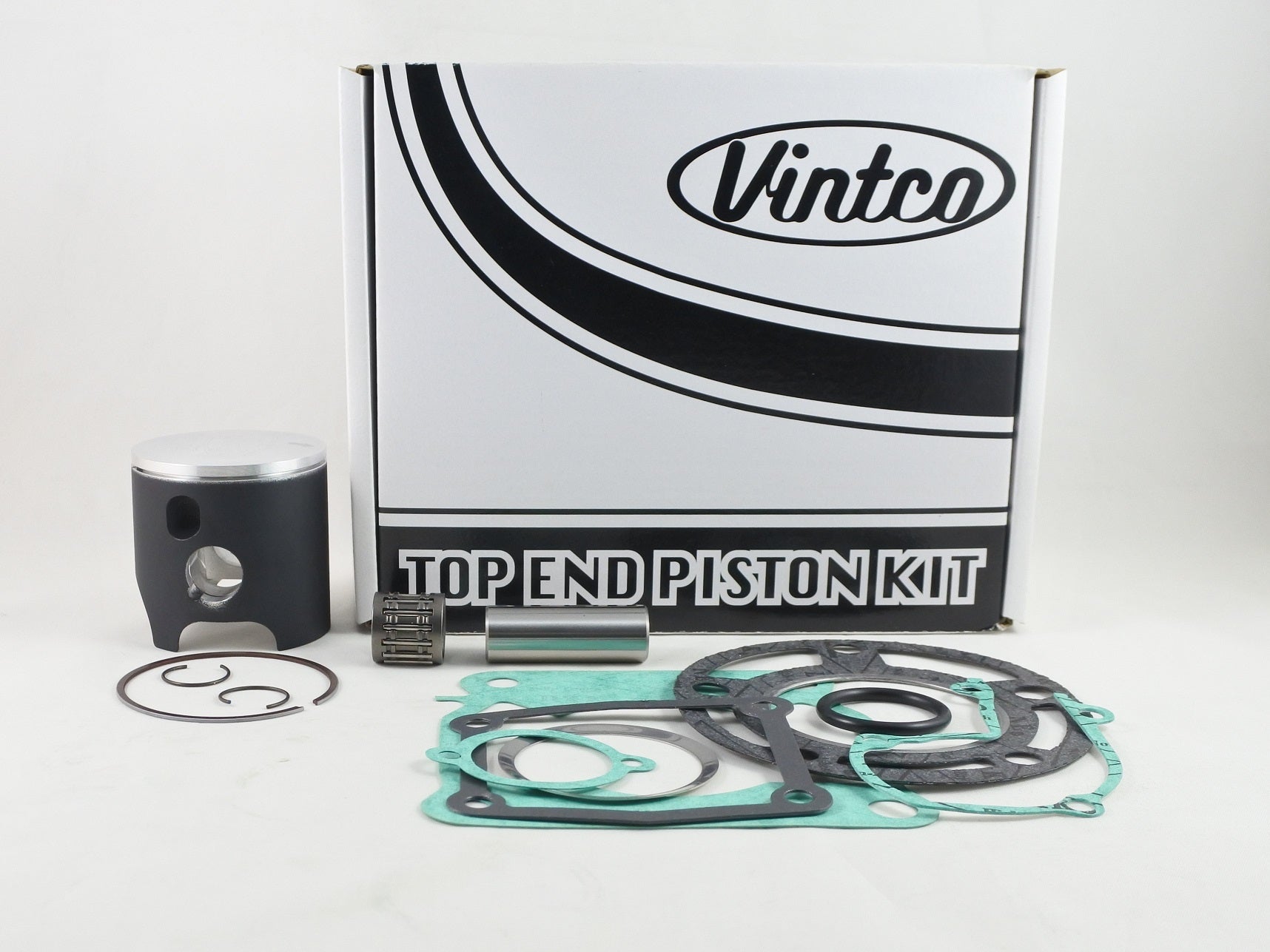

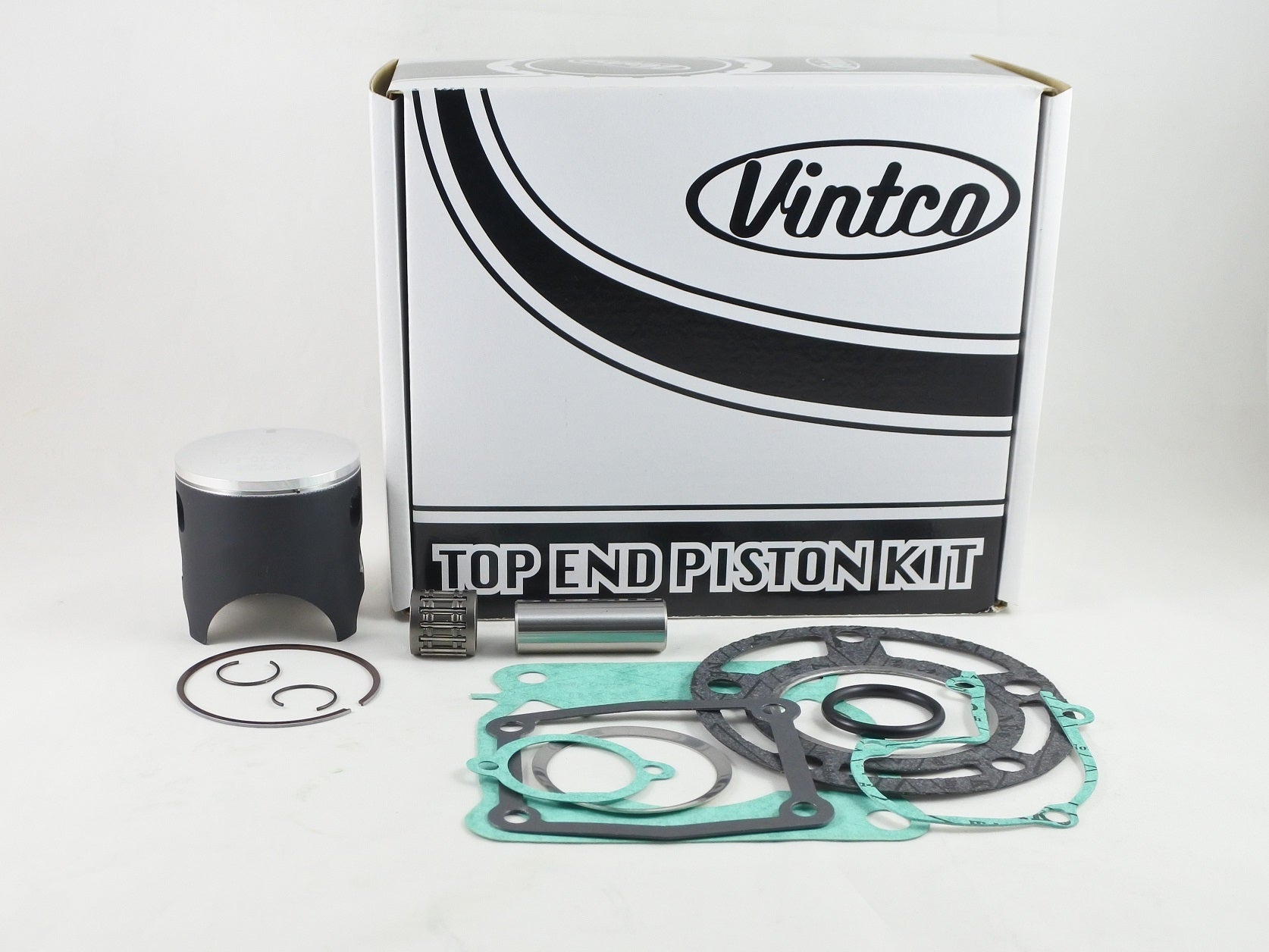

VintCo KTY65-1.0 is a top end piston kit for the 1984 Yamaha YZ125, supplied with a forged piston manufactured in Germany and MOS2 coated for running-in. The kit includes a 57 mm piston in 1.0 mm oversize, together with the required gaskets, O-ring and wrist pin bearing for top-end service. Kit pricing reflects a 10% reduction compared with purchasing the included items separately.

Features

• Complete top end piston kit
• Includes piston, wrist pin bearing and sealing components
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes holder gasket
• Includes O-ring
• Includes YPVS housing gasket

Specifications

• VintCo Part Number: KTY65-1.0
• Piston size: 57 mm
• Oversize: 1.0 mm over
• Standard size reference: 56.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 55Y-11181-01-00
• Cylinder Base Gasket: 24X-11351-01-00
• Intake Gasket: 39W-13621-01-00
• Exhaust Pipe Gasket: 3R3-14613-00-00
• Holder Gasket: 5X4-1131N-10-00
• O-Ring: 93210-270A8-00
• YPVS Housing Gasket: 5X4-11993-01-00

Vehicle Fitments

• 1984 Yamaha YZ125
