TOP END PISTON KIT 84-84 YAMAHA YZ 125 56mm STANDARD VINTCO KTY65-00

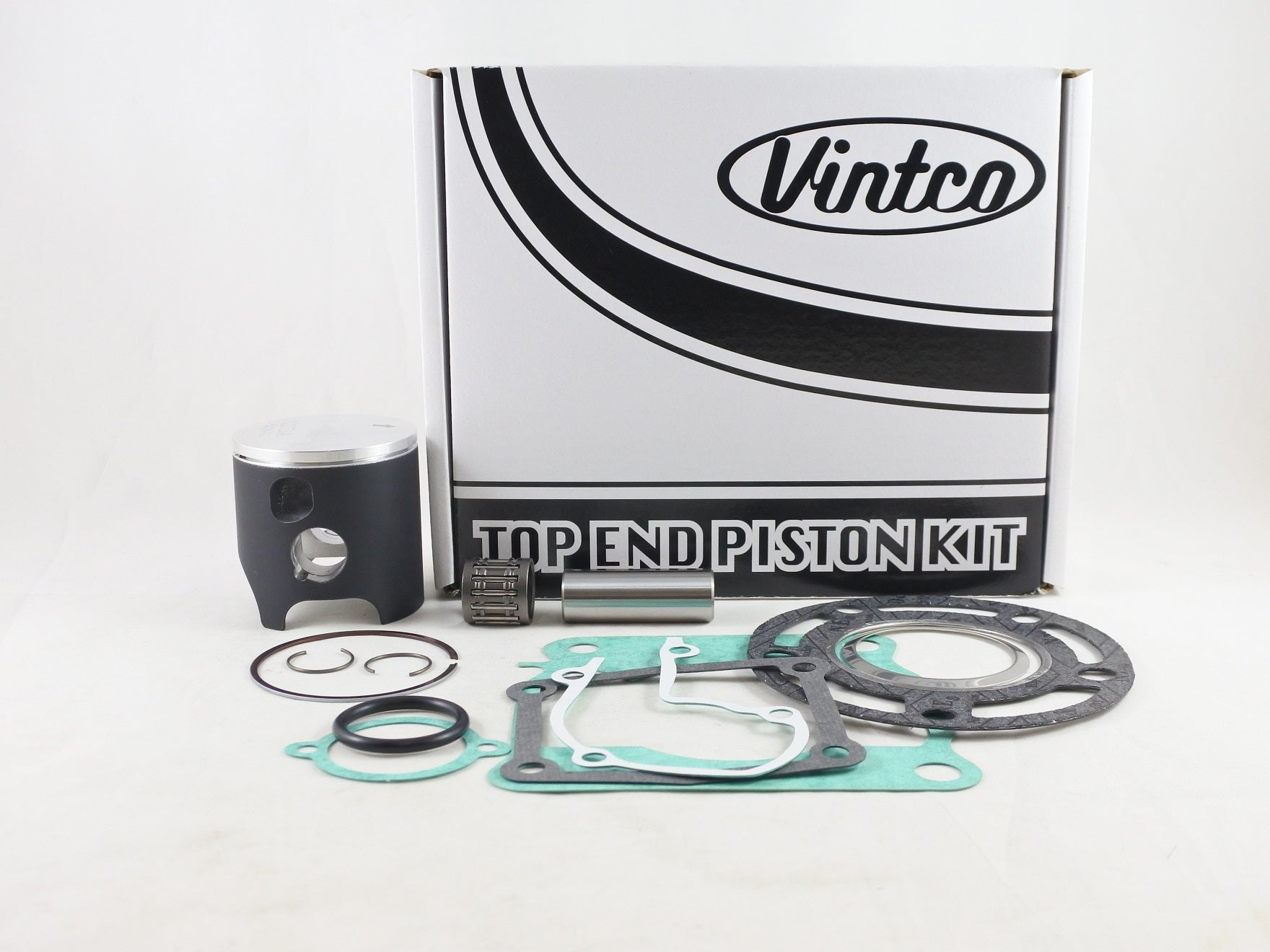

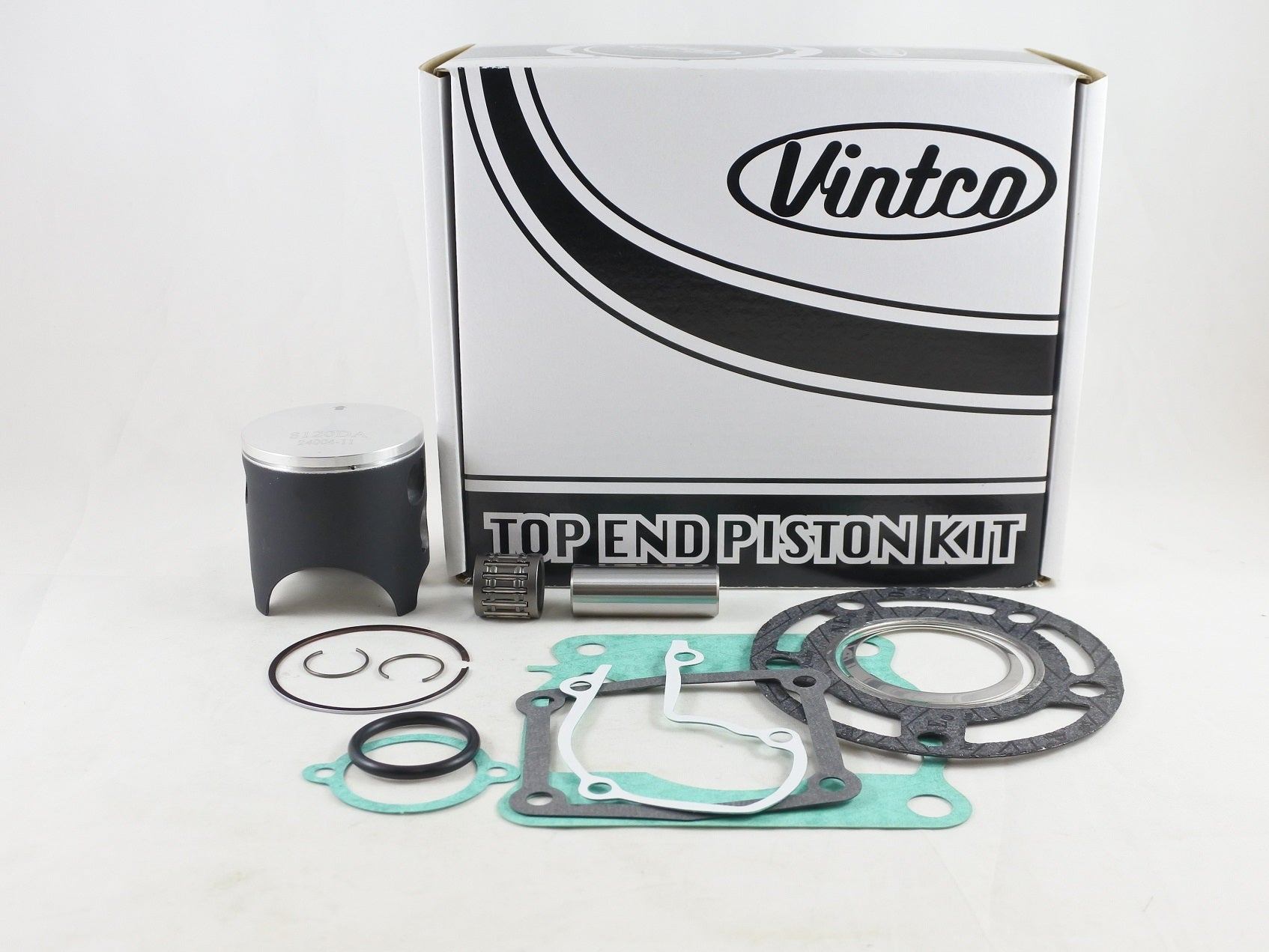

Top end piston kit for the 1984 Yamaha YZ125, supplied in standard 56 mm size with a forged piston manufactured in Germany, MOS2 coating for break-in, a wrist pin bearing, and the required top-end gaskets and seals. Kit pricing includes a 10% discount compared with purchasing the items individually.

Features

• Complete top end piston kit for the 1984 Yamaha YZ125
• Includes forged piston with break-in coating
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes holder gasket
• Includes O-ring
• Includes YPVS housing gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY65-00
• Standard size: 56 mm
• Piston diameter: 55.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 55Y-11181-01-00
• Cylinder Base Gasket: 24X-11351-01-00
• Intake Gasket: 39W-13621-01-00
• Exhaust Pipe Gasket: 3R3-14613-00-00
• Holder Gasket: 5X4-1131N-10-00
• O-Ring: 93210-270A8-00
• YPVS Housing Gasket: 5X4-11993-01-00

Vehicle Fitments

• 1984 Yamaha YZ125
