TOP END PISTON KIT 84-84 HONDA CR 500 90.5mm 1.5mm OVER VINTCO KTH29-1.5

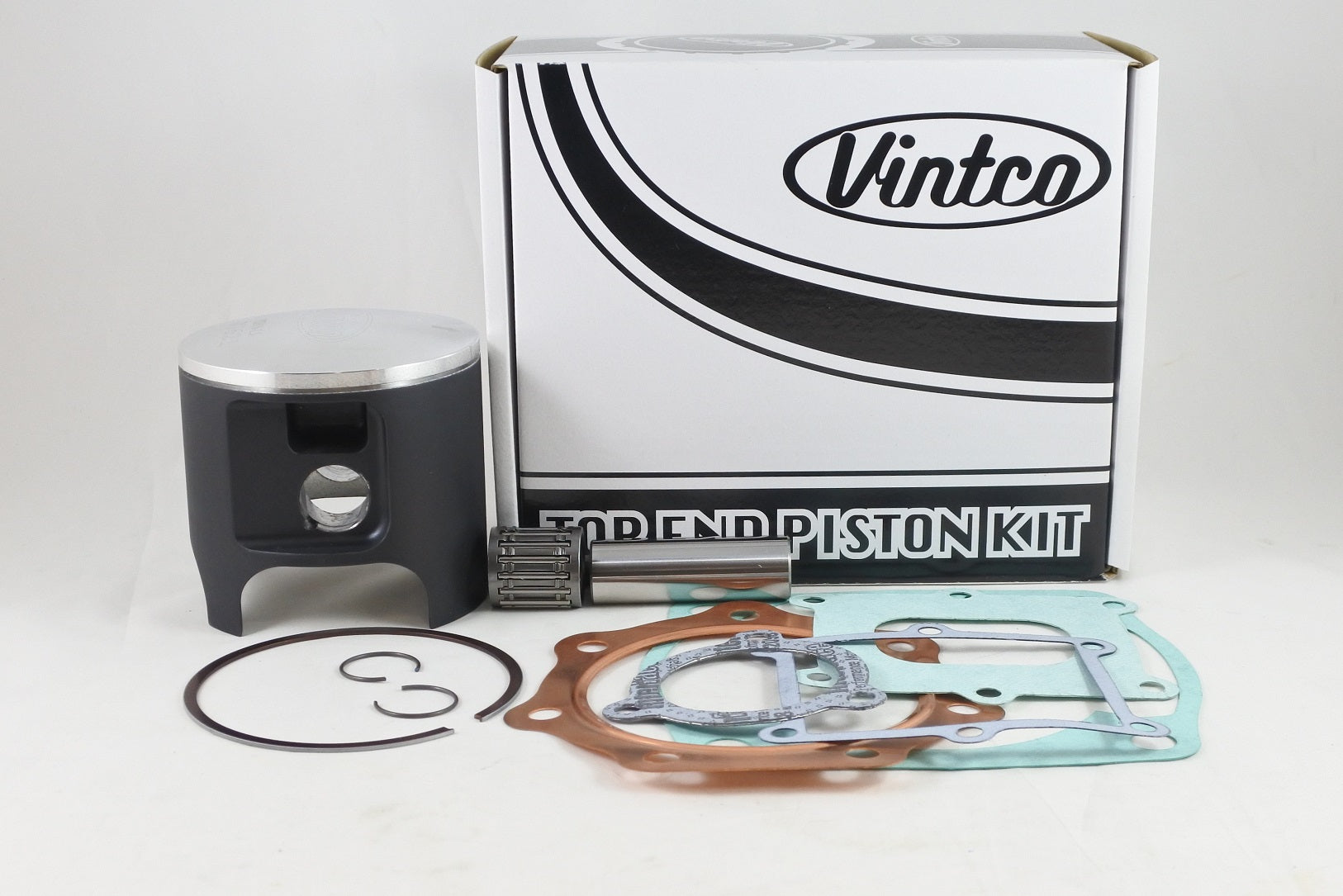

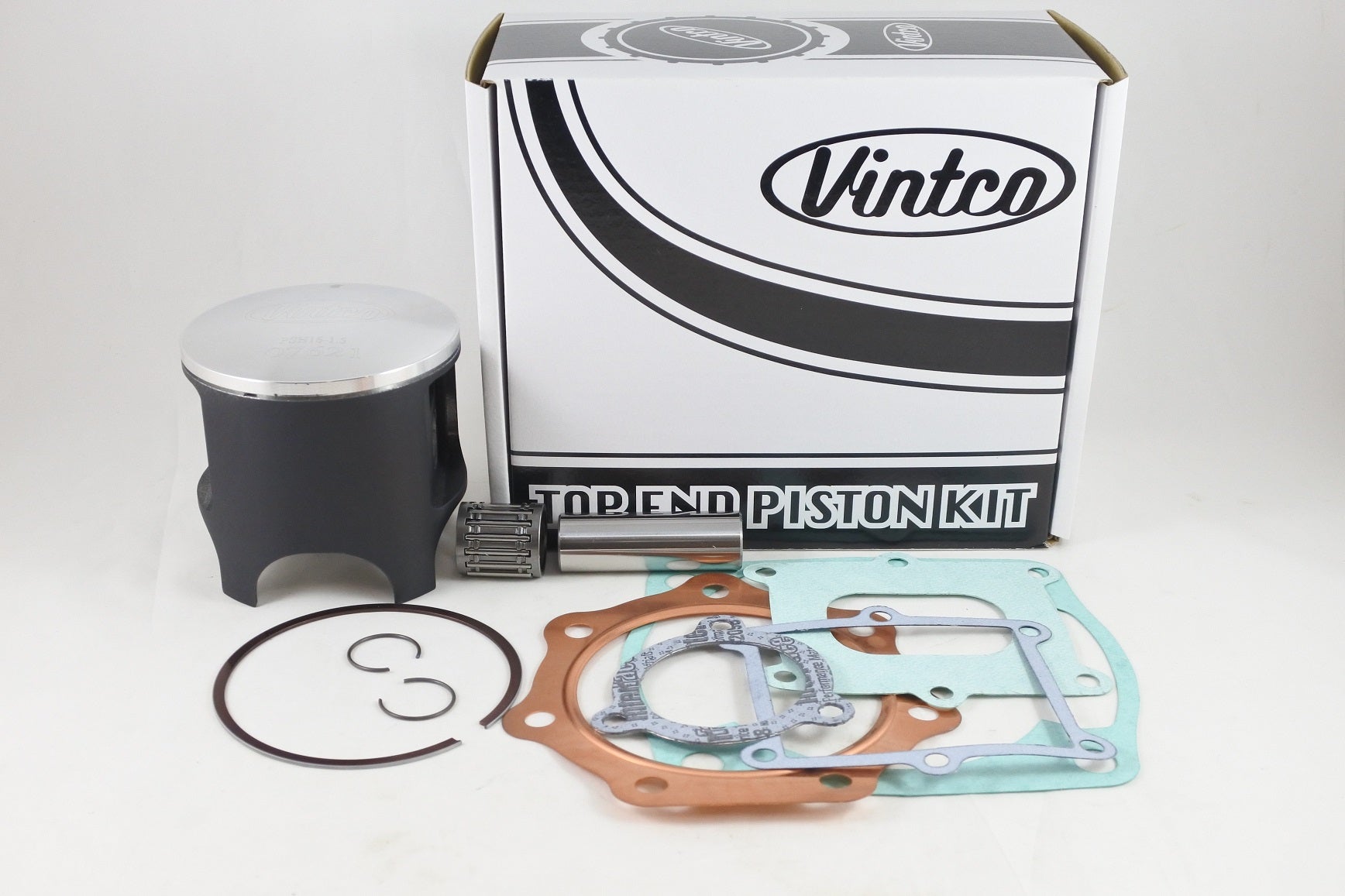

VintCo top end piston kit KTH29-1.5 is a complete rebuild kit for the 1984 Honda CR500, supplied in a 90.5 mm (+1.5 mm over) size. The kit includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• MOS2-coated piston for running-in
• Intended for 1984 Honda CR500 rebuild applications
• Kit price includes a 10% saving compared with purchasing the included parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH29-1.5
• Piston construction: Forged
• Country of manufacture: Germany
• Nominal size: 90.5 mm
• Piston diameter: 90.42 mm
• Oversize: +1.5 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• 12254-KA5-770 - Head gasket
• 12191-MAC-680 - Base gasket
• 14132-KA5-306 - Intake gasket
• 14133-KA5-306 - Intake gasket
• 18291-KA5-307 - Exhaust pipe gasket

Vehicle Fitments

• 1984 Honda CR500
