TOP END PISTON KIT 84-84 HONDA CR 500 90.0mm 1.0mm OVER VINTCO KTH29-1.0

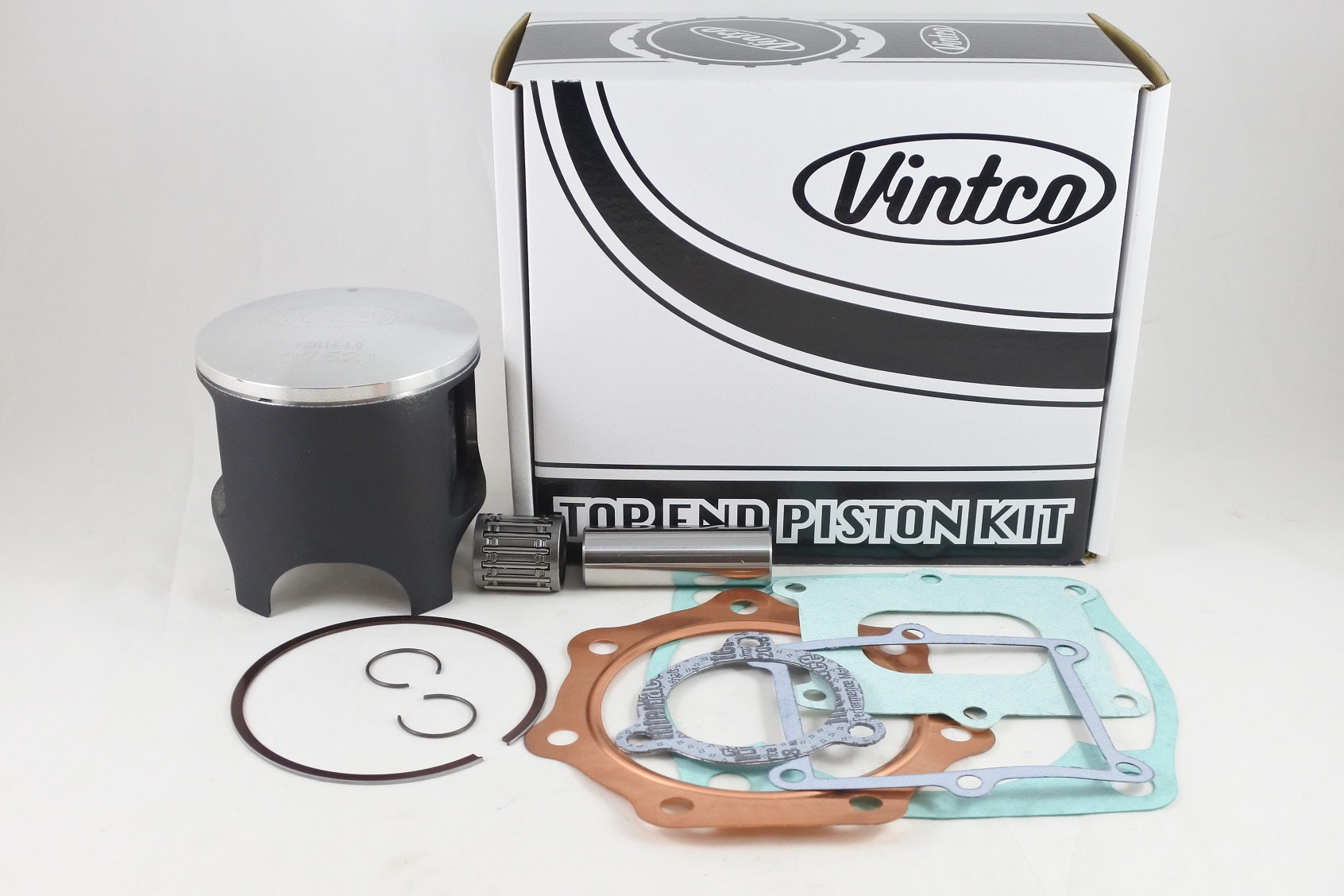

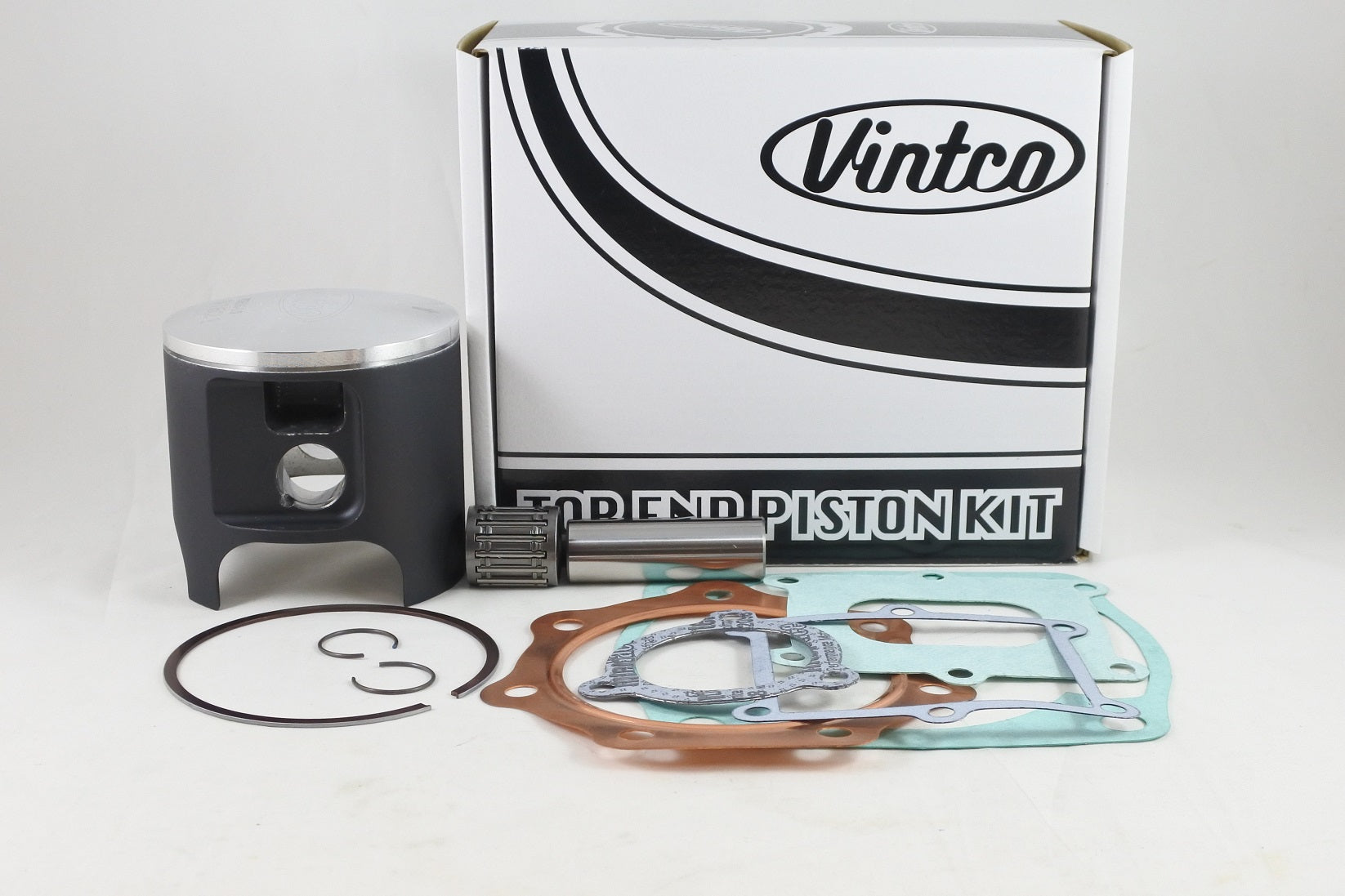

This all-new VintCo top end piston kit is a complete rebuild kit for the 1984 Honda CR500, supplied for a 90.0 mm bore application at +1.0 mm oversize. It includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production methods for OEM-level or better fit and performance. The kit price is 10% lower than purchasing the components individually, and other size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gaskets
• Supplied with exhaust pipe gasket
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-level or better fit and performance
• Kit price includes a 10% saving compared to individual components
• Other size options available

Specifications

• VintCo Part Number: KTH29-1.0
• Product type: Top End Piston Kit
• Piston size: 90.0 mm
• Oversize: +1.0 mm
• Piston diameter: 89.92 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA5-770
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-KA5-306
• Intake gasket: 14133-KA5-306
• Exhaust pipe gasket: 18291-KA5-307

Vehicle Fitments

• 1984 Honda CR500
