TOP END PISTON KIT 84-84 HONDA CR 500 89.5mm 0.5mm OVER VINTCO KTH29-0.5

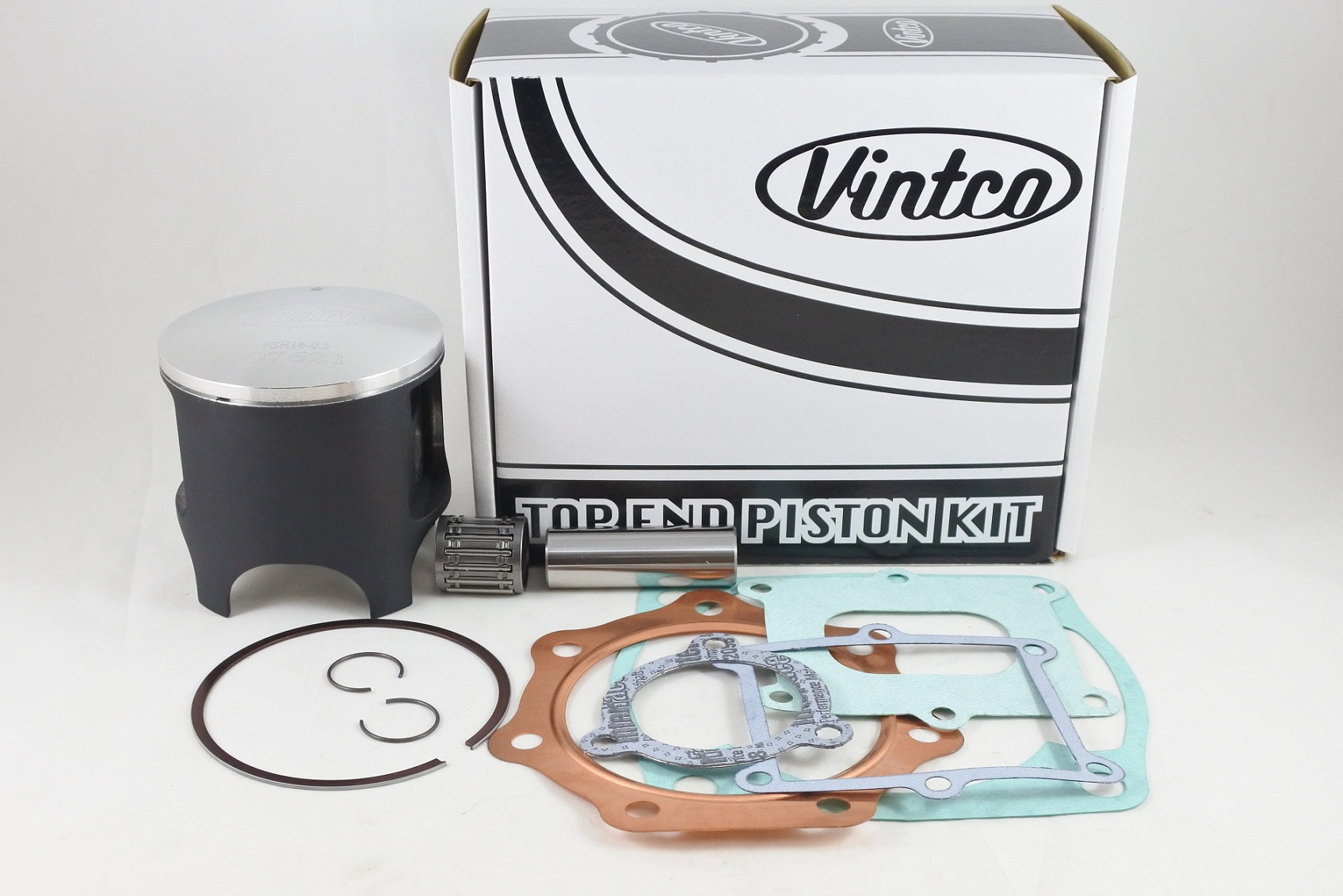

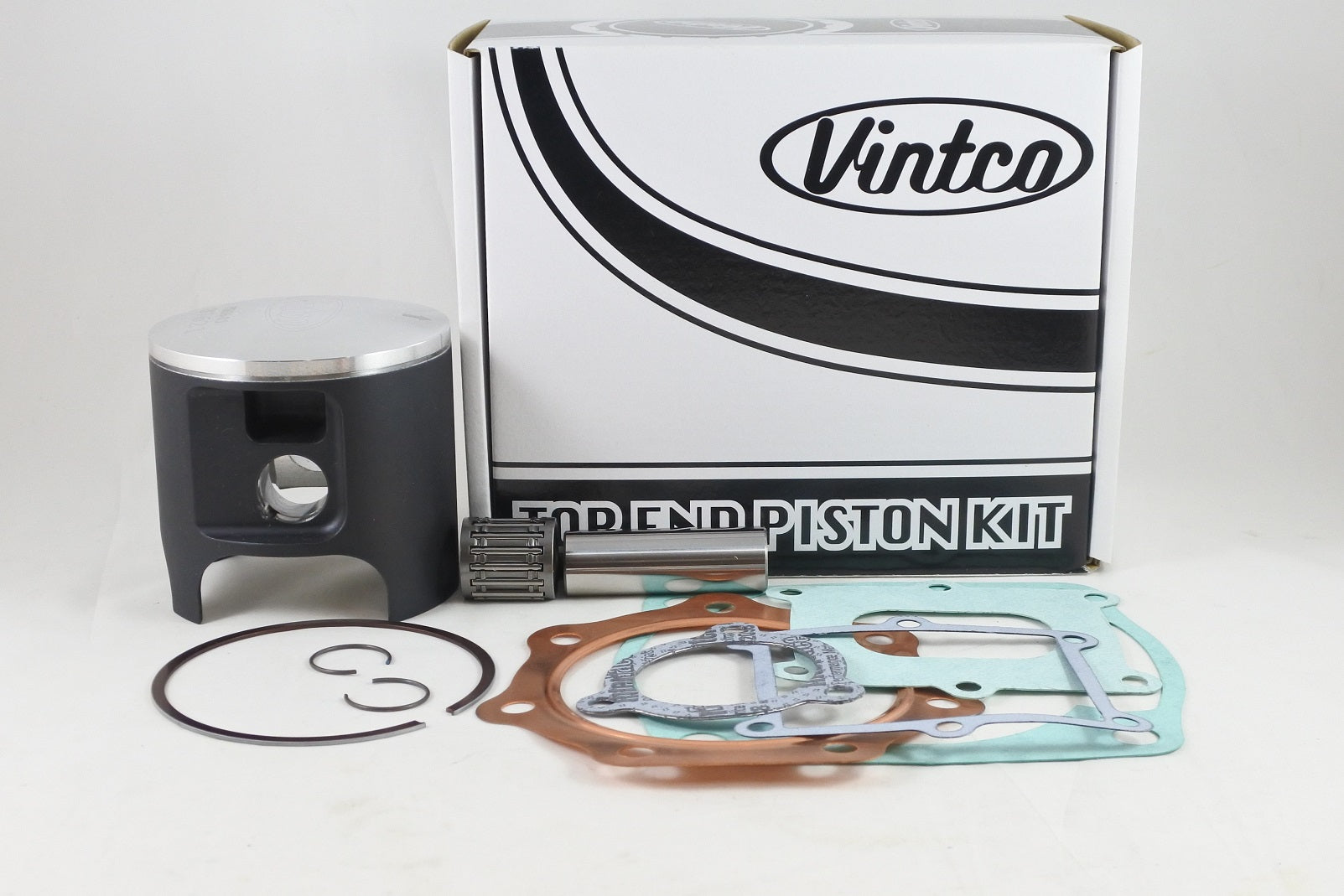

This VintCo top end piston kit is intended for the 1984 Honda CR500 and provides the main components required for a top-end rebuild in a +0.5 mm oversize configuration. The kit contains a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set including head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing techniques for fitment and performance comparable with or better than OEM.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket, base gasket, intake gaskets and exhaust pipe gasket
• Produced using modern materials and manufacturing techniques
• Intended to provide OEM-equivalent or better fitment and performance
• Kit price is 10% lower than purchasing the included items individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH29-0.5
• Product type: Top end piston kit
• Nominal size: 89.5 mm
• Piston size: 89.42 mm
• Oversize: +0.5 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA5-770
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-KA5-306
• Intake gasket: 14133-KA5-306
• Exhaust pipe gasket: 18291-KA5-307

Vehicle Fitments

• 1984 Honda CR500
