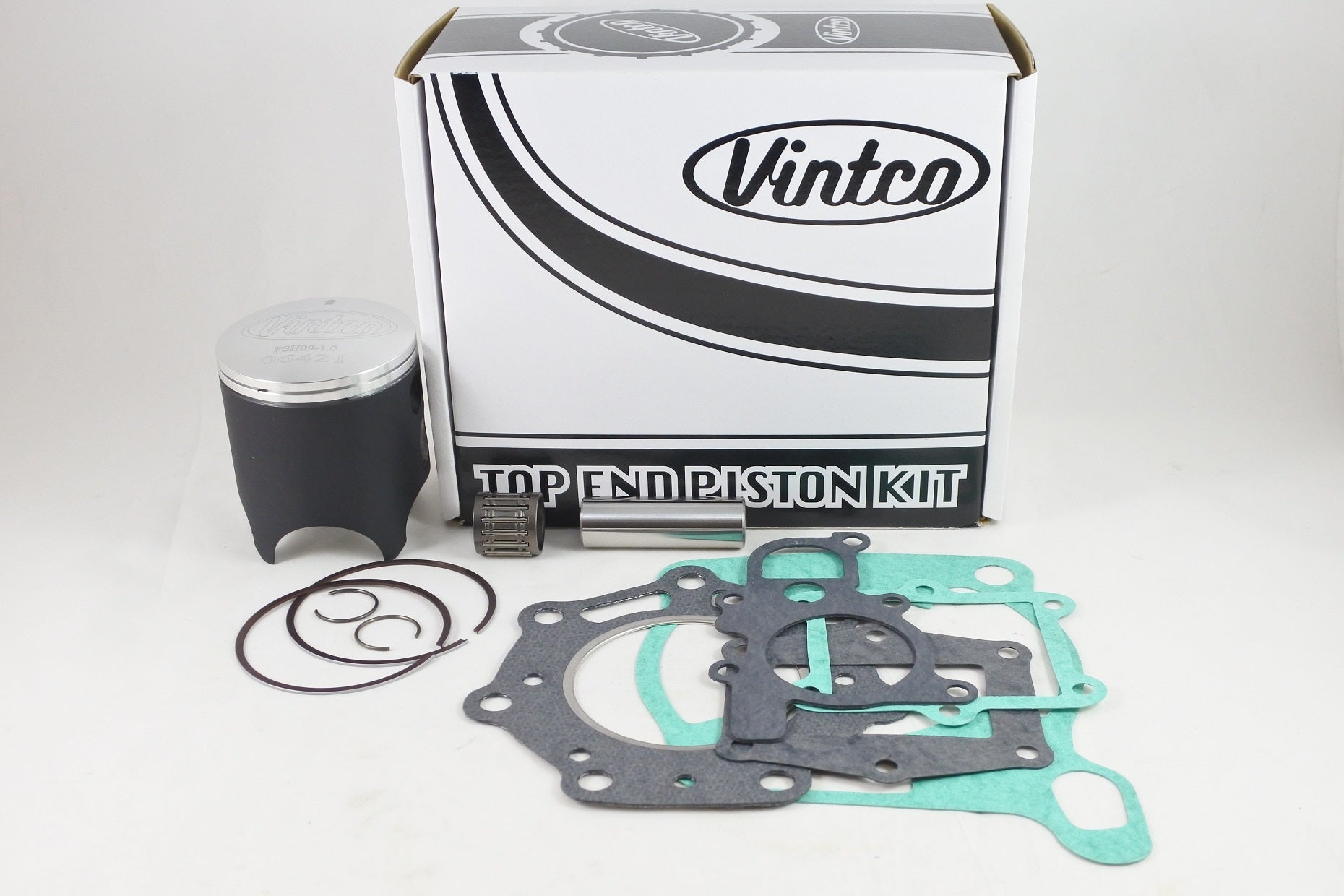

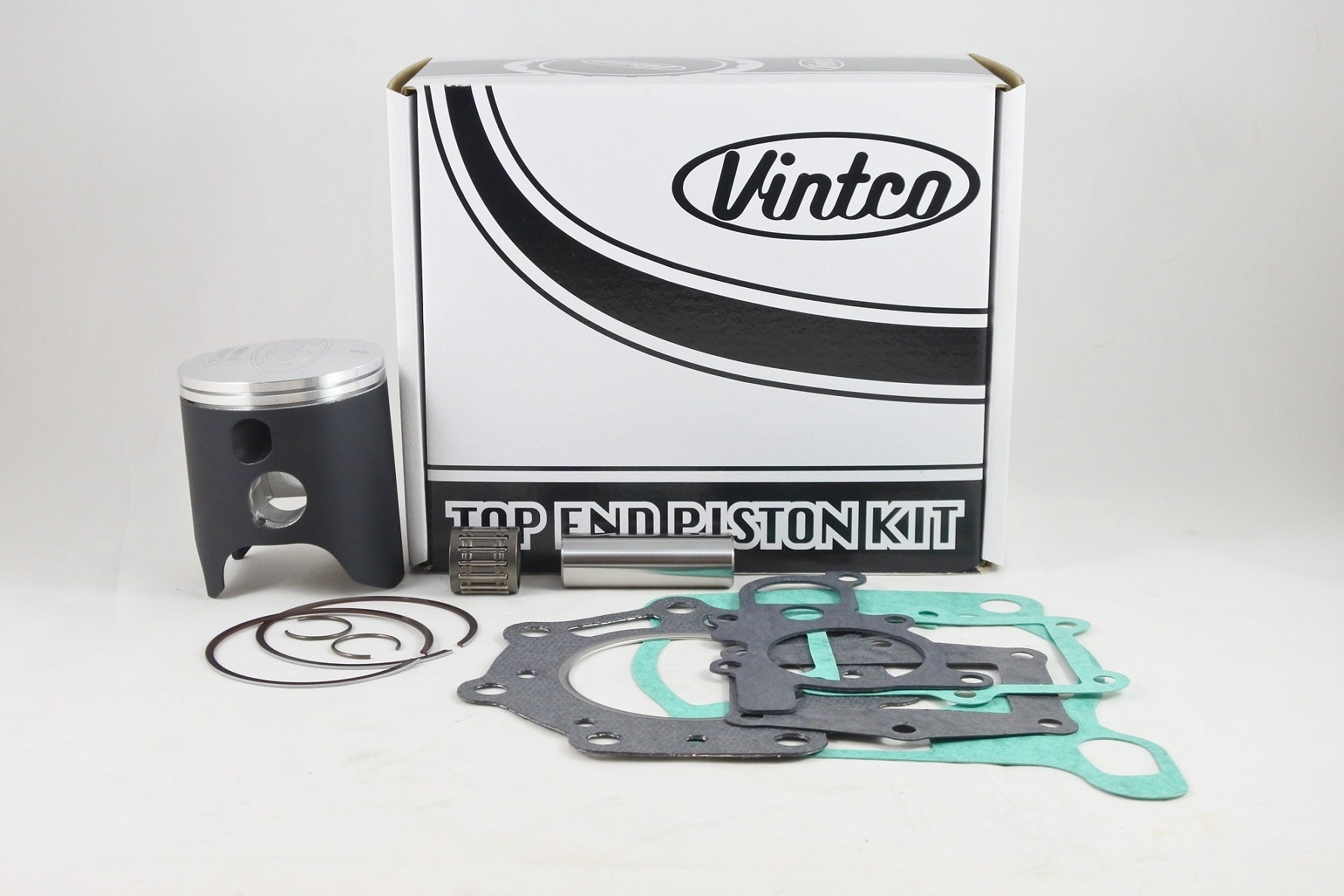

Top End Piston Kit 84-84 Honda CR 250 67.0mm 1.0mm Over Vintco KTH24-1.0

VintCo top end piston kit KTH24-1.0 is a complete rebuild kit for the 1984 Honda CR250, supplied with a piston kit, wrist pin bearing and a full top-end gasket set. The kit includes the piston, rings, pin and clips, along with head, base, intake and exhaust gaskets, and is manufactured using modern materials and production methods for OEM-equivalent fit and performance on a 67.0mm, +1.0mm over top end rebuild.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Intended for 1984 Honda CR250 top end rebuilds
• Kit price includes a 10% saving compared with buying the components individually
• Other size options are available

Specifications

• VintCo Part Number: KTH24-1.0
• Nominal piston size: 67.0mm
• Oversize: +1.0mm over
• Piston diameter: 66.94mm
• Piston clearance: 0.06mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA4-308
• Base gasket: 12191-KA4-307
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-KA4-306

Vehicle Fitments

• 1984 Honda CR250
