TOP END PISTON KIT 84-84 HONDA CR 125 57mm 1.5mm OVER VINTCO KTH15-1.5

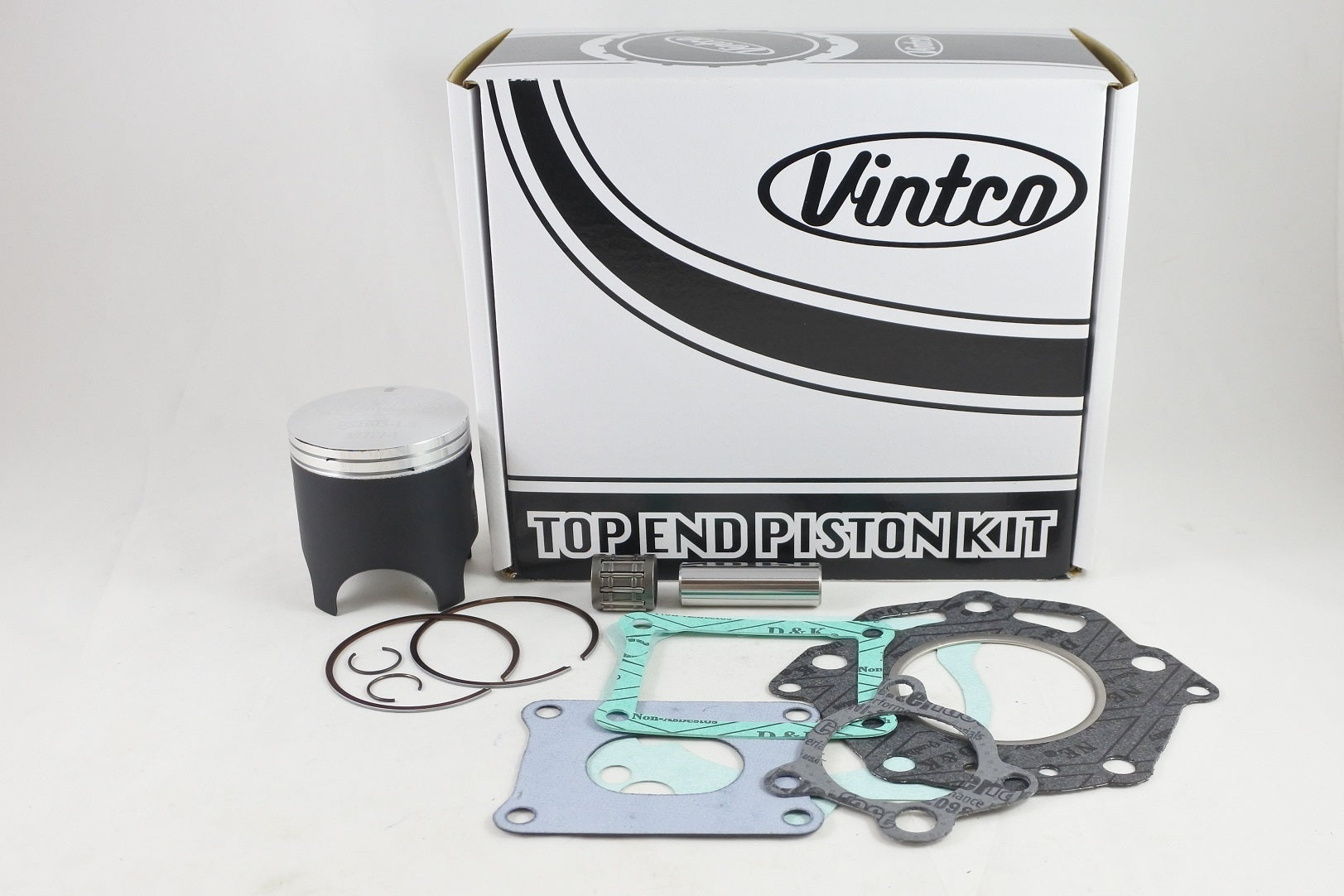

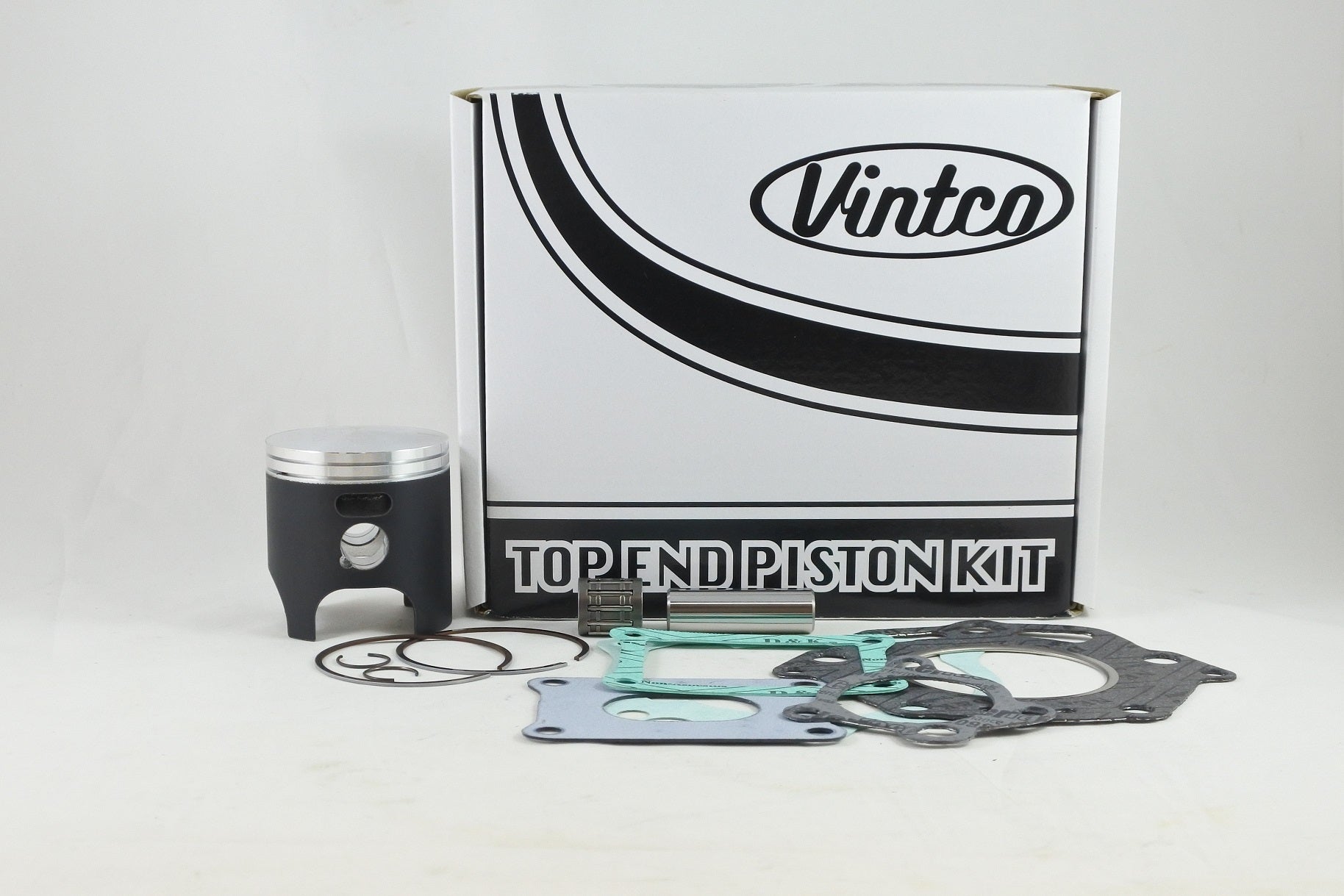

VintCo top end piston kit KTH15-1.5 is a complete rebuild set for the 1984 Honda CR125, supplied with a nominal 57 mm piston in +1.5 mm oversize. The kit includes the piston assembly with rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. Manufactured using modern materials and processes, it is intended to simplify top-end rebuild work while matching fitment against the listed OEM part numbers; additional size options are also available.

Features

• Complete top end rebuild kit for the 1984 Honda CR125
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket, base gasket, intake gaskets and exhaust pipe gasket
• OEM part numbers provided for exact fitment reference
• Kit price includes a 10% saving compared with buying the listed items individually
• MOS2-coated piston to assist running-in

Specifications

• VintCo Part Number: KTH15-1.5
• Product type: Top End Piston Kit
• Piston nominal size: 57 mm
• Oversize: +1.5 mm
• Piston diameter: 56.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-307
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18359-KA3-306

Vehicle Fitments

• 1984 Honda CR125
