TOP END PISTON KIT 84-84 HONDA CR 125 56mm VINTCO KTH15-0.5

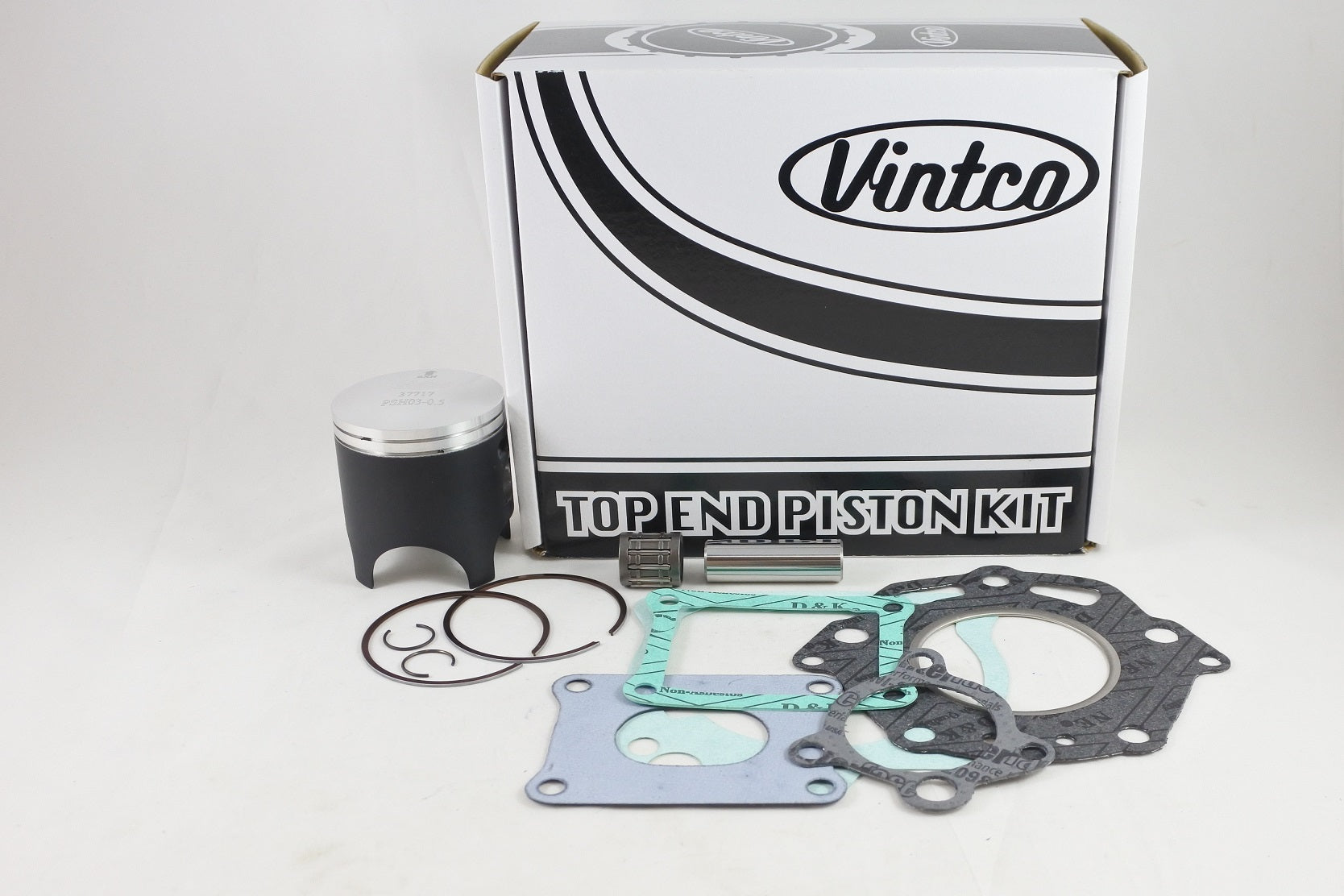

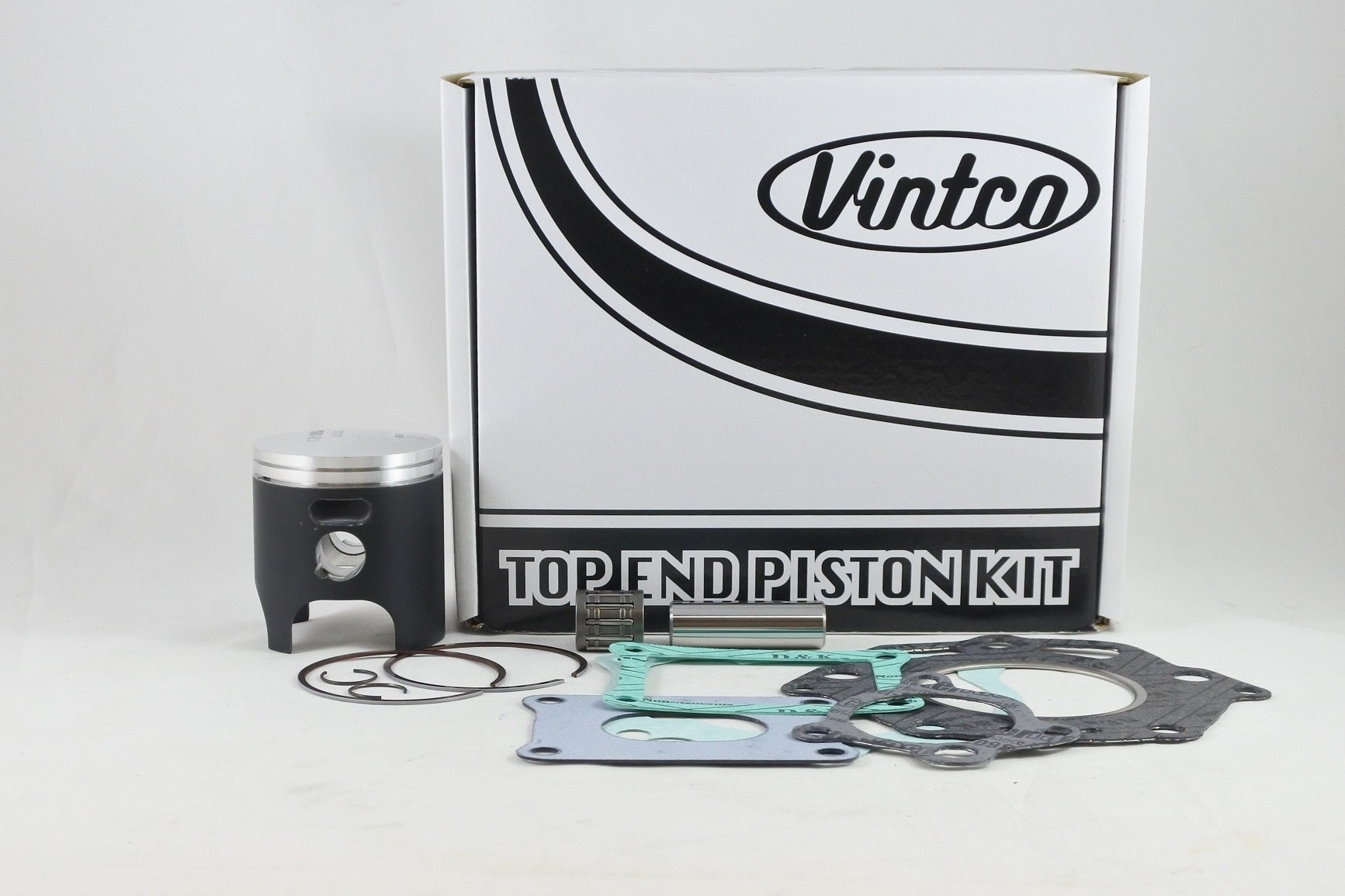

This VintCo top end piston kit is a complete rebuild kit for the 1984 Honda CR125, supplied in a nominal 56 mm size with a +0.5 mm oversize. It includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head gasket, base gasket, two intake gaskets and the exhaust pipe gasket. The components are manufactured using modern materials and production methods for OEM or improved fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes two intake gaskets
• Includes exhaust pipe gasket
• Kit pricing includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH15-0.5
• Product type: Top End Piston Kit
• Piston type: Forged
• Country of manufacture: Germany
• Piston coating: MOS2
• Nominal size: 56 mm
• Oversize: +0.5 mm
• Piston diameter: 55.94 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-307
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18359-KA3-306

Vehicle Fitments

• 1984 Honda CR125
