TOP END PISTON KIT 84-84 HONDA CR 125 55.5mm STANDARD VINTCO KTH15-00

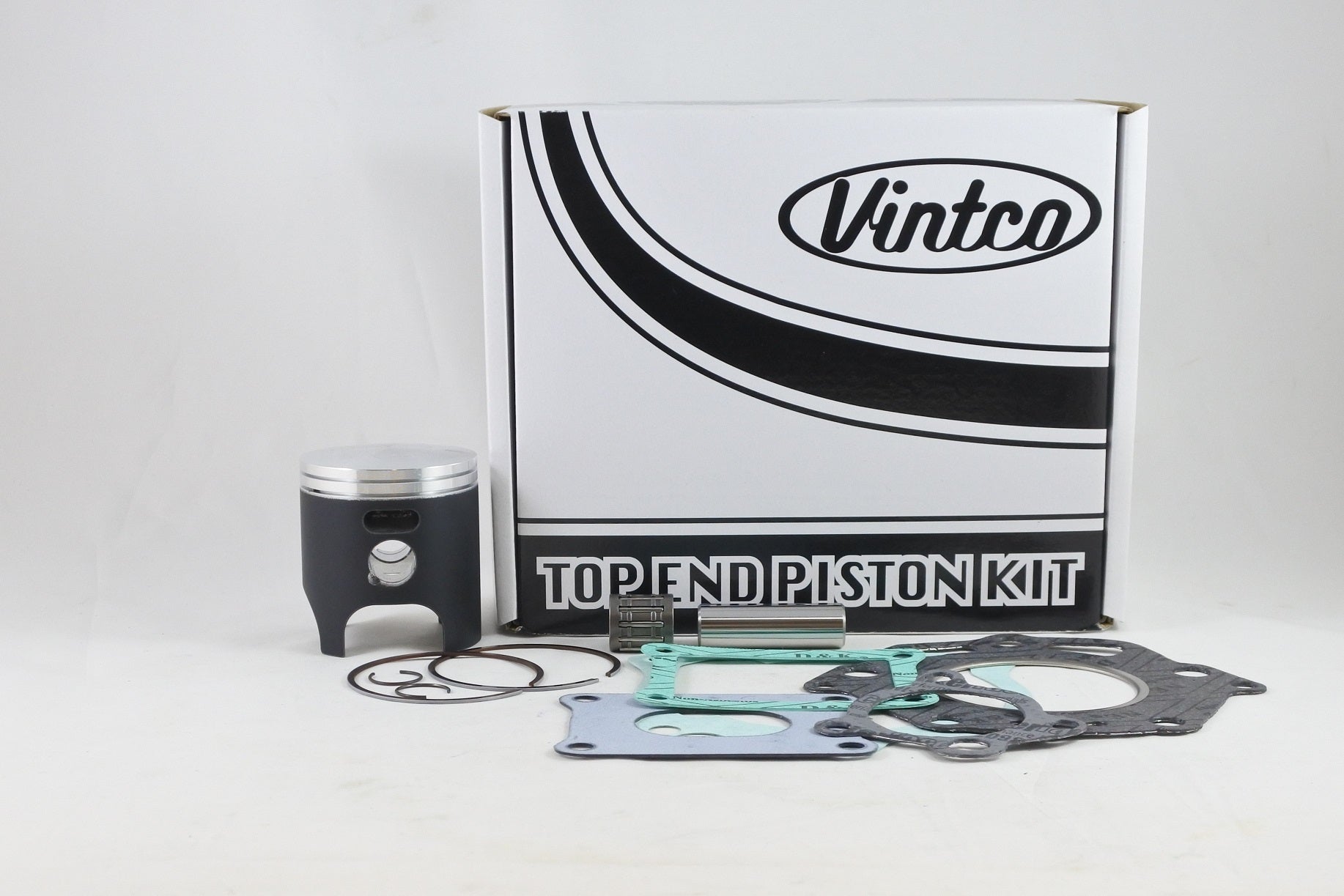

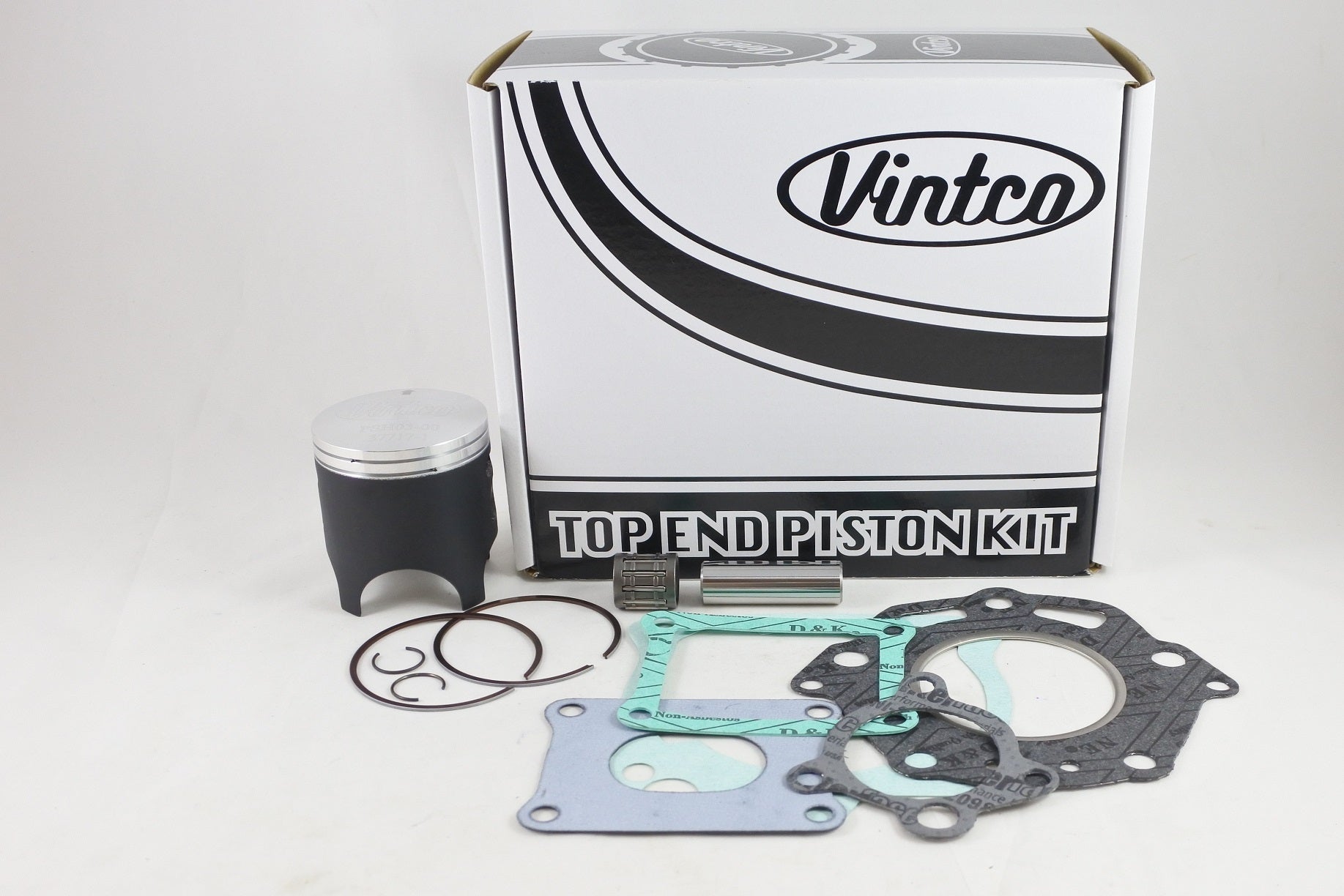

VintCo KTH15-00 is a complete top end piston kit for the 1984 Honda CR125, supplied in a standard 55.5 mm size for top-end rebuilds. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top-end wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust pipe gaskets. Components are produced using modern materials and manufacturing methods for OEM-equivalent or better fit and performance, and OEM cross-reference numbers are included for exact fitment verification.

Features

• Complete kit for top-end rebuilds
• Includes piston, rings, pin and clips
• Includes top-end wrist pin bearing
• Includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
• OEM cross-reference part numbers included for exact fitment verification
• Kit pricing is 10% lower than purchasing the components individually
• Other size options are available

Specifications

• VintCo Part Number: KTH15-00
• Product type: Top End Piston Kit
• Standard size: 55.5 mm
• Piston size: 55.44 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head Gasket: 12251-KA3-308
• Base Gasket: 12191-KA3-307
• Intake Gasket: 14131-KA3-306
• Intake Gasket: 14132-KA3-306
• Exhaust Pipe Gasket: 18359-KA3-306

Vehicle Fitments

• 1984 Honda CR125
