TOP END PISTON KIT 83-83 YAMAHA YZ 80 47mm STANDARD VINTCO KTY58-00

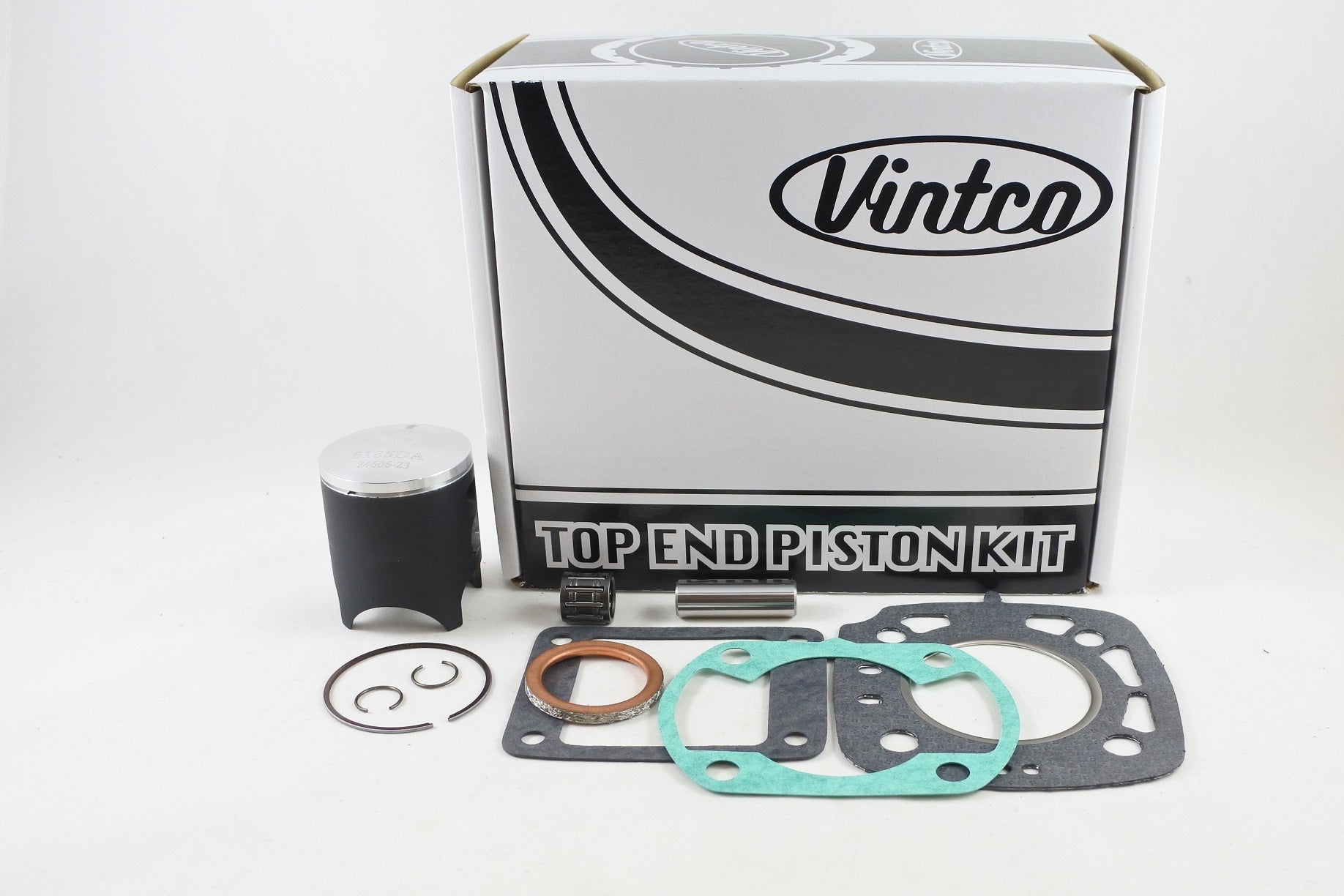

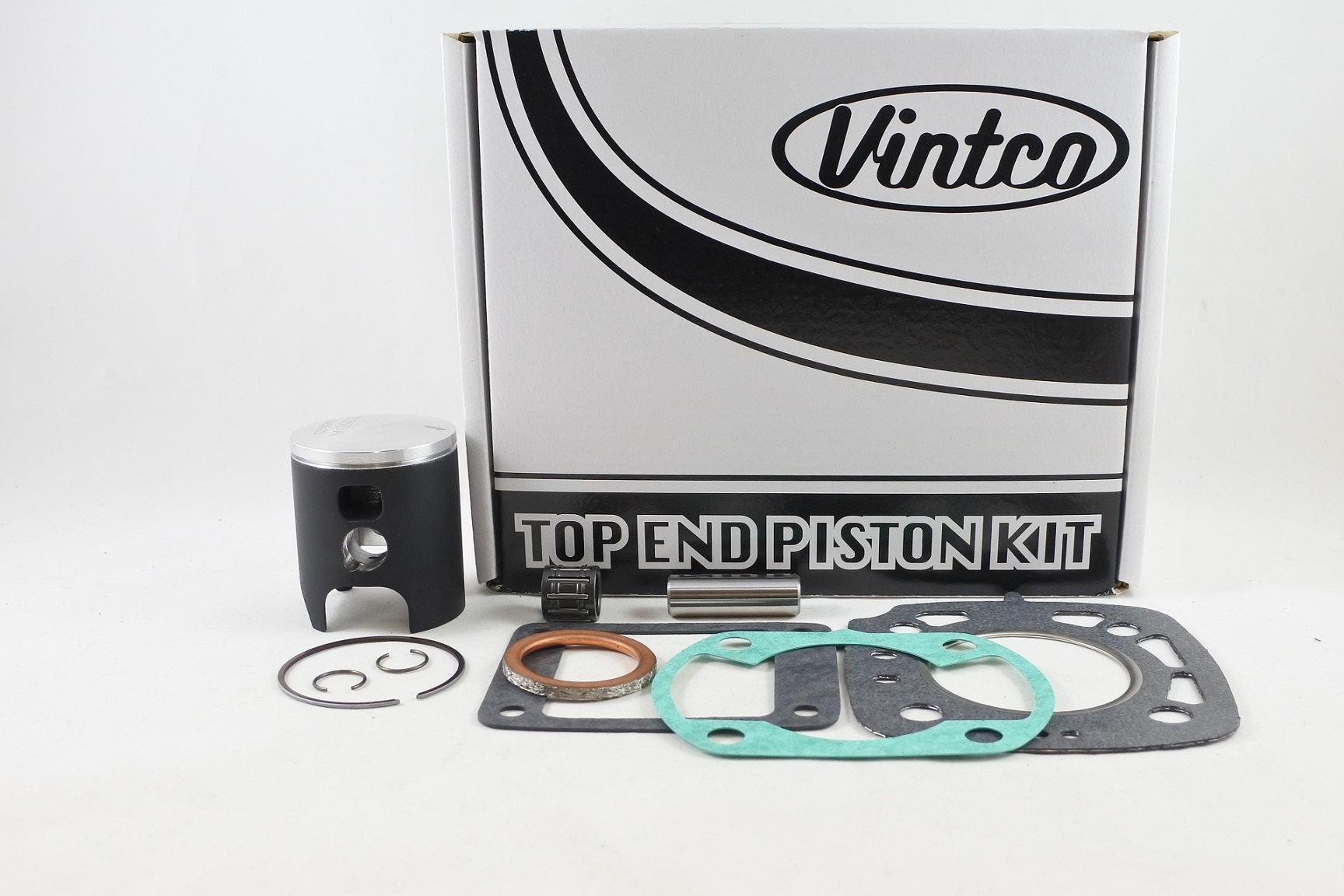

Top end piston kit for the 1983 Yamaha YZ80, supplied as a complete rebuild set with a VintCo piston assembly, top end bearing and full top-end gasket kit. This standard-size kit includes the parts needed for a top-end rebuild and is manufactured using modern materials and production methods to provide OEM-equivalent or better fit and performance.

Features

• Complete top-end rebuild kit for the 1983 Yamaha YZ80
• Includes piston, rings, wrist pin and clips
• Includes top end bearing
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes reed valve gasket
• Includes exhaust pipe gasket
• Intended for standard-bore rebuilds
• Priced at 10% less than purchasing the included components individually

Specifications

• VintCo Part Number: KTY58-00
• Product type: Top End Piston Kit
• Piston size: 47 mm standard
• Piston measurement: 46.95 mm
• Piston-to-cylinder clearance: 0.05 mm
• Piston construction: Forged
• Piston coating: MOS2
• Piston country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 58T-11181-11-00
• Cylinder base gasket: 4V0-11351-10-00
• Reed valve gasket: 3TT-13621-00-00
• Exhaust pipe gasket: 4BR-14613-00-00

Vehicle Fitments

• 1983 Yamaha YZ80
