TOP END PISTON KIT 83-83 YAMAHA IT 250 69MM 1.0MM OVER VINTCO KTY45-1.0
  • TOP END PISTON KIT 83-83 YAMAHA IT 250 69MM 1.0MM OVER VINTCO KTY45-1.0
  • TOP END PISTON KIT 83-83 YAMAHA IT 250 69MM 1.0MM OVER VINTCO KTY45-1.0
  • TOP END PISTON KIT 83-83 YAMAHA IT 250 69MM 1.0MM OVER VINTCO KTY45-1.0
  • TOP END PISTON KIT 83-83 YAMAHA IT 250 69MM 1.0MM OVER VINTCO KTY45-1.0
TOP END PISTON KIT 83-83 YAMAHA IT 250 69MM 1.0MM OVER VINTCO KTY45-1.0

TOP END PISTON KIT 83-83 YAMAHA IT 250 69MM 1.0MM OVER VINTCO KTY45-1.0

£216.27 GBP
Taxes included. Shipping calculated at checkout.

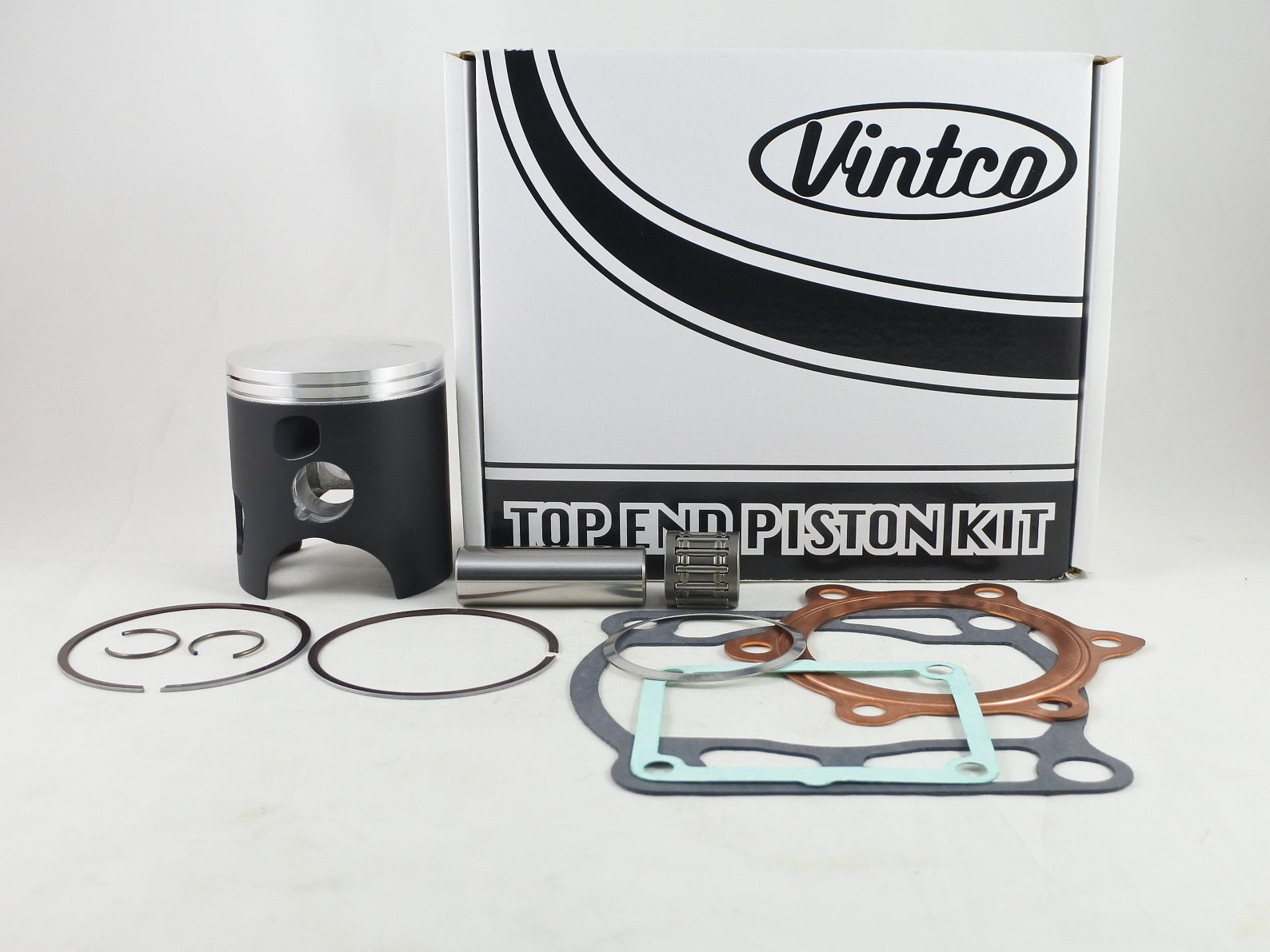

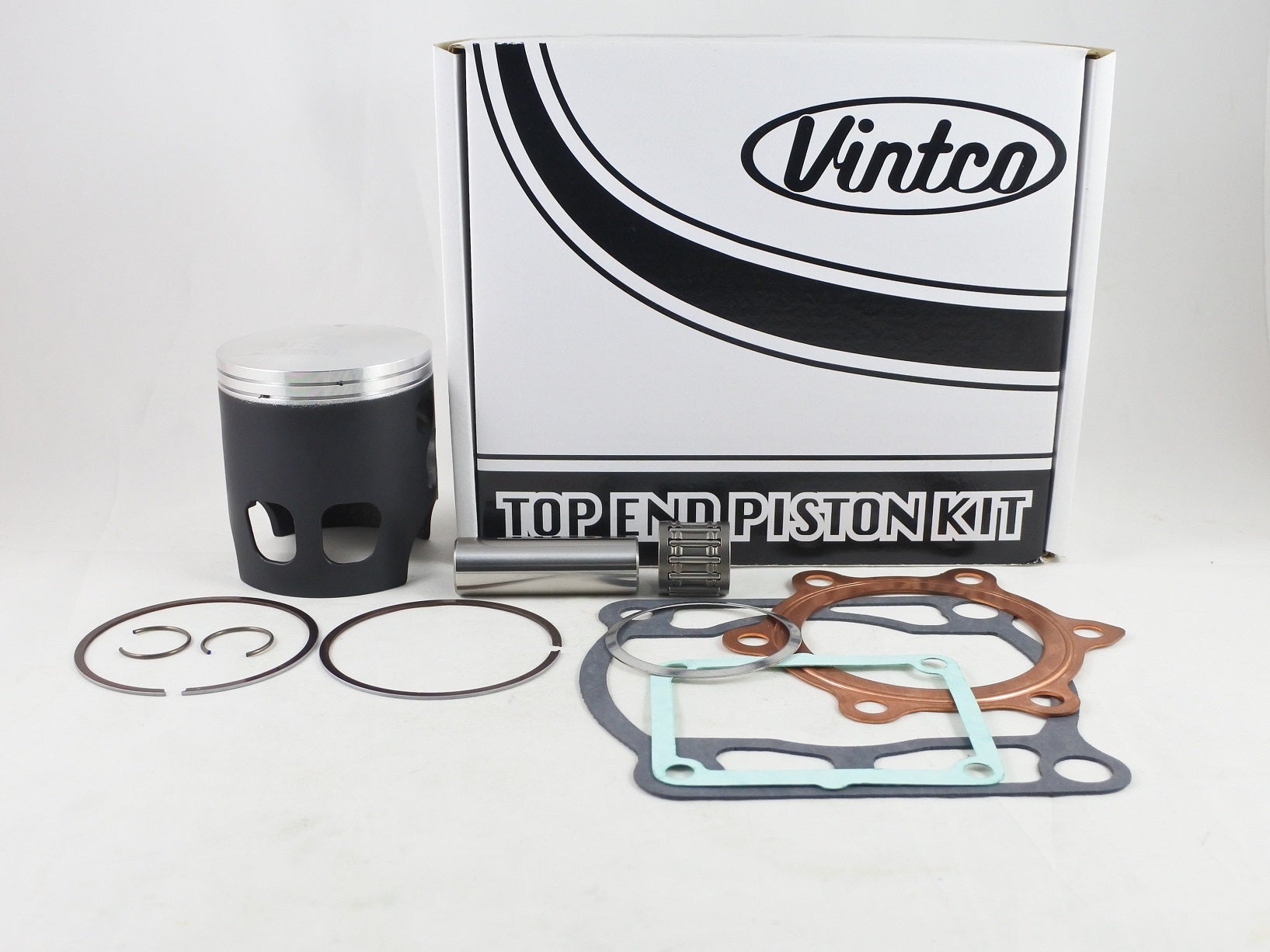

VintCo top end piston kit KTY45-1.0 is a 69 mm, 1.0 mm oversize kit for the 1983 Yamaha IT250. It includes a forged piston made in Germany with an MOS2 coating for break-in, along with the main sealing components and a wrist pin bearing required for top end service.

Features

  • Supplied as a complete top end piston kit
  • Includes forged piston
  • MOS2-coated piston for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit pricing is listed at 10% less than purchasing the included items individually

Specifications

  • VintCo Part Number: KTY45-1.0
  • Nominal piston size: 69 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 68.94 mm
  • Recommended clearance: 0.06 mm
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 25Y-11181-00-00
  • Cylinder base gasket: 3R4-11351-01-00
  • Intake gasket: 80L-13621-01-00
  • Exhaust pipe gasket: 3R4-14613-00-00

Vehicle Fitments

  • 1983 Yamaha IT250
