TOP END PISTON KIT 83-83 HONDA CR 250 67.5mm 1.5mm OVER VINTCO KTH23-1.5

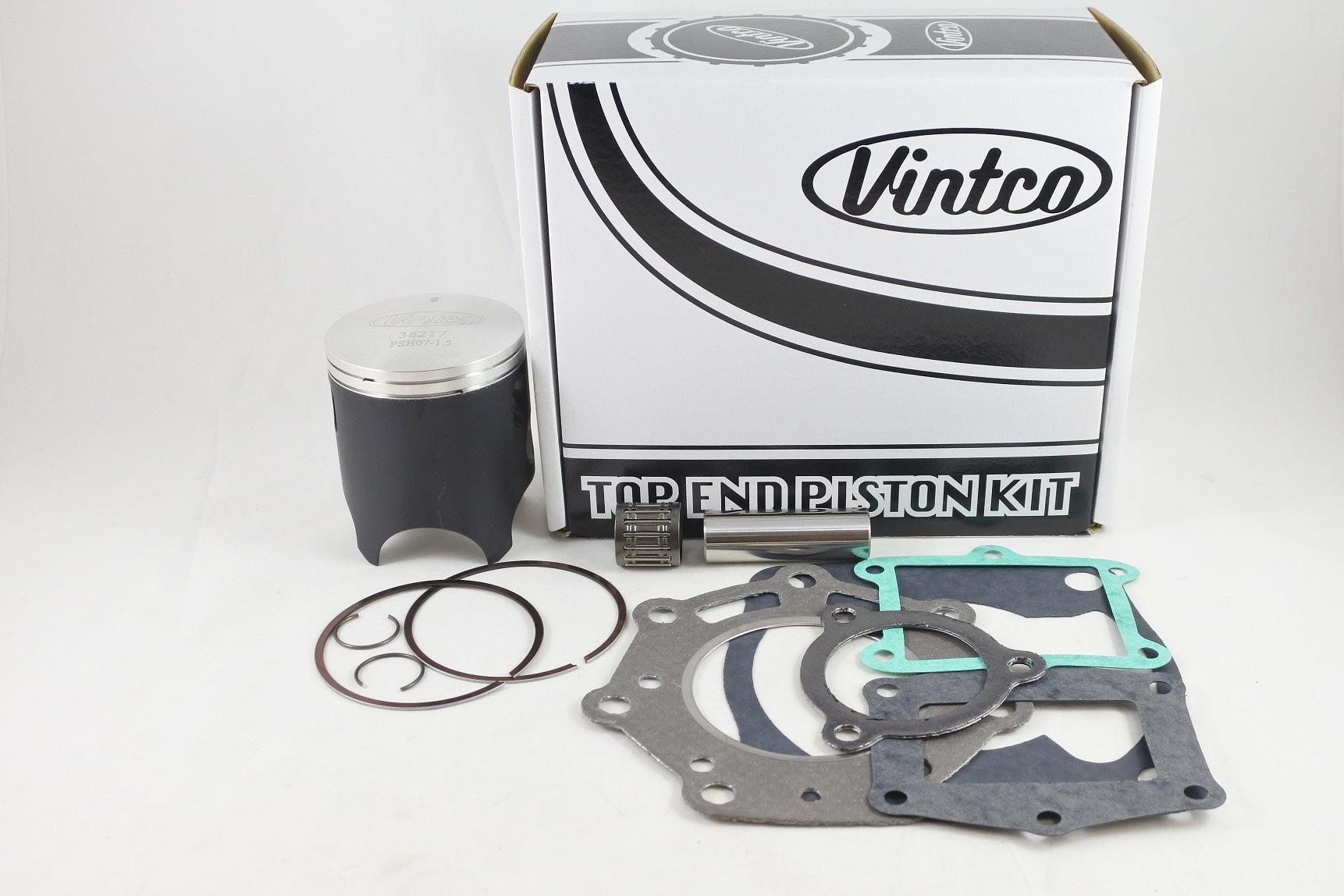

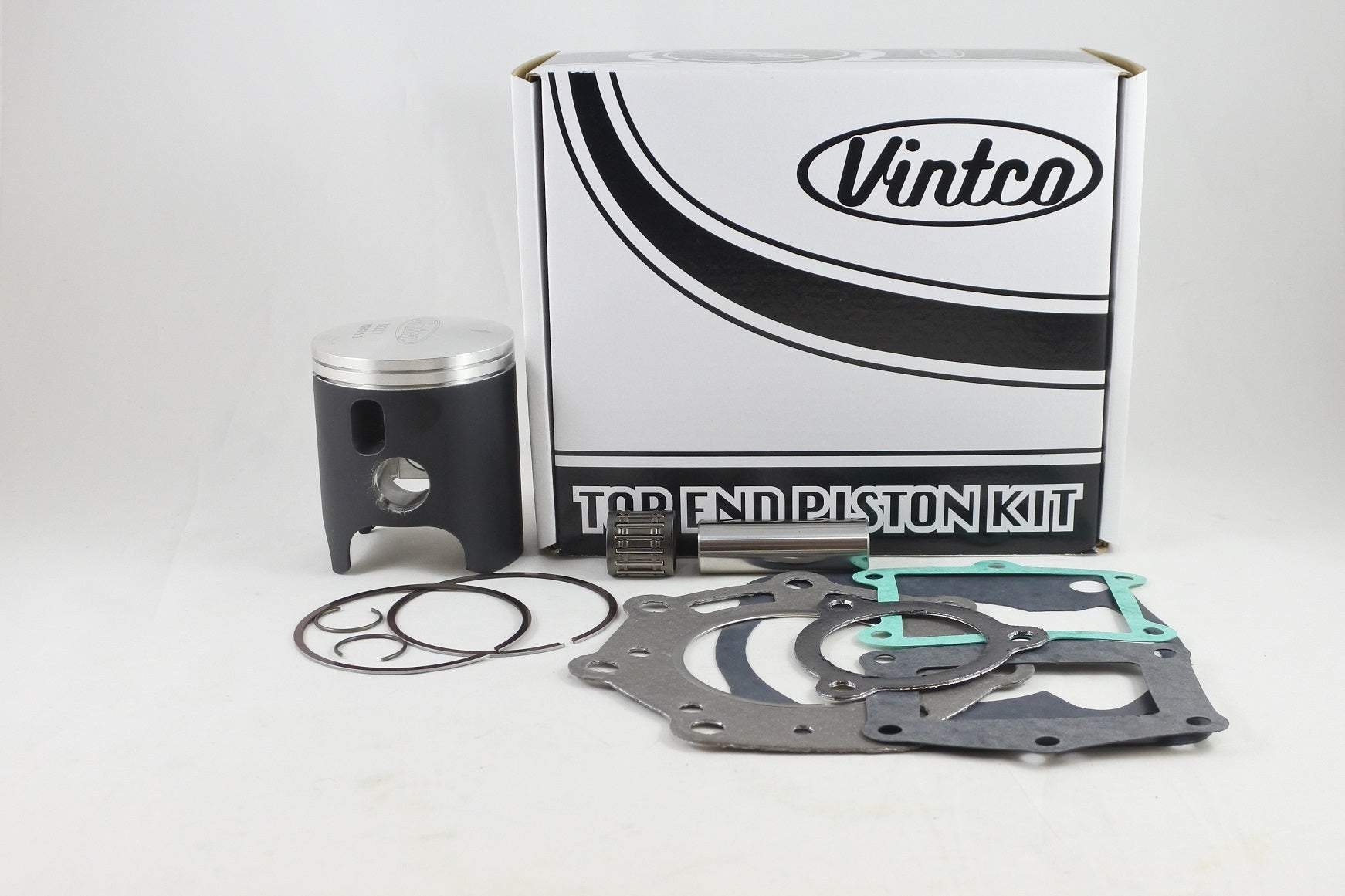

This top end piston kit is designed for the 1983 Honda CR250 and provides the components required for a complete top end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head gasket, base gasket, intake gaskets and exhaust pipe gasket. It is intended to provide OEM-equivalent fitment and performance using modern manufacturing methods, with OEM part number cross-references supplied for fitment verification. Kit pricing offers a 10% saving compared with purchasing the components individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gaskets
• Supplied with exhaust pipe gasket
• OEM part number cross-reference included for fitment verification
• Kit pricing includes a 10% saving over individual items
• Additional size options available

Specifications

• VintCo Part Number: KTH23-1.5
• Piston diameter: 67.44 mm
• Oversize: +1.5 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA4-307
• Base gasket: 12191-KA4-306
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1983 Honda CR250
