TOP END PISTON KIT 83-83 HONDA CR 250 67.0mm 1.0mm OVER VINTCO KTH23-1.0

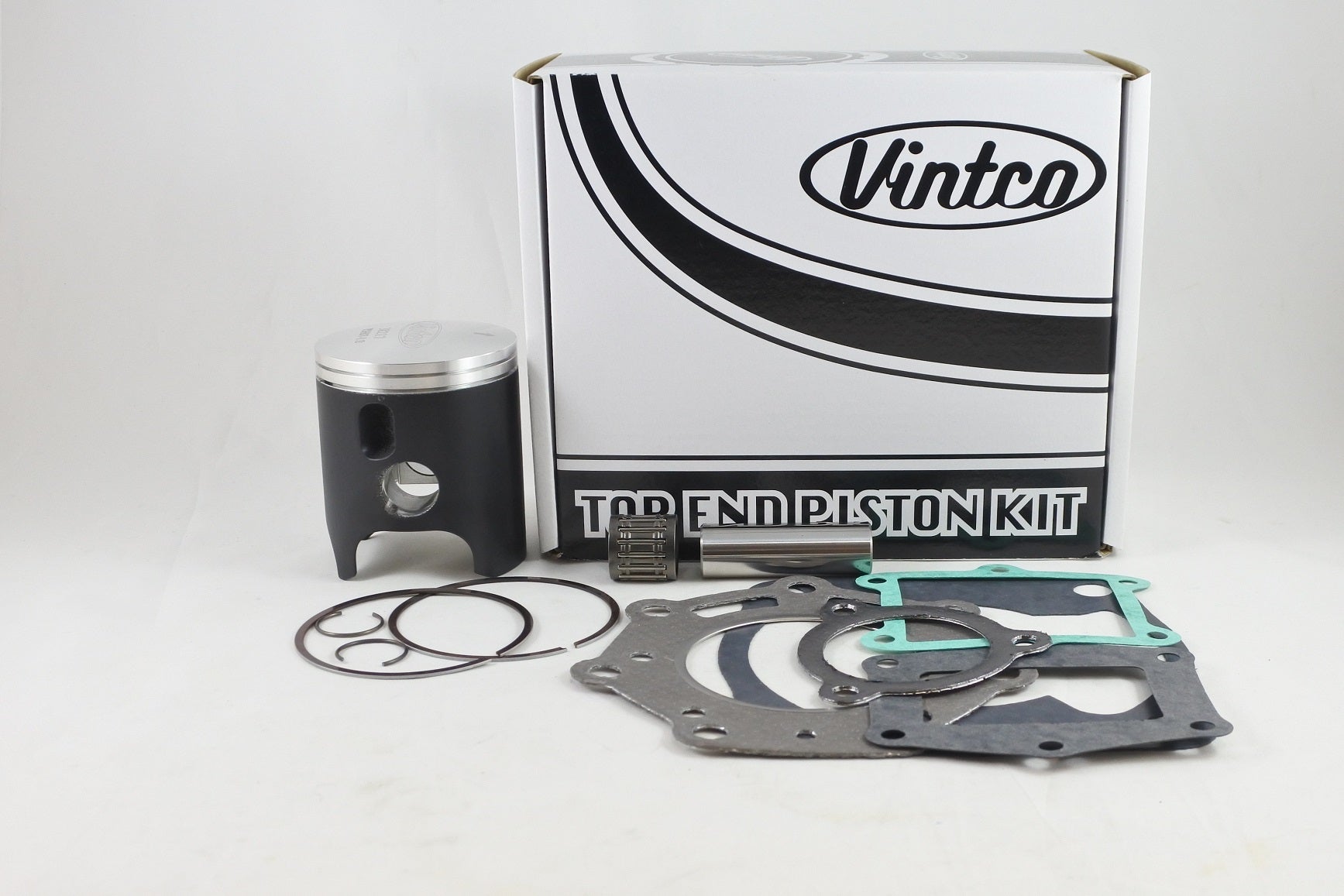

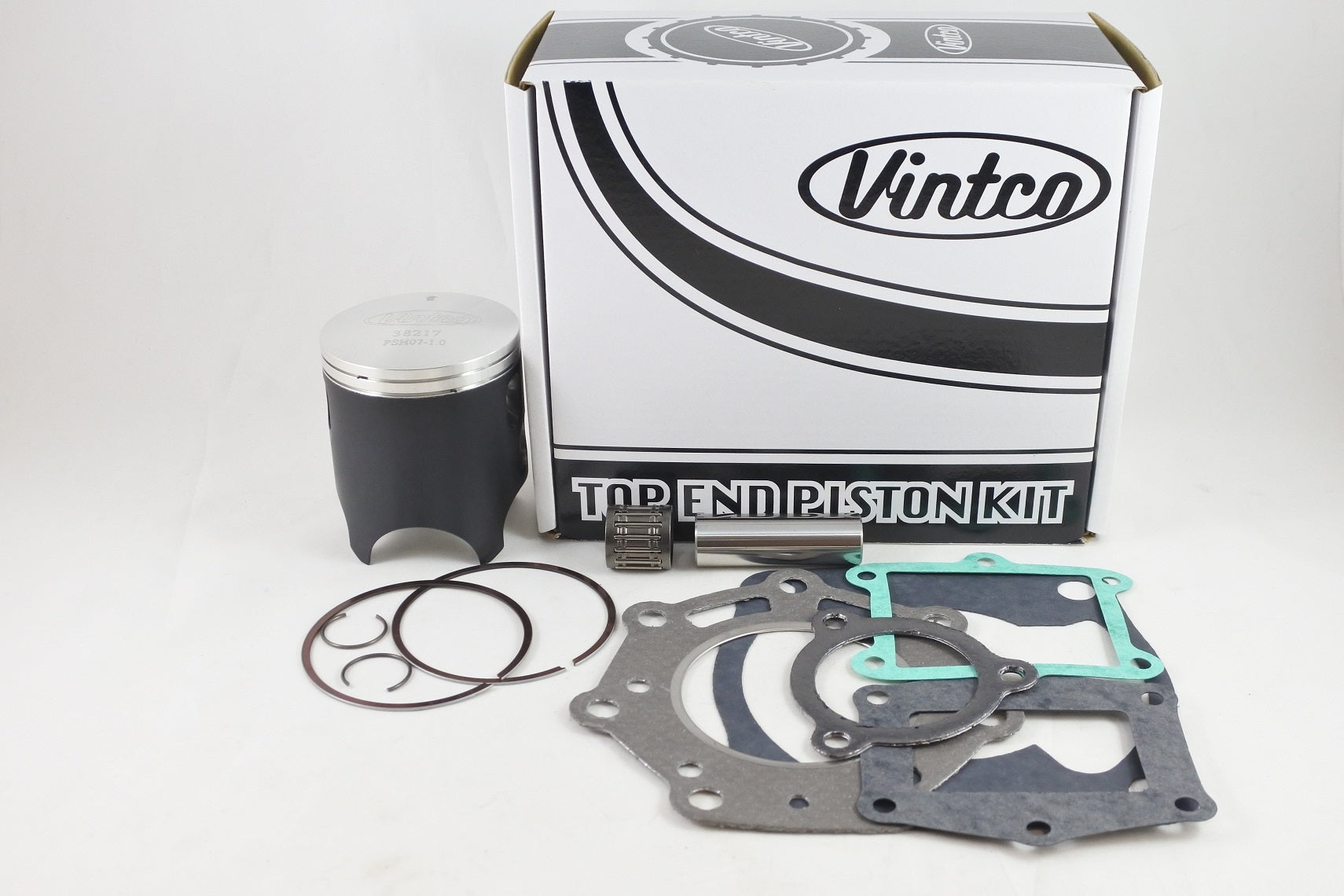

VintCo top end piston kit KTH23-1.0 is a complete rebuild kit for the 1983 Honda CR250. It includes a piston, rings, pin, clips, wrist pin bearing and a full top-end gasket set covering the head, base, intake and exhaust. The components are manufactured using modern materials and processes to provide OEM-equivalent or better fitment and performance, and the kit price is 10% lower than purchasing the included parts individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
• Manufactured using modern materials and manufacturing techniques
• Intended to provide OEM-equivalent or better fitment and performance
• Kit pricing includes a 10% saving compared with buying the included parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH23-1.0
• Item Category: Top End Piston Kits
• Nominal size: 67.0 mm
• Oversize: +1.0 mm
• Piston diameter: 66.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA4-307
• Base gasket: 12191-KA4-306
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1983 Honda CR250
