Top End Piston Kit 83-83 Honda CR 250 66.5mm 0.5mm Over Vintco KTH23-0.5
  • Top End Piston Kit 83-83 Honda CR 250 66.5mm 0.5mm Over Vintco KTH23-0.5
  • Top End Piston Kit 83-83 Honda CR 250 66.5mm 0.5mm Over Vintco KTH23-0.5
  • Top End Piston Kit 83-83 Honda CR 250 66.5mm 0.5mm Over Vintco KTH23-0.5
  • Top End Piston Kit 83-83 Honda CR 250 66.5mm 0.5mm Over Vintco KTH23-0.5
Top End Piston Kit 83-83 Honda CR 250 66.5mm 0.5mm Over Vintco KTH23-0.5

Top End Piston Kit 83-83 Honda CR 250 66.5mm 0.5mm Over Vintco KTH23-0.5

£213.45 GBP
Taxes included. Shipping calculated at checkout.

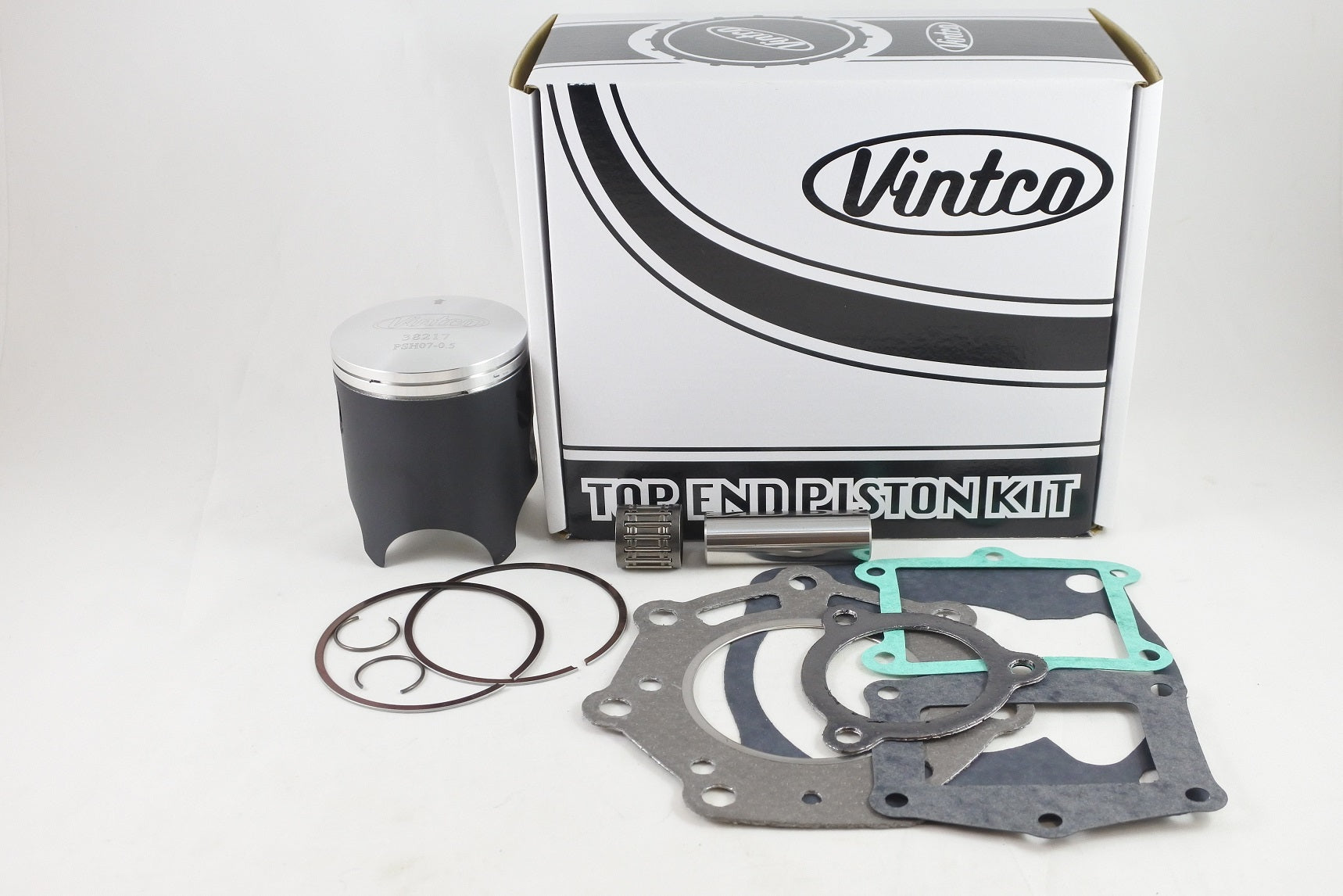

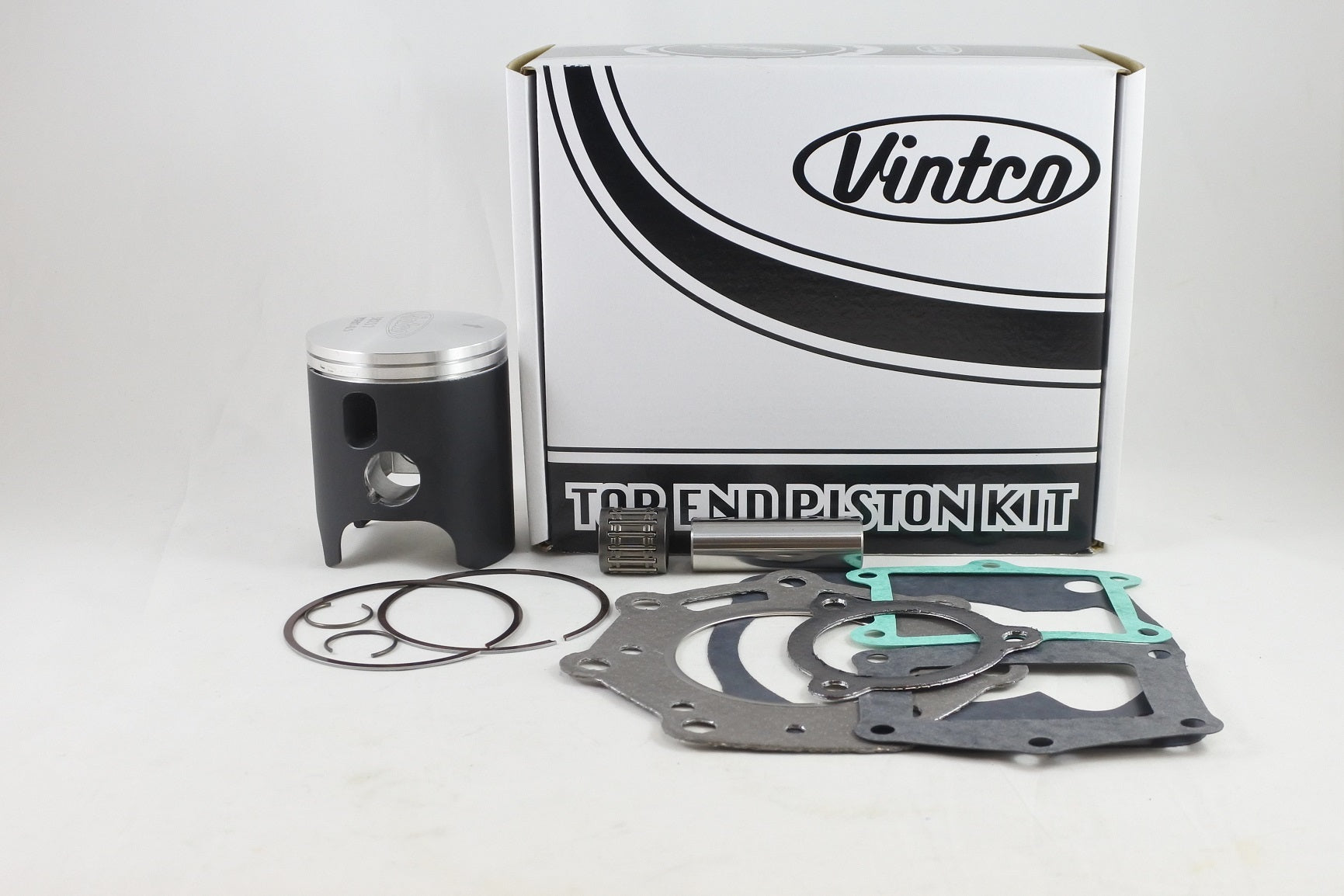

VintCo top end piston kit KTH23-0.5 is a complete rebuild kit for the 1983 Honda CR250, intended for 66.5 mm (+0.5 mm over) applications. It includes a VintCo piston kit, wrist pin bearing and a full top-end gasket set, using modern materials and manufacturing methods for OEM-equivalent fit and performance. The kit price reflects a 10% saving compared with purchasing the components individually, and additional size options are available.

Features

  • Complete top-end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
  • Designed for 1983 Honda CR250 top-end service
  • Intended to provide OEM-equivalent fit and performance
  • Additional size options available
  • Kit price reflects a 10% saving compared with purchasing components individually

Specifications

  • VintCo Part Number: KTH23-0.5
  • Nominal piston size: 66.5 mm
  • Oversize: +0.5 mm
  • Piston diameter: 66.44 mm
  • Piston clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head Gasket: 12254-KA4-307
  • Base Gasket: 12191-KA4-306
  • Intake Gasket: 14132-KAE-000
  • Intake Gasket: 14133-430-306
  • Exhaust Pipe Gasket: 18291-430-306

Vehicle Fitments

  • 1983 Honda CR250
