TOP END PISTON KIT 83-83 HONDA CR 125 56.5MM 1.0MM OVER VINTCO KTH14-1.0

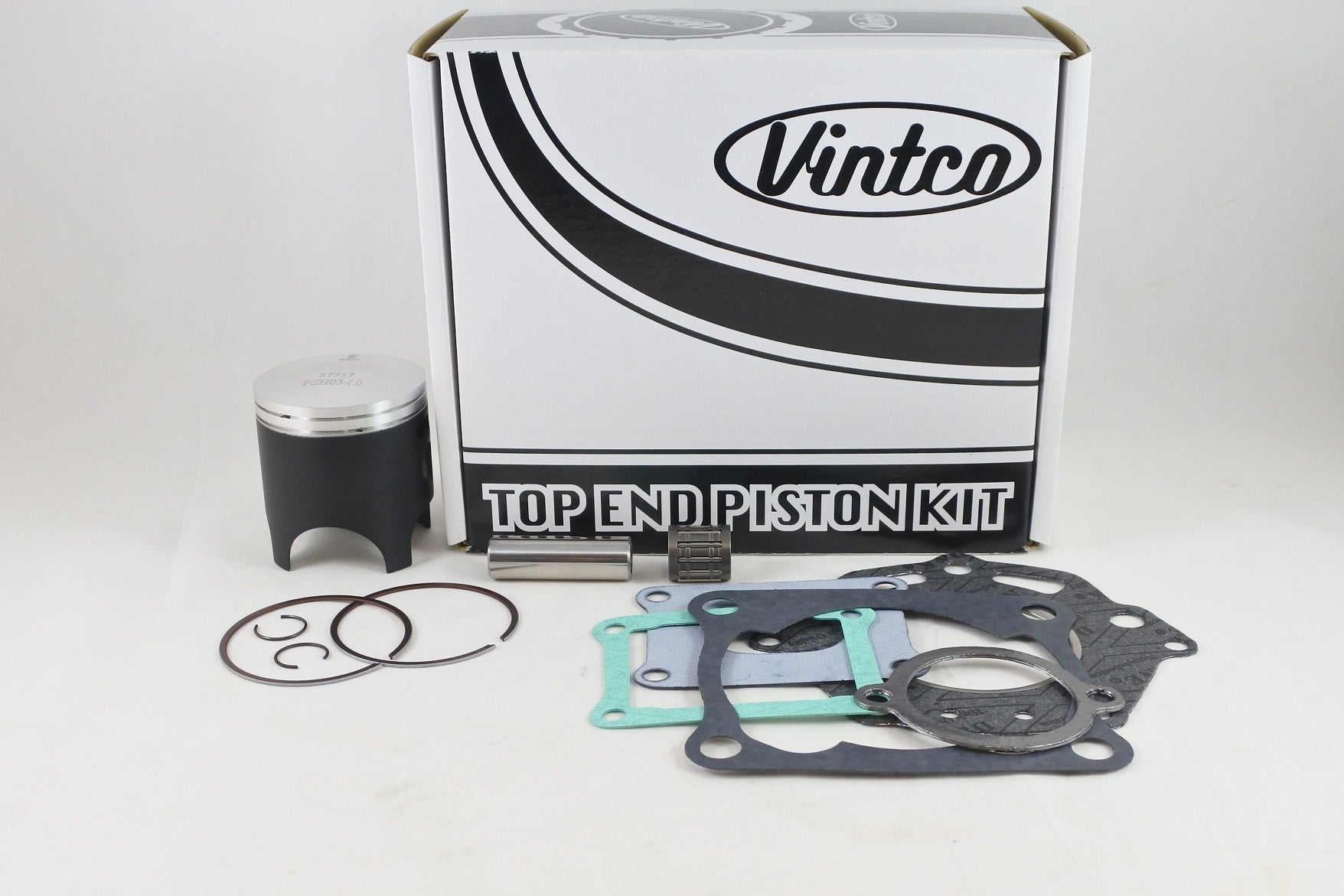

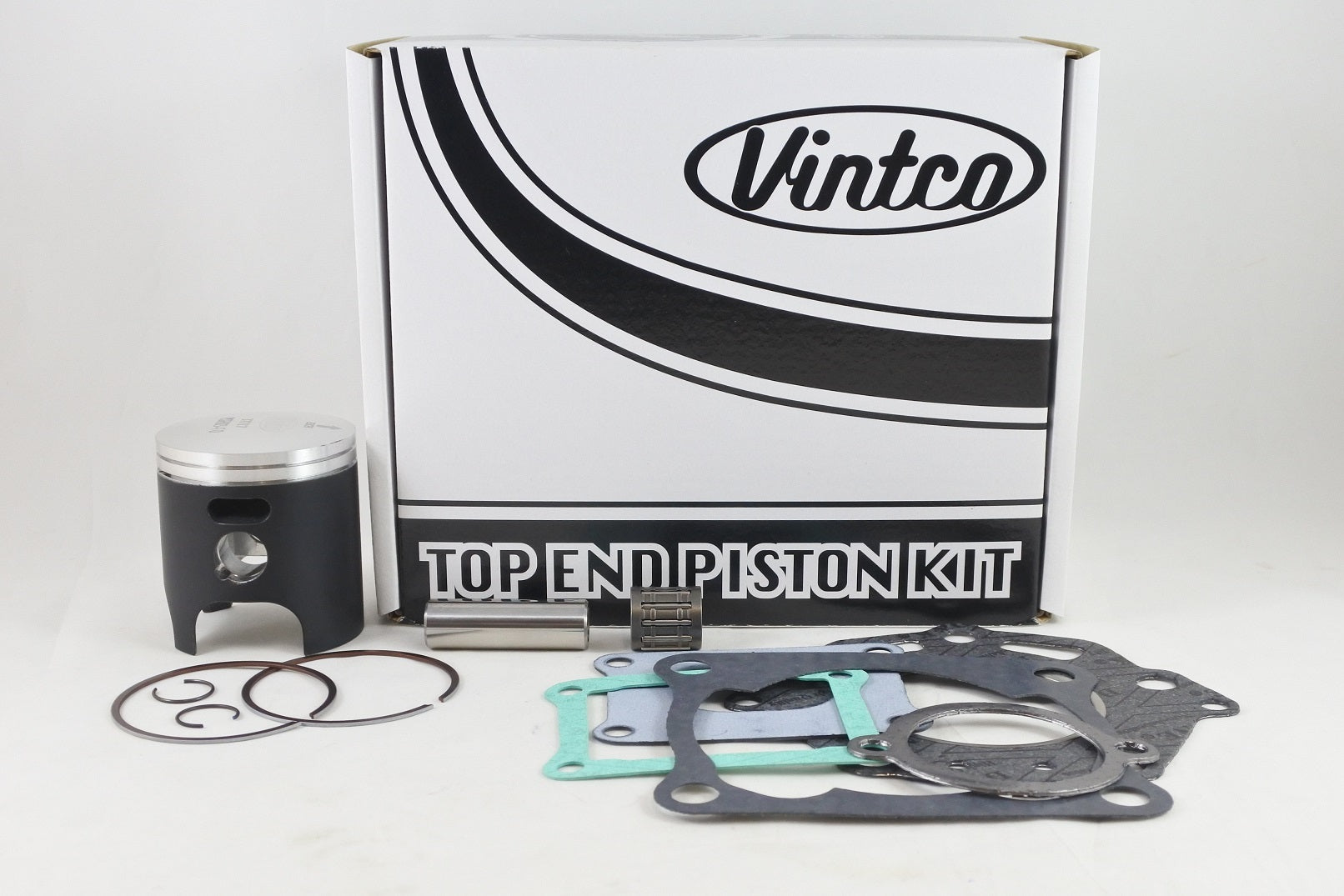

This VintCo top end piston kit is designed for the 1983 Honda CR125 and provides the main components required for a top-end rebuild in one package. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production methods for OEM-equivalent or better fit and performance. The kit is supplied as a package priced at 10% less than buying the included items individually, and other size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gaskets
• Supplied with exhaust pipe gasket
• Intended for OEM-equivalent or better fit and performance
• OEM part number references provided for exact fitment

Specifications

• VintCo Part Number: KTH14-1.0
• Product type: Top End Piston Kit
• Nominal piston size: 56.5 mm
• Oversize: +1.0 mm
• Piston measurement: 56.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-306
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18291-KA3-306

Vehicle Fitments

• 1983 Honda CR125
