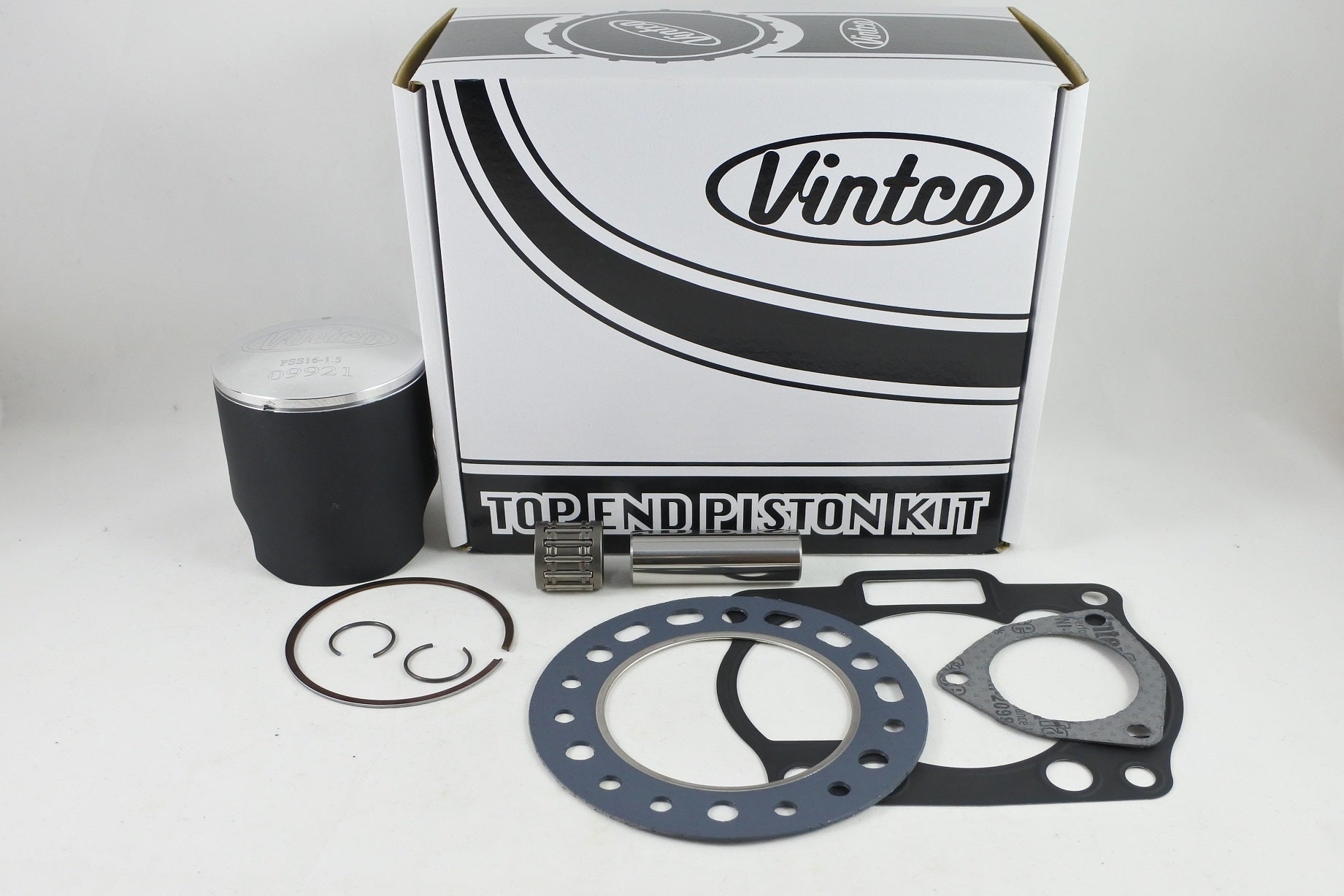

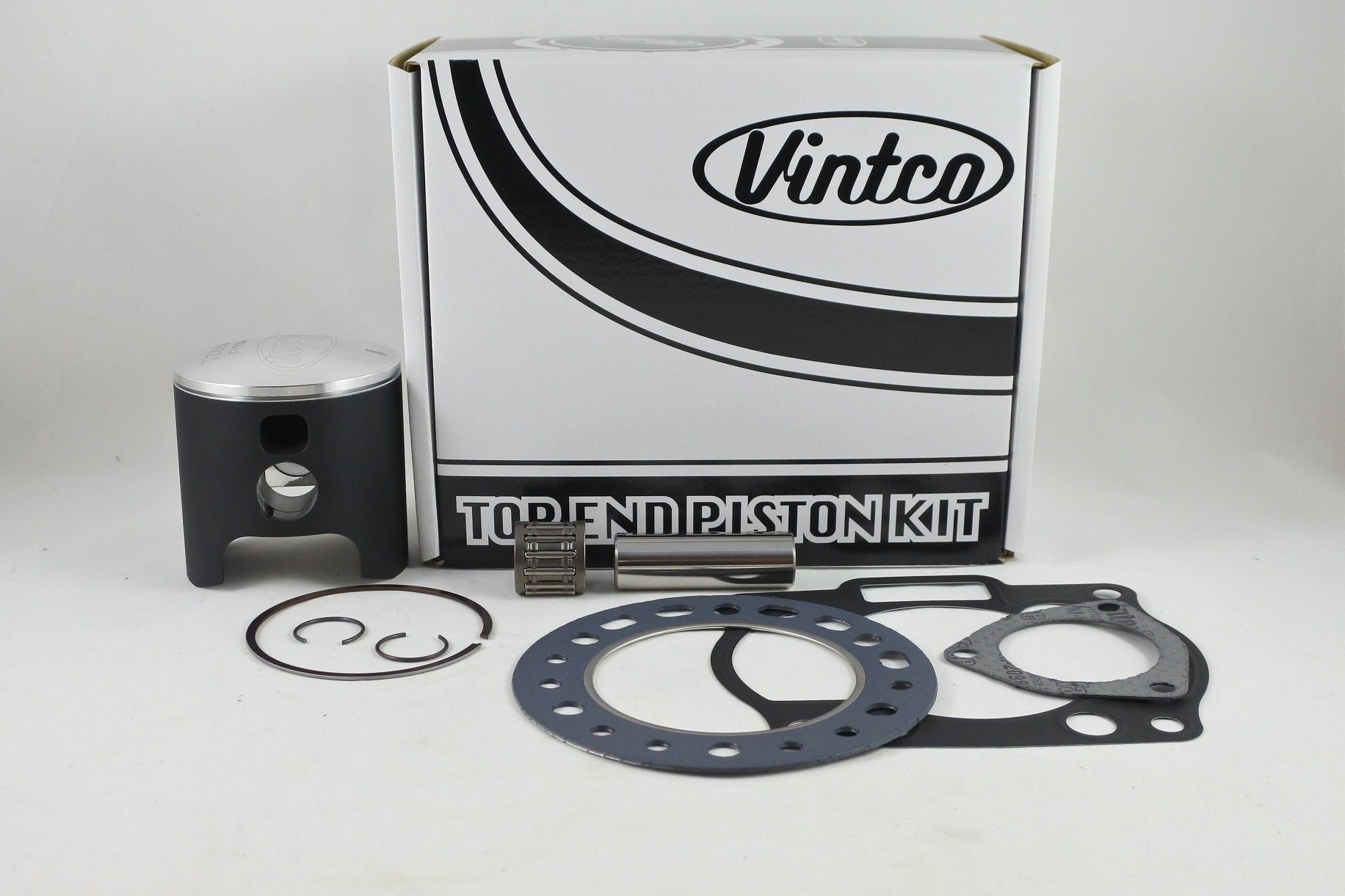

TOP END PISTON KIT 82-85 SUZUKI RM 250 71.5mm 1.5mm OVER VINTCO KTS21-1.5

VintCo top end piston kit KTS21-1.5 is a complete rebuild kit for Suzuki RM250 models from 1982 to 1985. It includes a piston, rings, pin and clips, a wrist pin bearing, and a full top end gasket kit to support straightforward top end rebuild work. The kit is manufactured using modern materials and production methods for OEM-equivalent fitment and performance, and is supplied as a package priced 10% lower than purchasing the individual components separately. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes top end bearing
• Includes full top end gasket kit
• Includes cylinder base gasket
• Includes exhaust pipe gasket
• Designed for Suzuki RM250 models from 1982 to 1985
• Built for OEM-equivalent fitment and performance
• Additional size options available

Specifications

• VintCo Part Number: KTS21-1.5
• Bore size: 71.5 mm
• Oversize: +1.5 mm
• Piston diameter: 71.44 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder base gasket: 11141-13A60
• Cylinder base gasket: 11241-14600-H17
• Exhaust pipe gasket: 14181-16300-H17

Vehicle Fitments

• 1982 Suzuki RM250
• 1983 Suzuki RM250
• 1985 Suzuki RM250
