TOP END PISTON KIT 82-85 SUZUKI RM 250 70.5mm 0.5mm OVER VINTCO KTS21-0.5
  • TOP END PISTON KIT 82-85 SUZUKI RM 250 70.5mm 0.5mm OVER VINTCO KTS21-0.5
  • TOP END PISTON KIT 82-85 SUZUKI RM 250 70.5mm 0.5mm OVER VINTCO KTS21-0.5
  • TOP END PISTON KIT 82-85 SUZUKI RM 250 70.5mm 0.5mm OVER VINTCO KTS21-0.5
  • TOP END PISTON KIT 82-85 SUZUKI RM 250 70.5mm 0.5mm OVER VINTCO KTS21-0.5
TOP END PISTON KIT 82-85 SUZUKI RM 250 70.5mm 0.5mm OVER VINTCO KTS21-0.5

TOP END PISTON KIT 82-85 SUZUKI RM 250 70.5mm 0.5mm OVER VINTCO KTS21-0.5

£215.34 GBP
Taxes included. Shipping calculated at checkout.

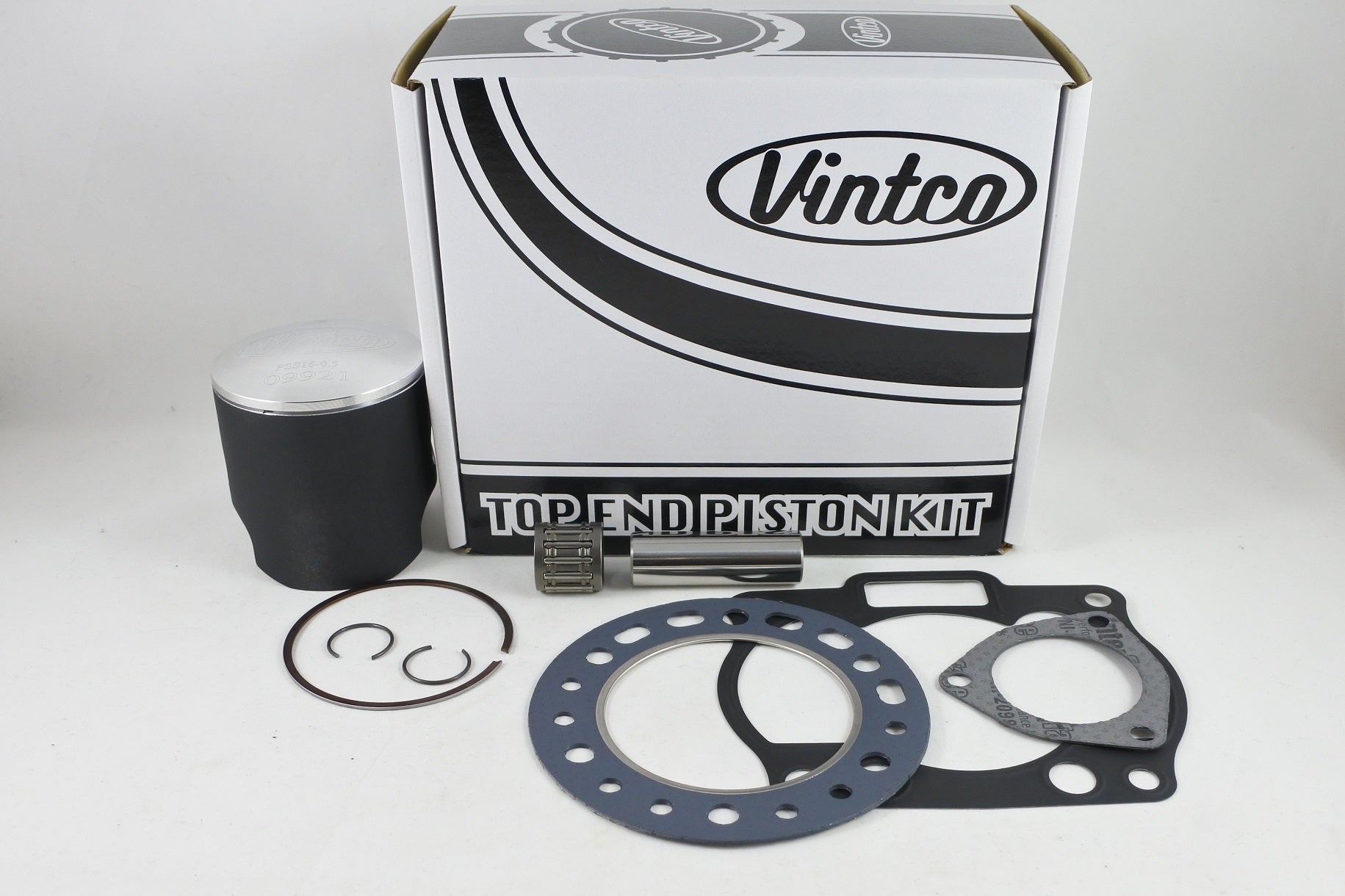

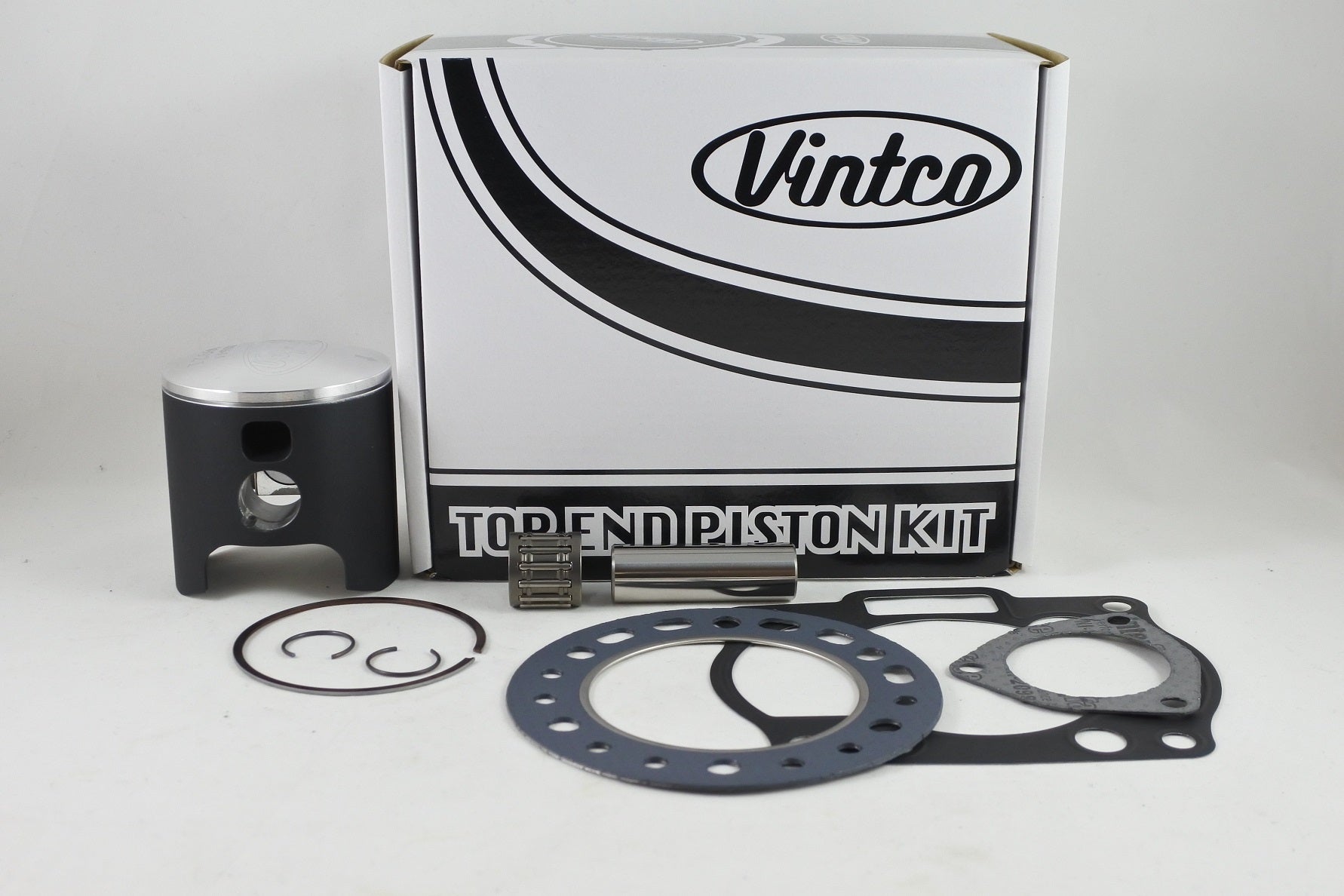

This top end piston kit is for 1982-1985 Suzuki RM250 models and is supplied as a complete rebuild package with a VintCo piston kit, top end bearing and full top end gasket kit. It is designed to provide OEM-equivalent fitment and performance for top end rebuild work, using modern manufacturing methods and materials. This version is a 70.5 mm bore, +0.5 mm oversize kit.

Features

  • Complete top end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes top end bearing
  • Includes full top end gasket kit
  • Includes wrist pin bearing
  • Suitable for 1982-1985 Suzuki RM250 models
  • Produced for OEM-equivalent fitment and performance
  • Kit price is 10% lower than purchasing the components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTS21-0.5
  • Bore size: 70.5 mm
  • Oversize: +0.5 mm
  • Piston size: 70.44 mm
  • Piston clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MoS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • 11141-13A60 - Cylinder base gasket
  • 11241-14600-H17 - Cylinder base gasket
  • 14181-16300-H17 - Exhaust pipe gasket

Vehicle Fitments

  • 1982 Suzuki RM250
  • 1983 Suzuki RM250
  • 1984 Suzuki RM250
  • 1985 Suzuki RM250
