TOP END PISTON KIT 82-83 SUZUKI RM 125 55.50 1.5mm OVER VINTCO KTS16-1.5

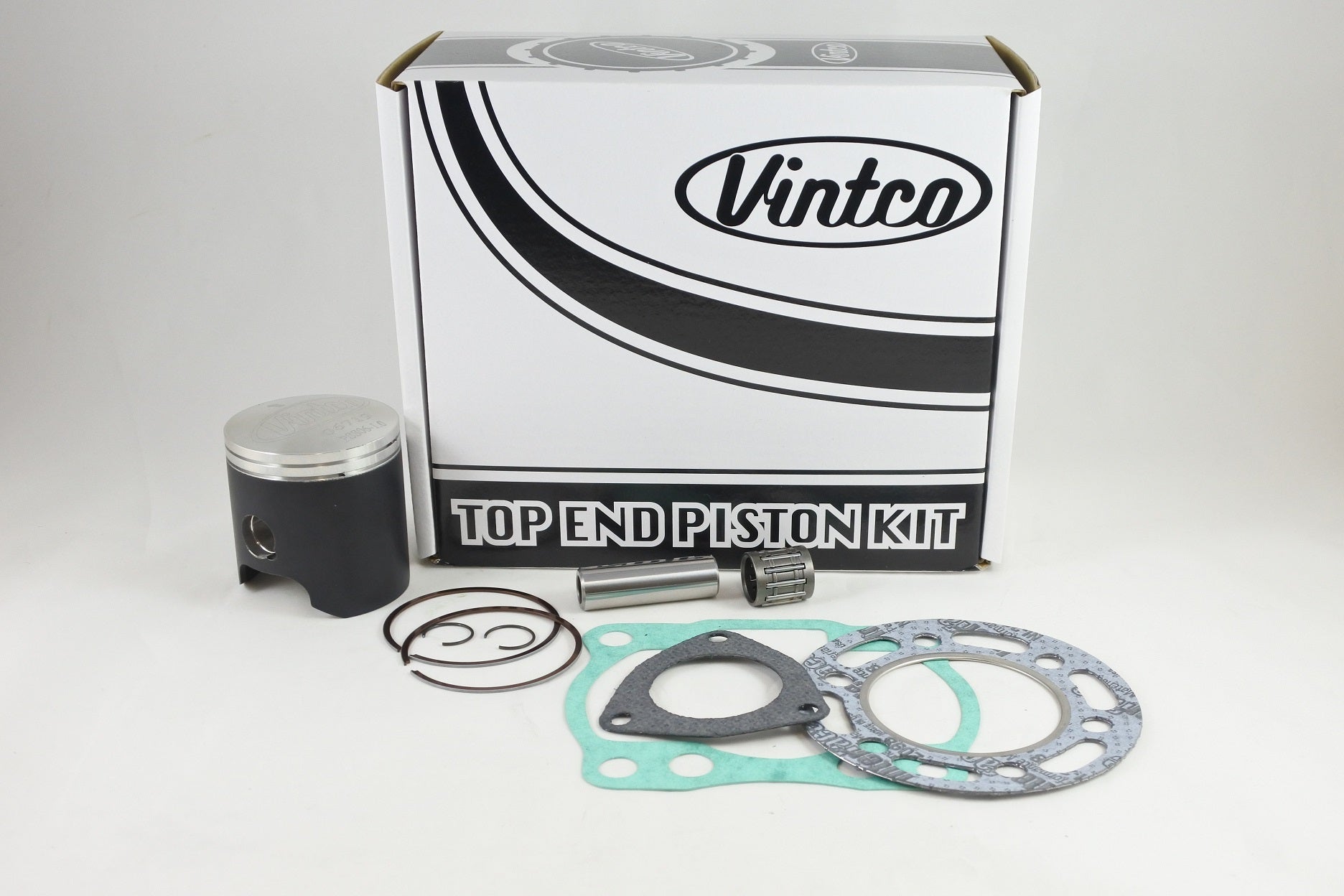

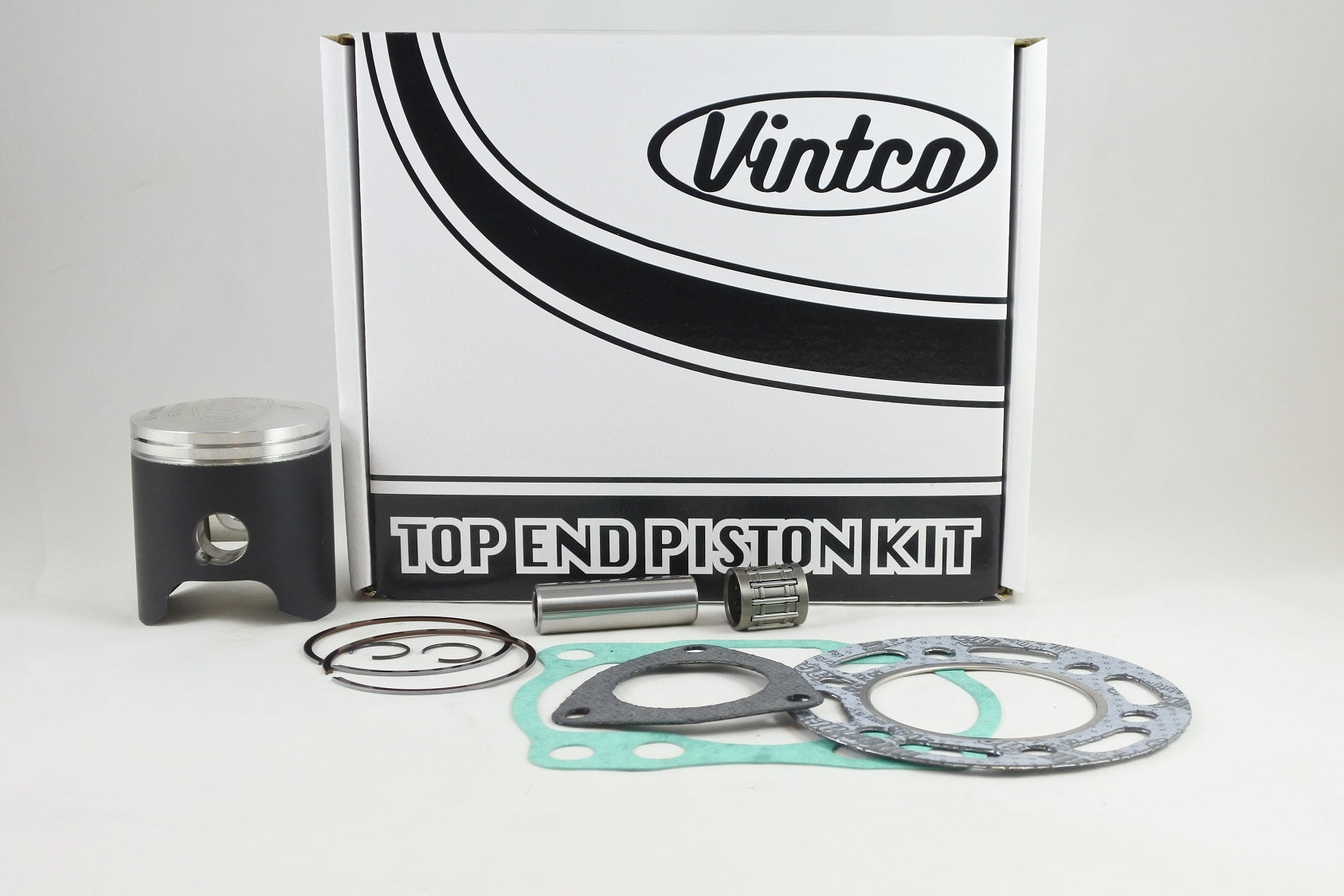

This top end piston kit is for the 1982-1983 Suzuki RM125 and is supplied as a complete rebuild package for the top end. It includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set including head, base, intake and exhaust gaskets. The kit is listed as 55.50 1.5 mm over and includes a 55.44 mm +1.50 mm oversize piston with 0.06 mm clearance. Components are manufactured using modern materials and processes for OEM-equivalent fitment and performance, and the kit pricing is stated as 10% lower than purchasing the components individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Contains head gasket
• Contains base gasket
• Contains intake gasket
• Contains exhaust gasket
• Intended for 1982-1983 Suzuki RM125 models
• OEM part numbers provided for fitment verification
• MoS2-coated piston supports running-in
• Additional size options are available

Specifications

• VintCo Part Number: KTS16-1.5
• Piston size: 55.44 mm
• Oversize: +1.50 mm
• Listed size: 55.50 1.5 mm over
• Piston clearance: 0.06 mm
• Forged piston
• German MoS2 coating

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14120-H17
• Base gasket: 11241-14110-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022
• Wrist pin bearing: 09263-14024

Vehicle Fitments

• 1982 Suzuki RM125
• 1983 Suzuki RM125
