TOP END PISTON KIT 82-83 SUZUKI RM 125 54mm STANDARD VINTCO KTS16-00

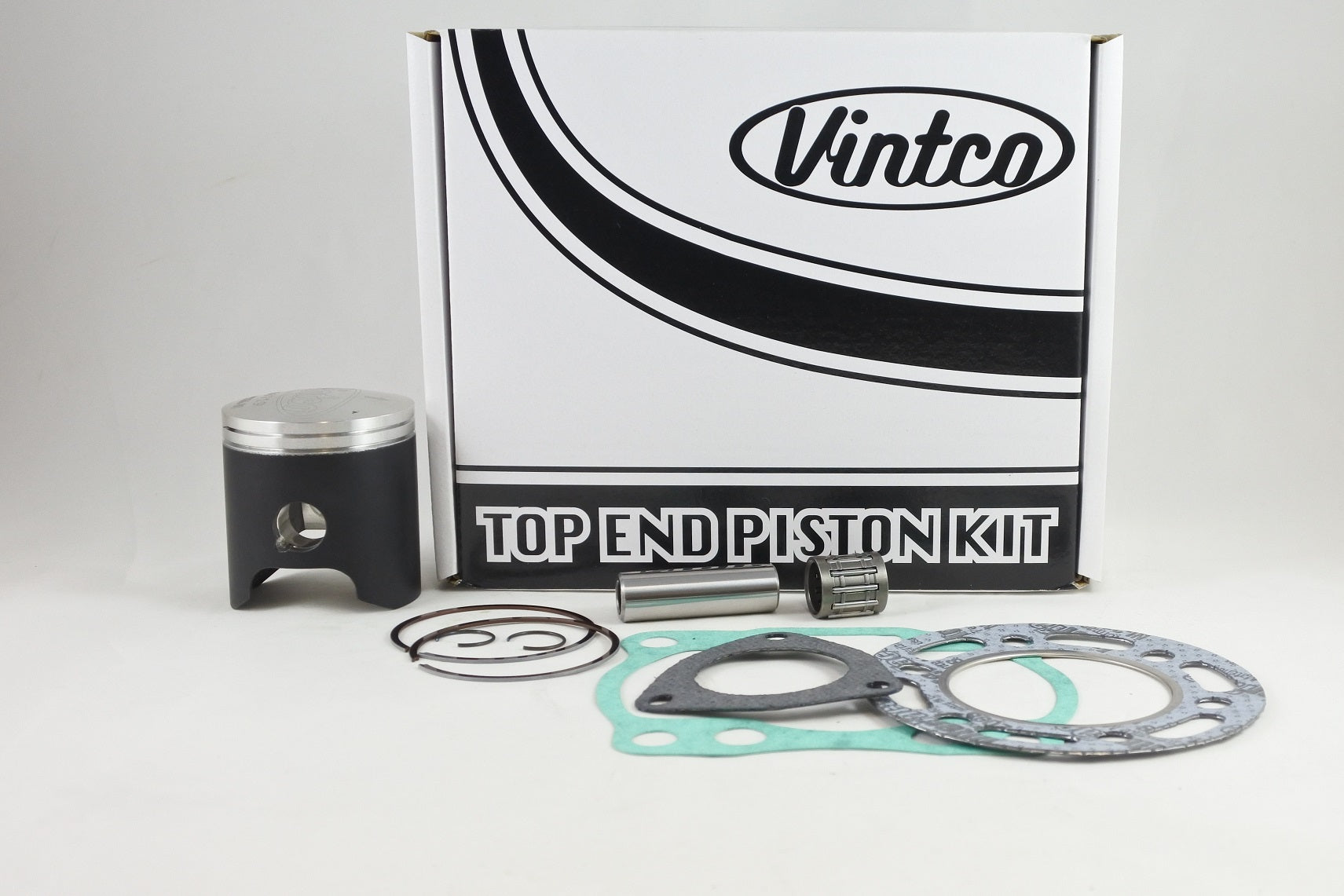

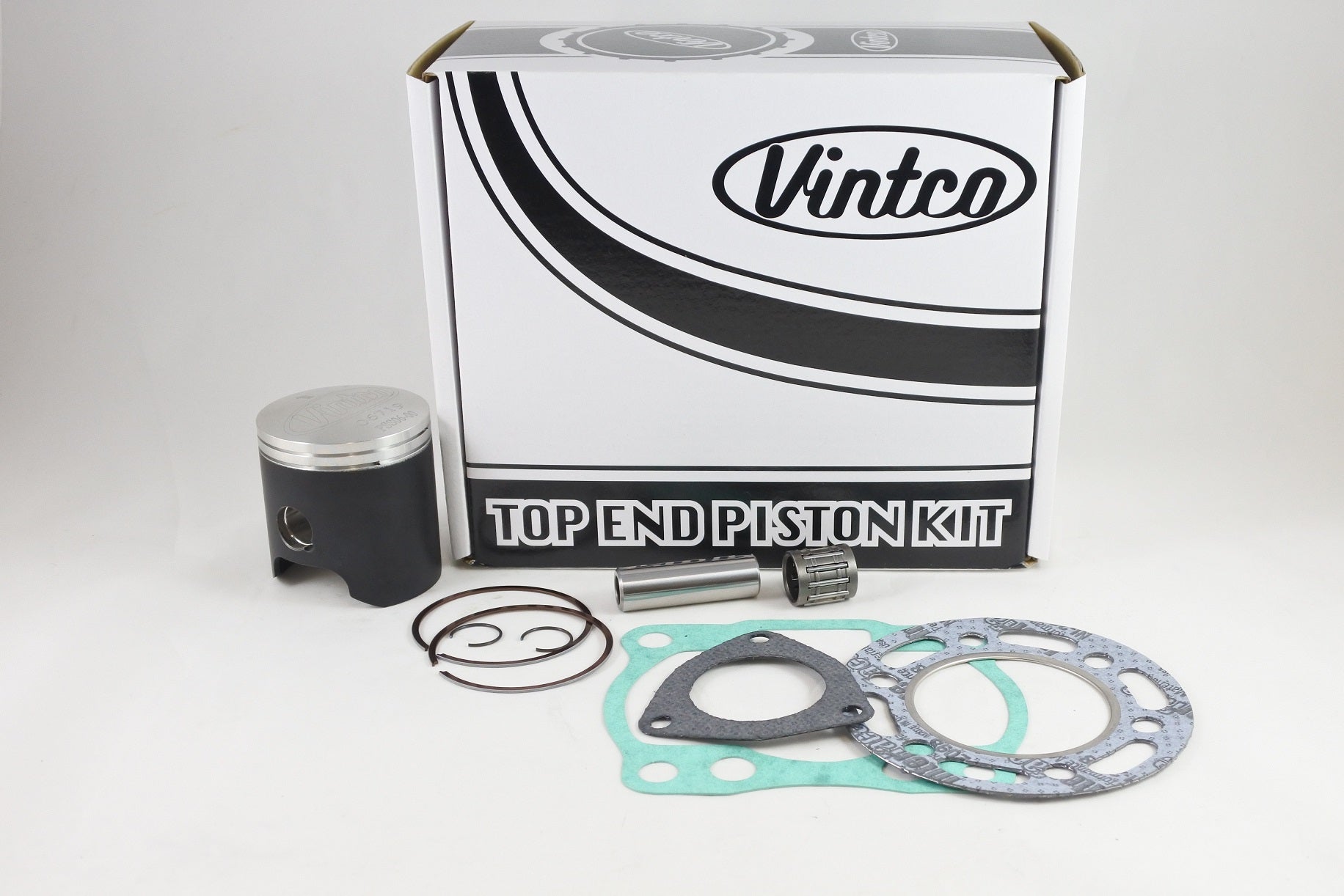

VintCo KTS16-00 is a complete top end piston kit for 1982-1983 Suzuki RM125 models. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance, and the kit price is 10% lower than purchasing the parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Forged piston with German MOS2 coating for initial running-in
• Designed for exact fitment using OEM cross-reference numbers
• Additional size options are available

Specifications

• VintCo Part Number: KTS16-00
• Standard size
• Nominal piston size: 54 mm
• Piston diameter: 53.94 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14120-H17
• Base gasket: 11241-14110-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022
• Wrist pin bearing: 09263-14024

Vehicle Fitments

• 1982 Suzuki RM125
• 1983 Suzuki RM125
