TOP END PISTON KIT 82-83 HONDA CR 480 90.5mm +1.5mm OVER VINTCO KTH28-1.5

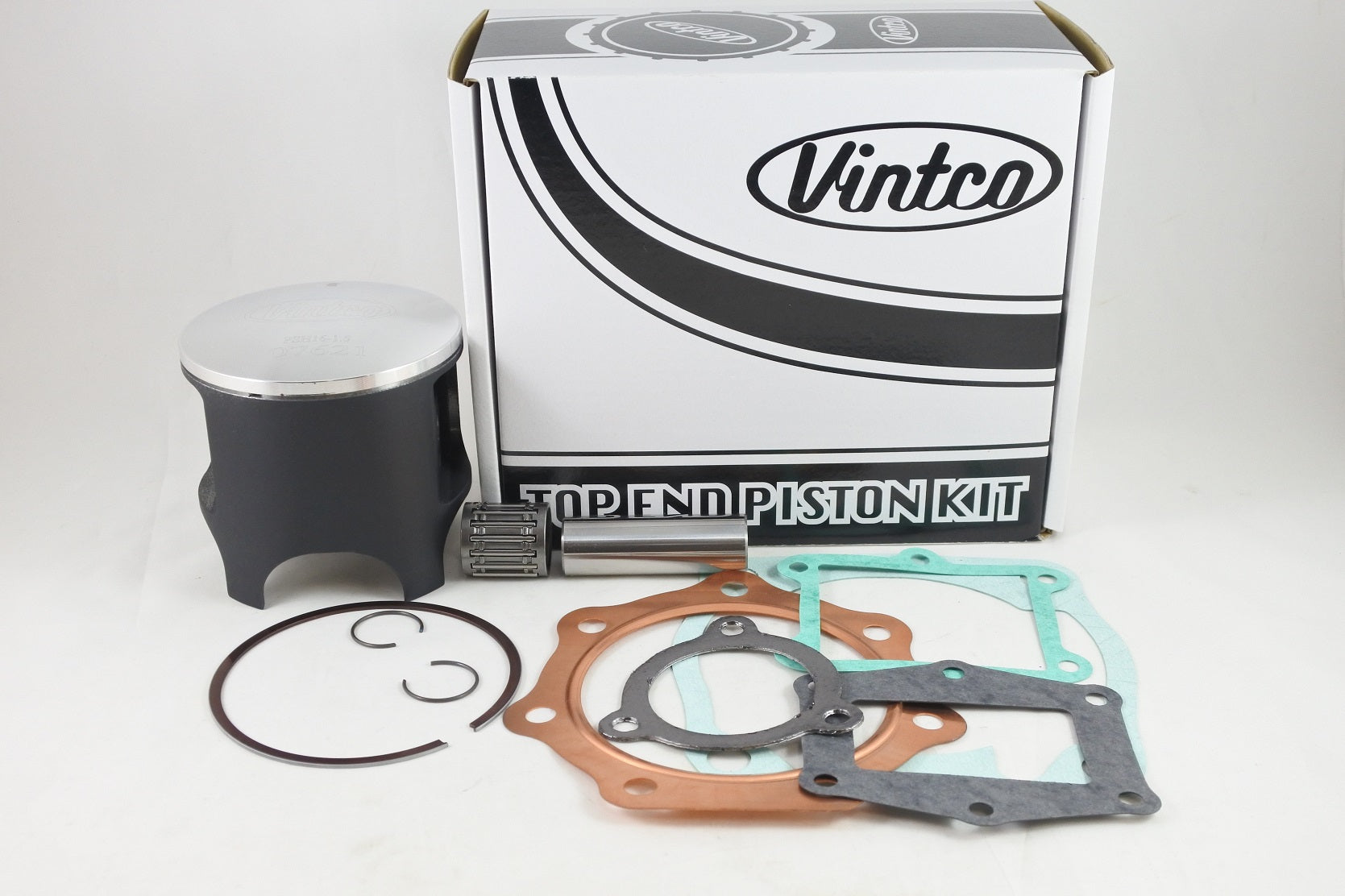

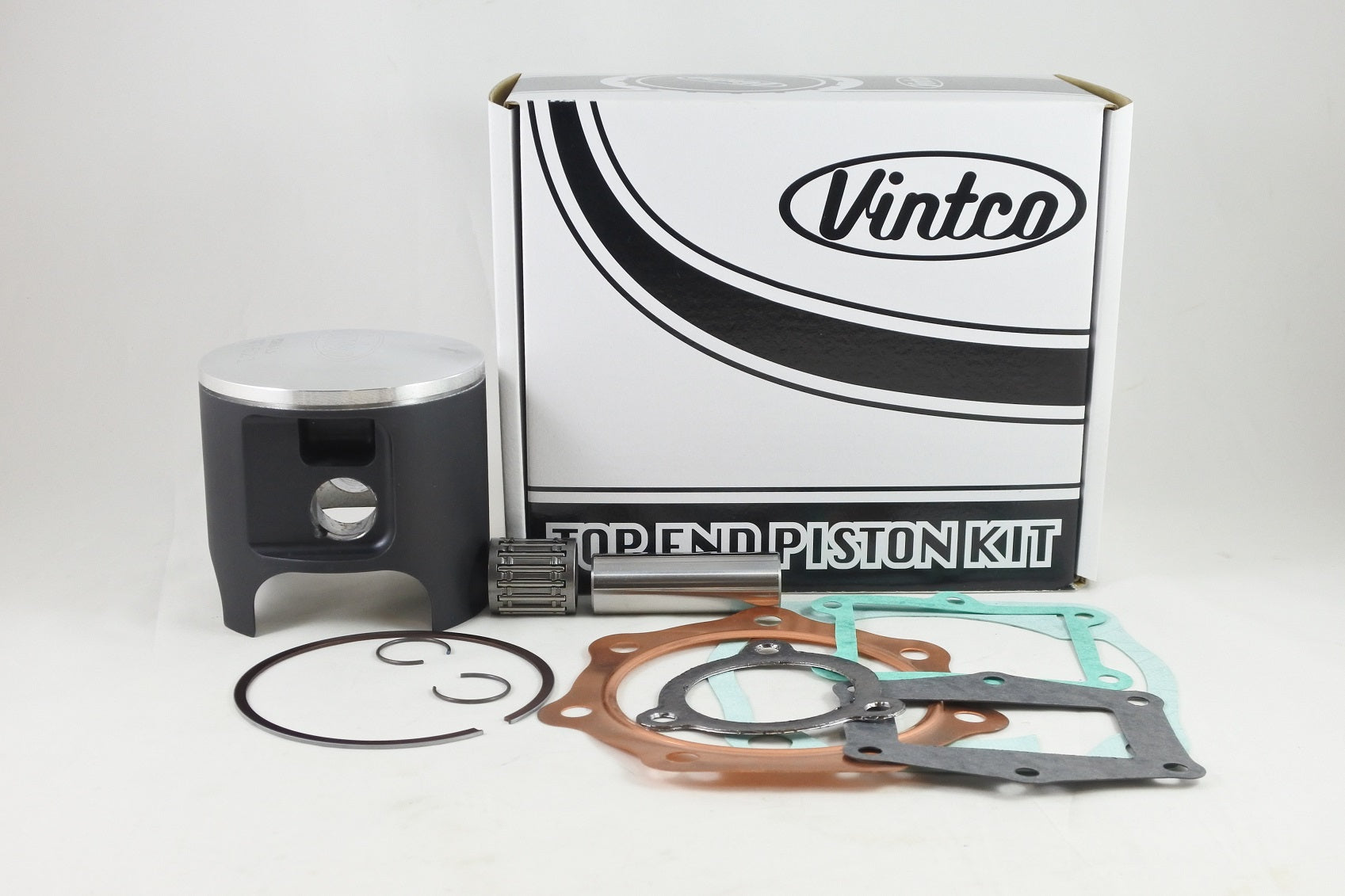

VintCo top end piston kit KTH28-1.5 is a complete rebuild kit for 1982–1983 Honda CR480 models, supplied with a 90.5 mm nominal (+1.5 mm oversize) piston assembly, rings, pin, clips, wrist pin bearing and a full top-end gasket set. It is intended to provide the parts required for a straightforward top-end rebuild with OEM-equivalent fitment and performance. The kit is listed at 10% less than purchasing the components individually, and additional size options are available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, two intake gaskets and exhaust pipe gasket
• Intended for 1982–1983 Honda CR480 models
• Manufactured with modern materials and manufacturing techniques for OEM-equivalent fitment and performance
• Additional size options are available
• Kit price includes a 10% discount compared with individual components

Specifications

• VintCo Part Number: KTH28-1.5
• Product type: Top End Piston Kit
• Nominal piston size: 90.5 mm
• Oversize: +1.5 mm
• Piston diameter: 90.42 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA5-770
• Base gasket: 12191-KA5-308
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1982 Honda CR480
• 1983 Honda CR480
