TOP END PISTON KIT 82-83 HONDA CR 480 90.0mm OVER VINTCO KTH28-1.0

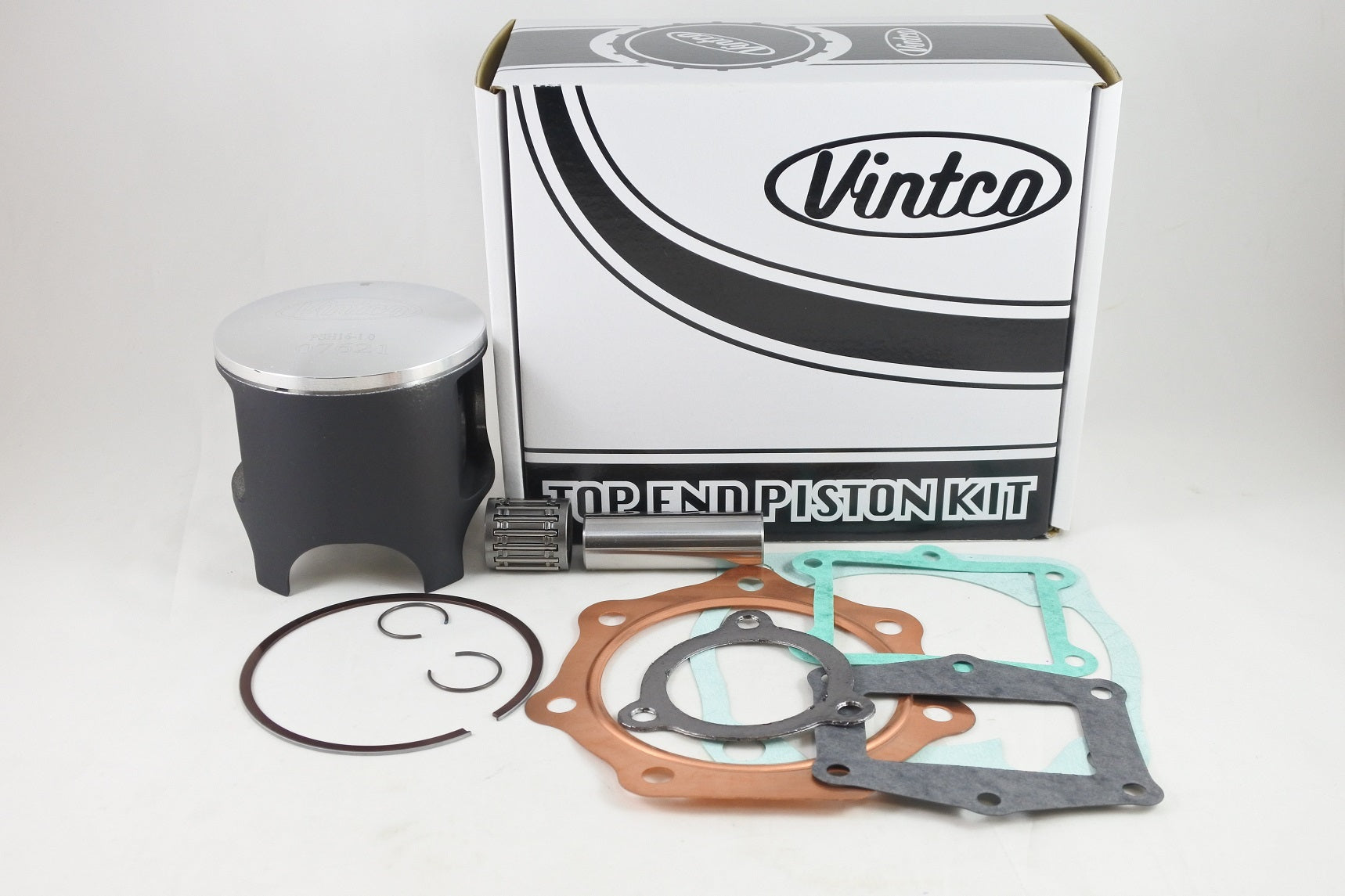

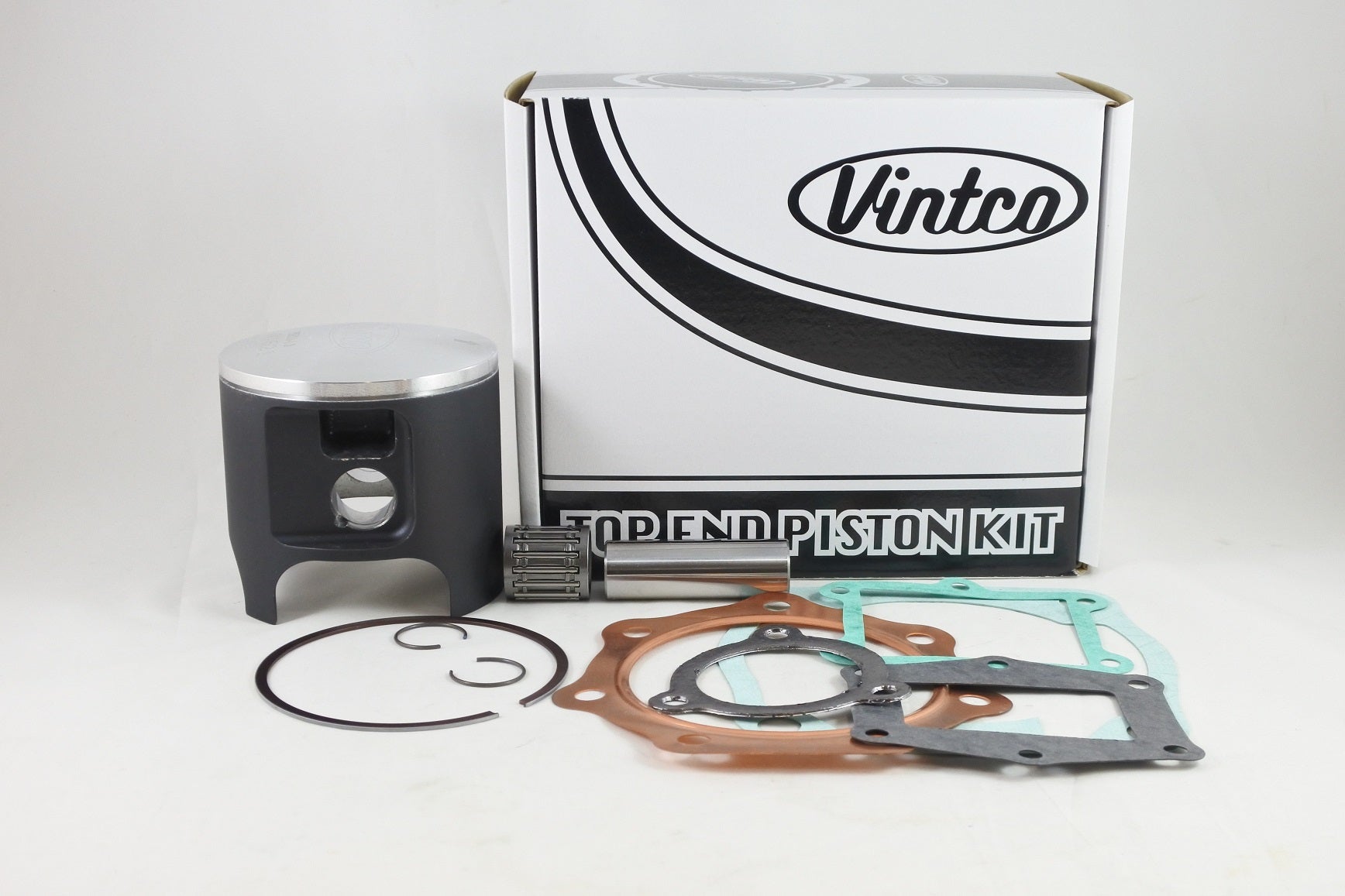

VintCo top end piston kit KTH28-1.0 is a complete rebuild kit for 1982–1983 Honda CR480 models, supplied with a piston, rings, pin, clips, wrist pin bearing and a full top-end gasket set for the head, base, intake and exhaust. This kit is the 90.0 mm size at +1.0 mm over and is produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance. The stated kit price is 10% lower than purchasing the components individually, and additional size options are available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Forged piston
• MOS2-coated piston for running-in
• Intended to simplify top-end rebuild work
• OEM part numbers supplied for exact fitment reference

Specifications

• VintCo Part Number: KTH28-1.0
• Piston size: 89.92 mm
• Oversize: +1.0 mm
• Nominal kit size: 90.0 mm
• Piston clearance: 0.06 mm
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA5-770
• Base gasket: 12191-KA5-308
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1982 Honda CR480
• 1983 Honda CR480
