TOP END PISTON KIT 82-83 HONDA CR 480 89.5mm 0.5mm OVER VINTCO KTH28-0.5
  • TOP END PISTON KIT 82-83 HONDA CR 480 89.5mm 0.5mm OVER VINTCO KTH28-0.5
  • TOP END PISTON KIT 82-83 HONDA CR 480 89.5mm 0.5mm OVER VINTCO KTH28-0.5
  • TOP END PISTON KIT 82-83 HONDA CR 480 89.5mm 0.5mm OVER VINTCO KTH28-0.5
  • TOP END PISTON KIT 82-83 HONDA CR 480 89.5mm 0.5mm OVER VINTCO KTH28-0.5
TOP END PISTON KIT 82-83 HONDA CR 480 89.5mm 0.5mm OVER VINTCO KTH28-0.5

TOP END PISTON KIT 82-83 HONDA CR 480 89.5mm 0.5mm OVER VINTCO KTH28-0.5

£216.27 GBP
Taxes included. Shipping calculated at checkout.

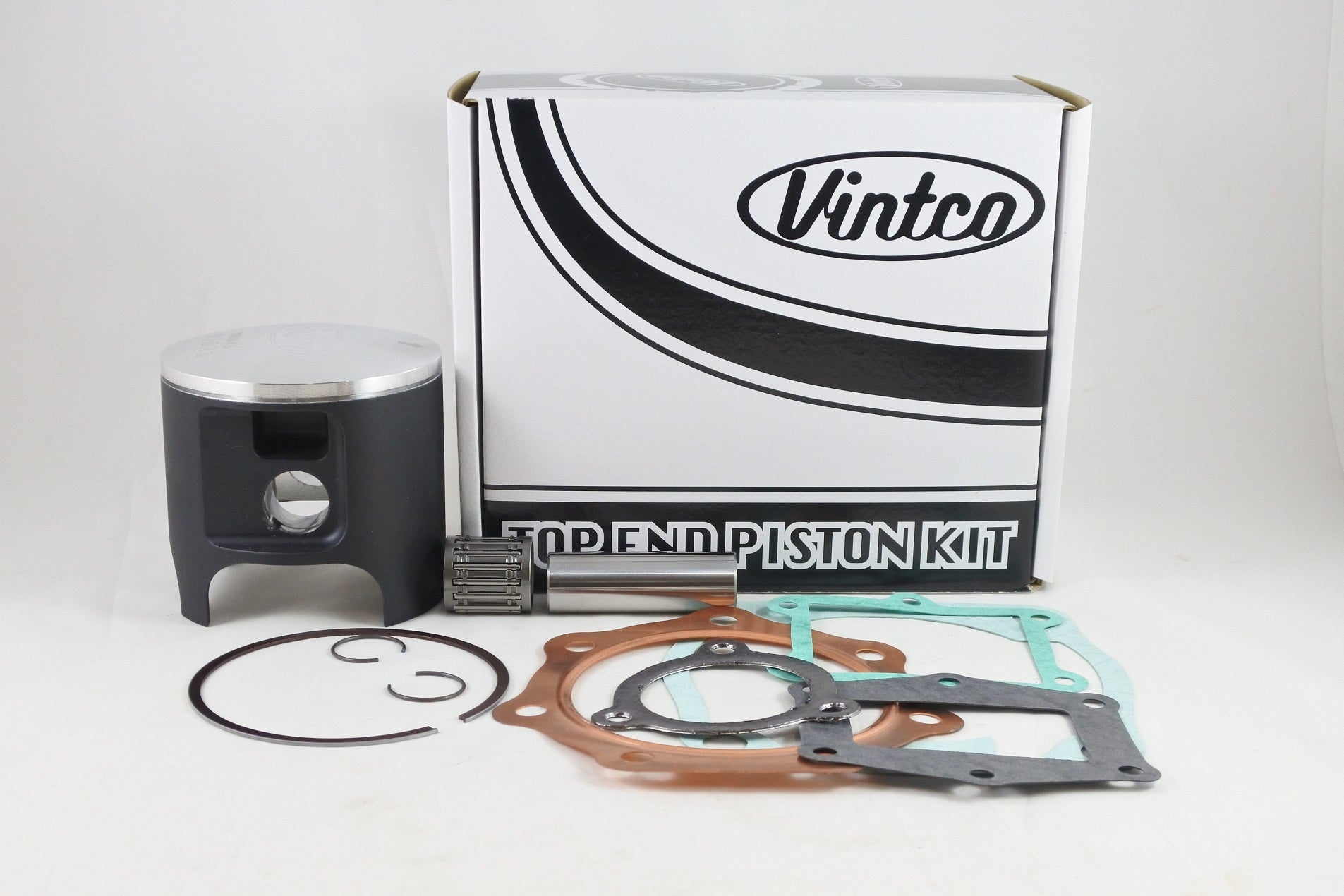

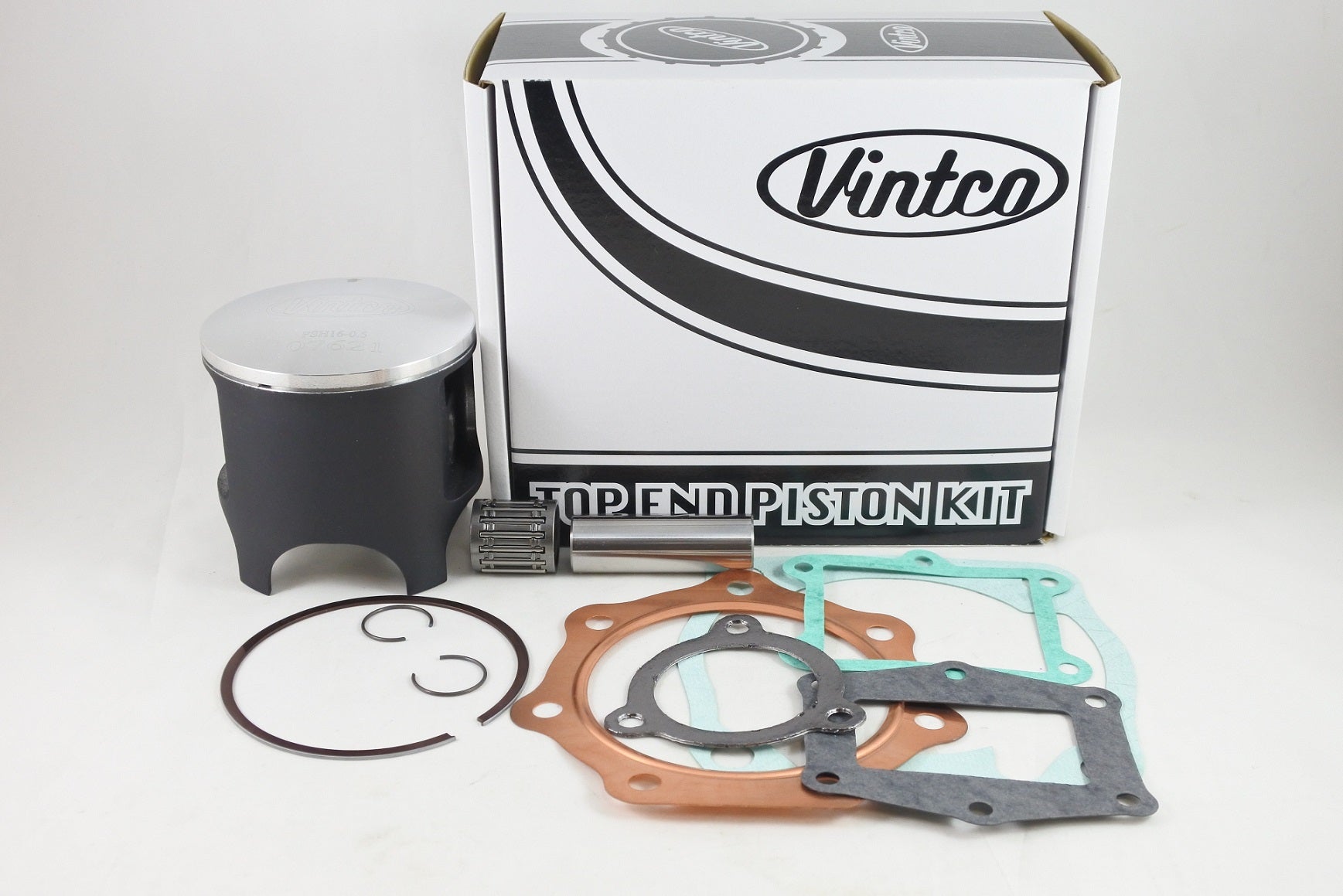

VintCo top end piston kit KTH28-0.5 is a complete top-end rebuild set for 1982-1983 Honda CR480 models. It includes a forged oversize piston with rings, pin and clips, a wrist pin bearing, and a full gasket set comprising the head gasket, base gasket, intake gaskets and exhaust pipe gasket. The components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance.

Features

  • Complete top-end rebuild kit for 1982-1983 Honda CR480
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes head gasket, base gasket, two intake gaskets and exhaust pipe gasket
  • OEM part number references provided for exact fit verification
  • Package price is 10% lower than purchasing the components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTH28-0.5
  • Nominal piston size: 89.5 mm
  • Piston diameter: 89.42 mm
  • Oversize: +0.5 mm
  • Piston clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 12254-KA5-770
  • Base gasket: 12191-KA5-308
  • Intake gasket: 14132-KAE-000
  • Intake gasket: 14133-430-306
  • Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

  • 1982 Honda CR480
  • 1983 Honda CR480
