TOP END PISTON KIT 82-82 YAMAHA YZ 80 48mm 1.0mm OVER VINTCO KTY57-1.0
  • TOP END PISTON KIT 82-82 YAMAHA YZ 80 48mm 1.0mm OVER VINTCO KTY57-1.0
  • TOP END PISTON KIT 82-82 YAMAHA YZ 80 48mm 1.0mm OVER VINTCO KTY57-1.0
  • TOP END PISTON KIT 82-82 YAMAHA YZ 80 48mm 1.0mm OVER VINTCO KTY57-1.0
  • TOP END PISTON KIT 82-82 YAMAHA YZ 80 48mm 1.0mm OVER VINTCO KTY57-1.0
TOP END PISTON KIT 82-82 YAMAHA YZ 80 48mm 1.0mm OVER VINTCO KTY57-1.0

TOP END PISTON KIT 82-82 YAMAHA YZ 80 48mm 1.0mm OVER VINTCO KTY57-1.0

£138.78 GBP
Taxes included. Shipping calculated at checkout.

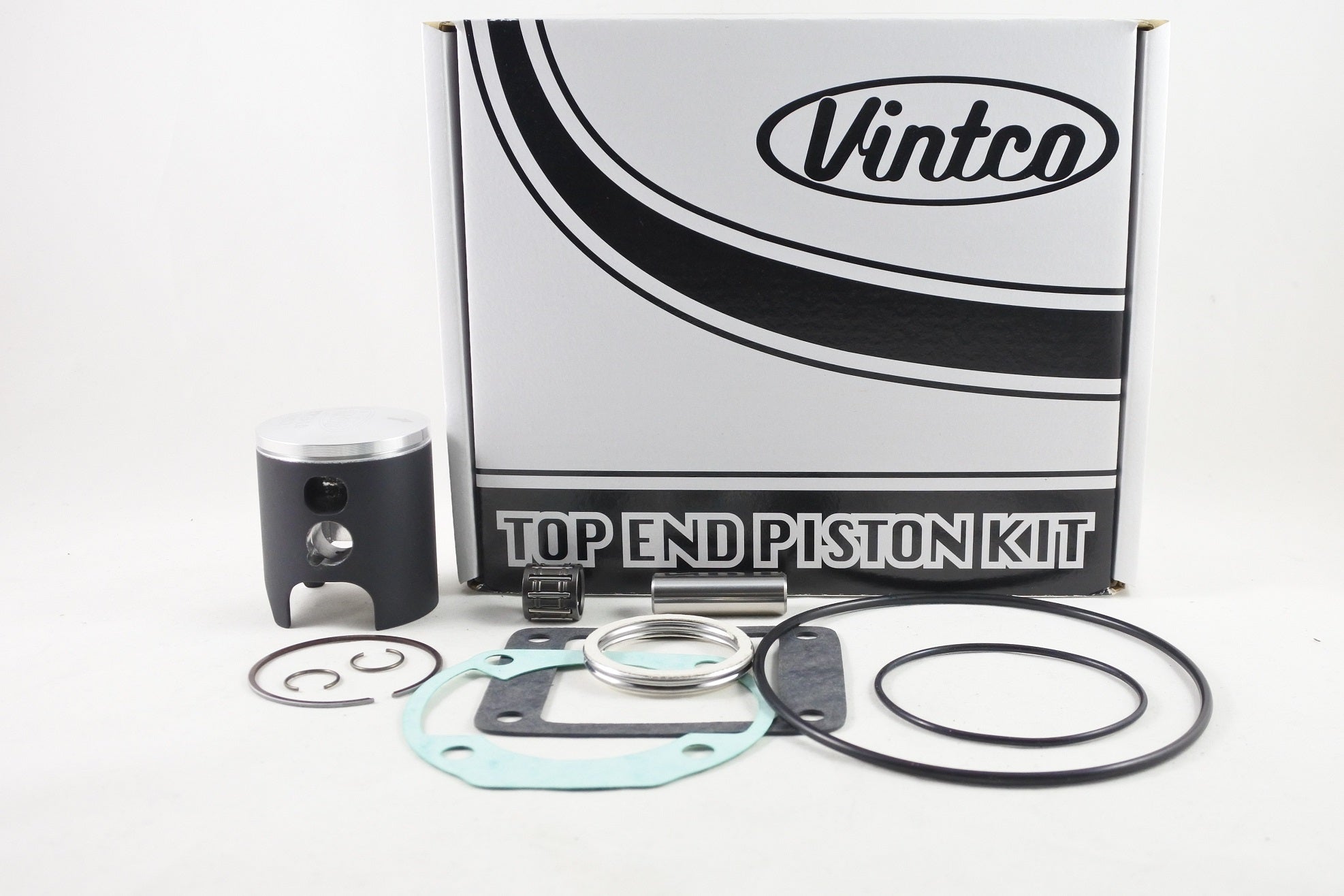

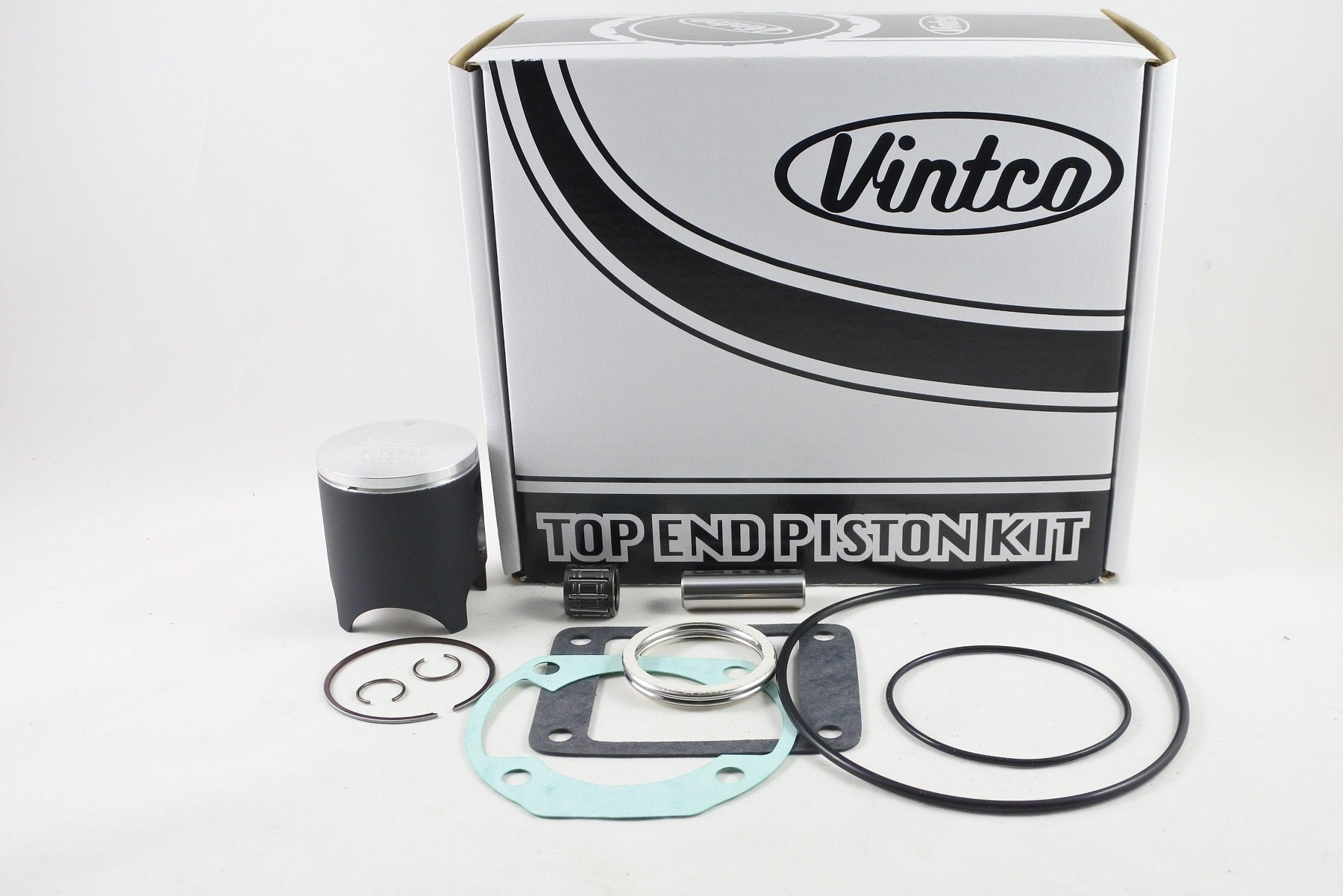

This top end piston kit is designed for the 1982 Yamaha YZ80 and includes a 48 mm, 1.0 mm oversize forged piston with MOS2 coating for running-in, along with the required top end gaskets and a wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the individual items separately.

Features

  • Complete top end piston kit for engine rebuild work
  • Forged piston made in Germany
  • MOS2 coated for running-in
  • Includes cylinder head gaskets
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY57-1.0
  • Piston size: 48 mm
  • Oversize: 1.0 mm
  • Piston measurement: 47.95 mm
  • Clearance: 0.05 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 93211-13109-00
  • Cylinder Head Gasket: 93210-60538-00
  • Cylinder Base Gasket: 2J5-11351-01-00
  • Reed Valve Gasket: 3TT-13621-00-00
  • Exhaust Pipe Gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1982 Yamaha YZ80
