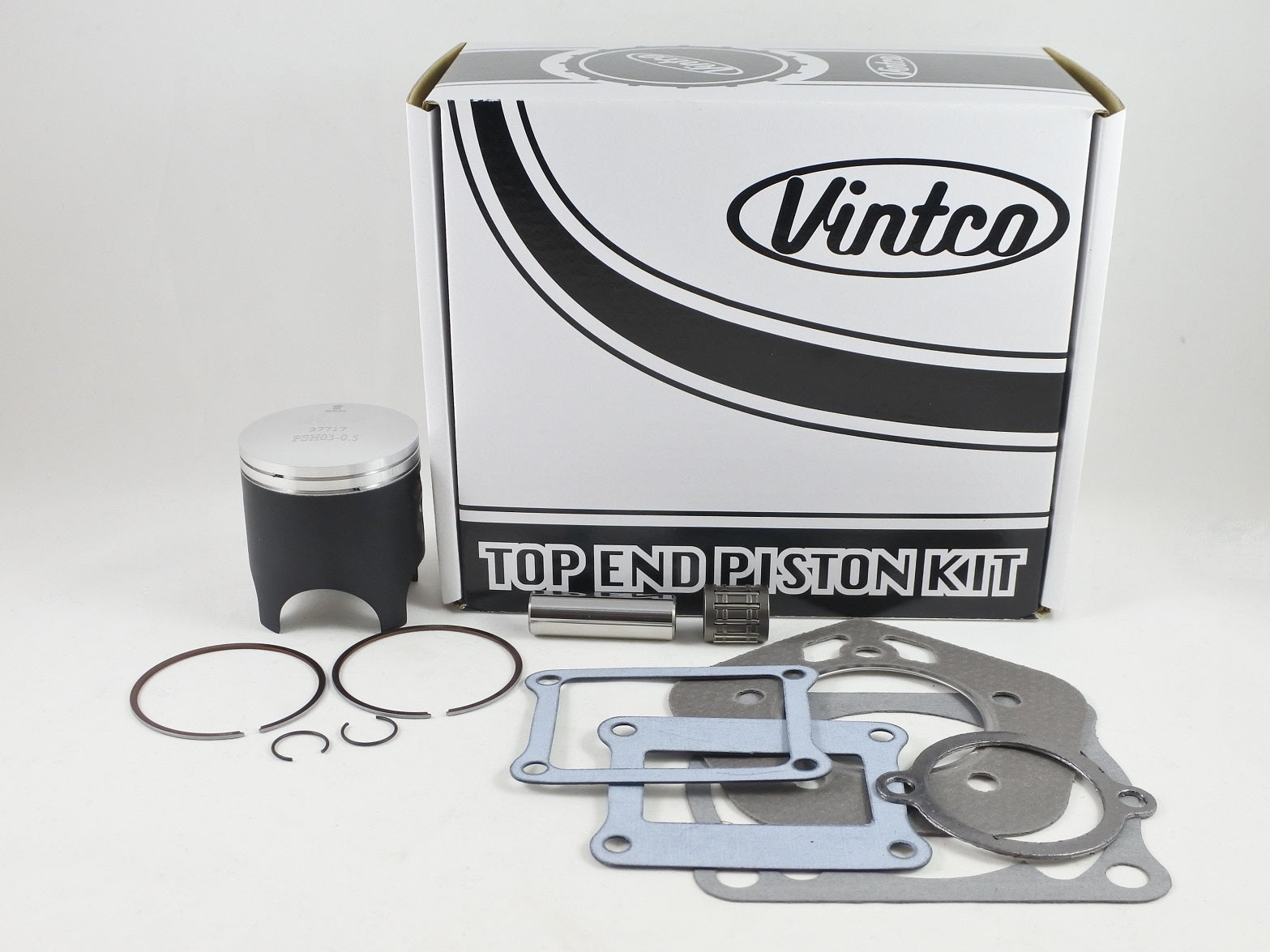

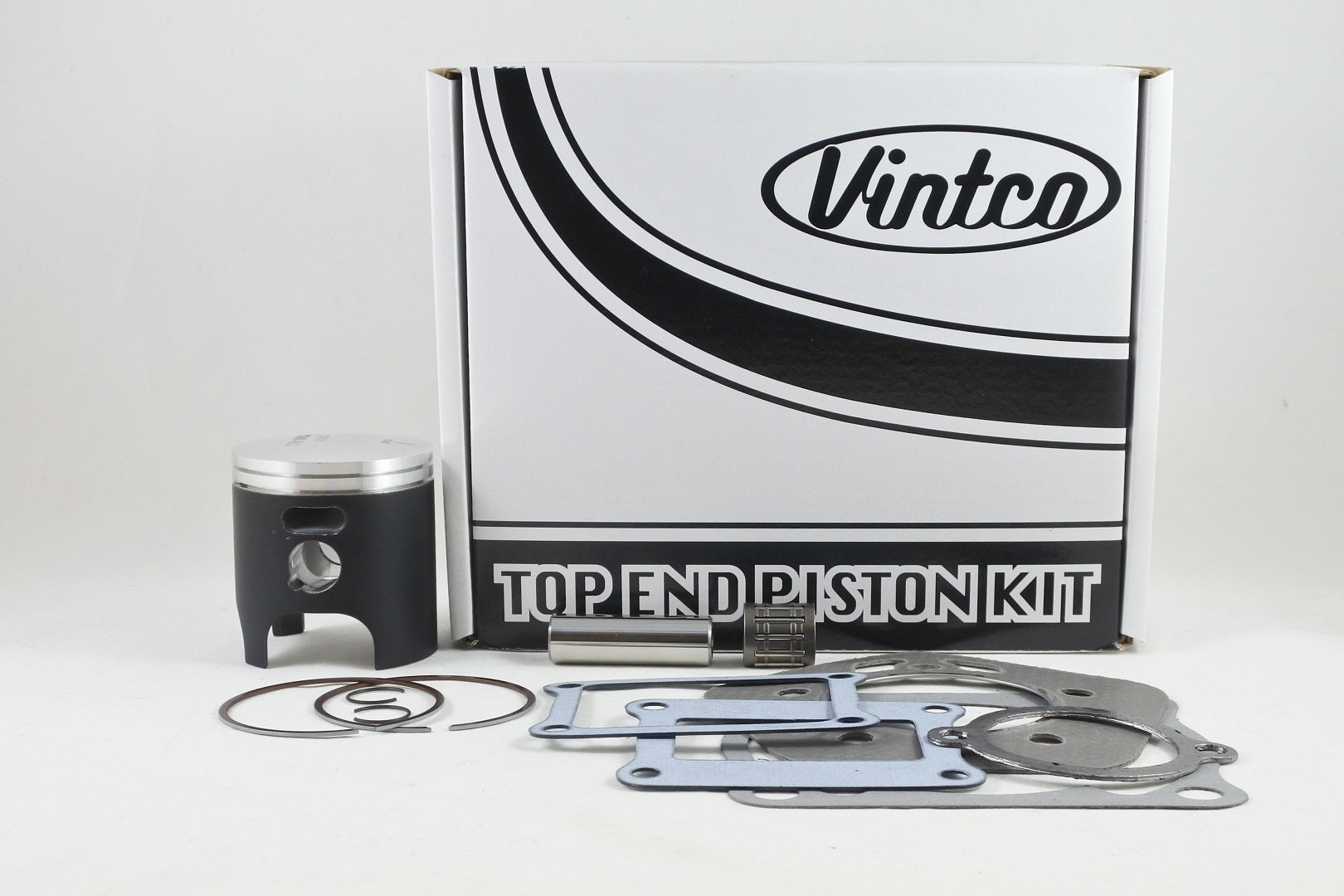

TOP END PISTON KIT 82-82 HONDA CR 125 56.0mm 0.5mm OVER VINTCO KTH13-0.5

This VintCo top end piston kit is a complete rebuild set for the 1982 Honda CR125, supplied with a piston kit, top end bearing and a full top-end gasket set. It is designed for 56.0 mm bore applications at +0.5 mm oversize and includes components manufactured with modern materials and processes for OEM-equivalent or better fit and performance. The kit is supplied as a package priced 10% lower than purchasing the individual components separately, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Intended for exact fitment using referenced OEM part numbers
• Suitable for 1982 Honda CR125 top end rebuilds
• Additional size options available

Specifications

• VintCo Part Number: KTH13-0.5
• Nominal bore size: 56.0 mm
• Oversize: +0.5 mm
• Piston size: 55.94 mm
• Clearance: 0.06 mm
• Piston type: Forged
• Piston coating: MOS2 break-in coating
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-307
• Base gasket: 12191-444-306
• Intake gasket: 14131-444-306
• Intake gasket: 14132-444-306
• Exhaust pipe gasket: 18291-KA3-306

Vehicle Fitments

• 1982 Honda CR125
