TOP END PISTON KIT 81-82 MAICO 490 88.0mm 1.5mm OVER VINTCO KTA06-1.5

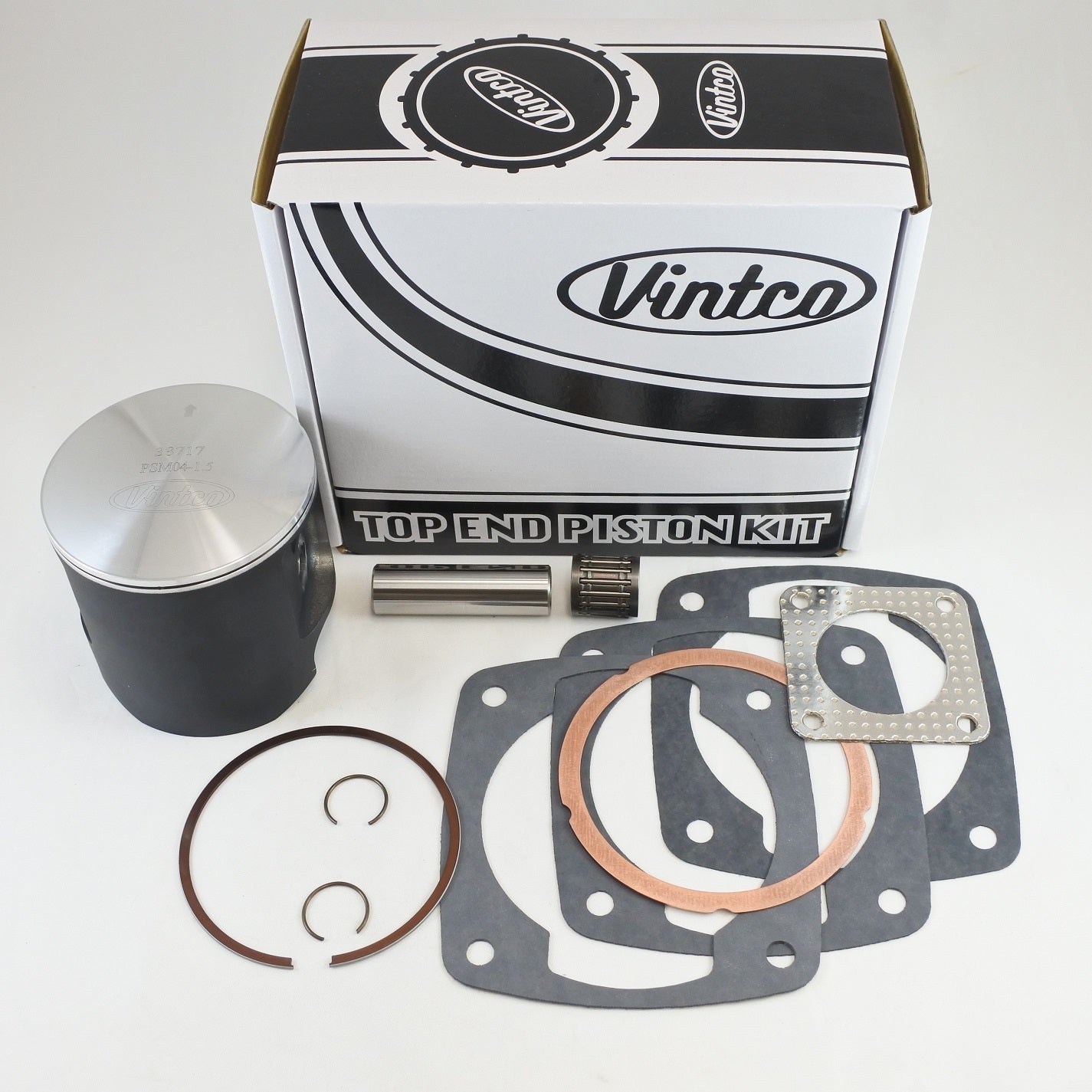

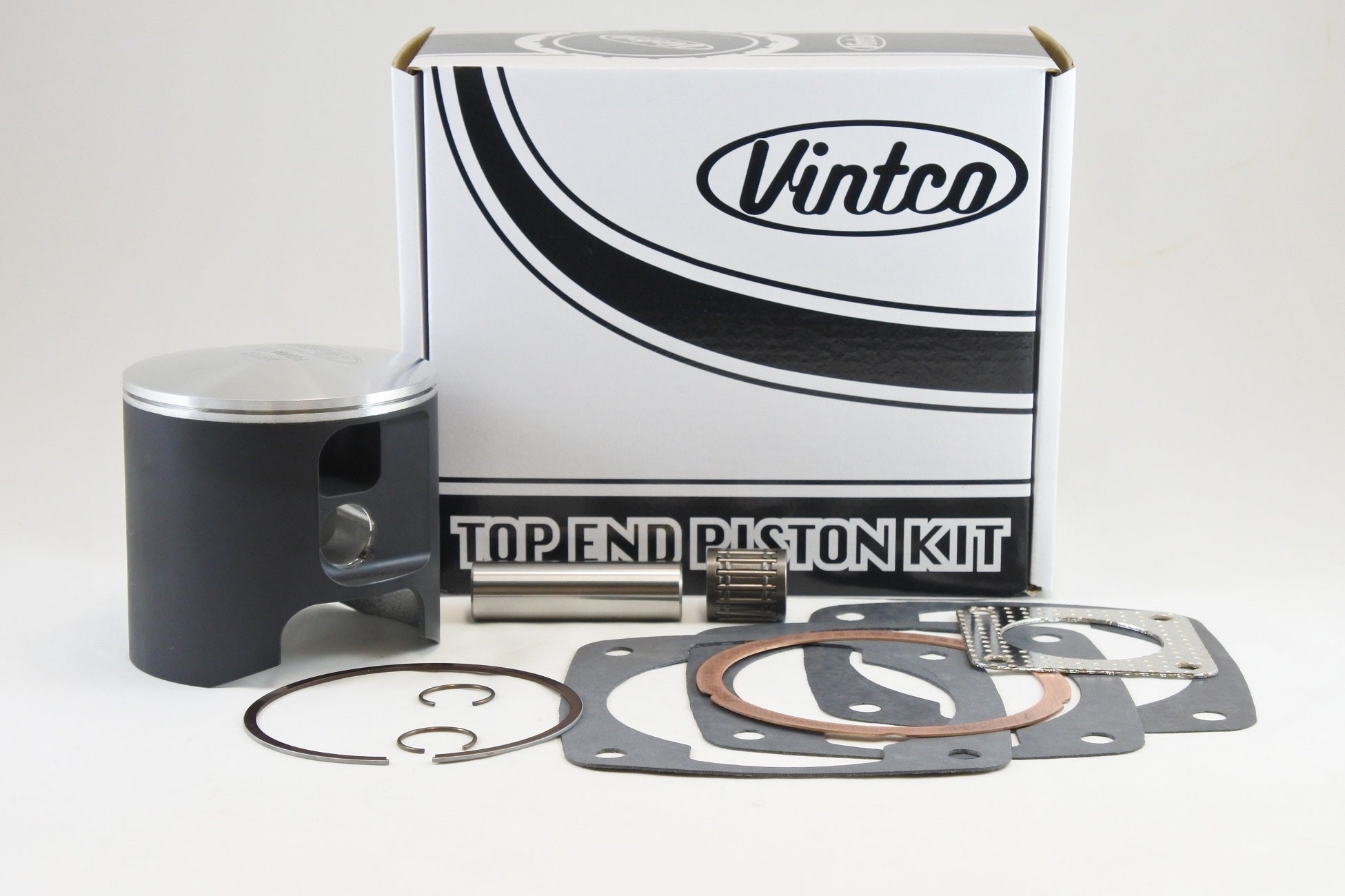

This top end piston kit is designed for 1981–1982 Maico 490 models and provides the components required for a top-end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base and exhaust gaskets. It is manufactured using modern materials and production methods for OEM-compatible fitment and performance. Kit pricing is 10% lower than purchasing the components individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gaskets
• Includes exhaust gasket
• MoS2-coated piston for running-in
• Intended for 1.5 mm oversize applications
• OEM part numbers provided for fitment confirmation
• Additional size options available

Specifications

• VintCo Part Number: KTA06-1.5
• Item Category: Top End Piston Kits
• Piston diameter: 88.0 mm
• Oversize: +1.5 mm
• Piston size: 87.92 mm
• Clearance: 0.08 mm
• Base gasket thickness: 0.3 mm
• Base gasket thickness: 0.5 mm
• Base gasket thickness: 0.7 mm
• Forged piston
• Made in Germany

Cross-Reference OEM Part Numbers

• Head gasket: OE# 6942
• Base gasket: OE# 6793
• Base gasket: OE# 6794
• Base gasket: OE# 6795
• Exhaust gasket: OE# 298
• Wrist pin bearing: OE# 424

Vehicle Fitments

• 1981 Maico 490
• 1982 Maico 490
