TOP END PISTON KIT 81-81 YAMAHA IT 250 71mm 1.0mm OVER VINTCO KTY44-1.0
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 71mm 1.0mm OVER VINTCO KTY44-1.0
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 71mm 1.0mm OVER VINTCO KTY44-1.0
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 71mm 1.0mm OVER VINTCO KTY44-1.0
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 71mm 1.0mm OVER VINTCO KTY44-1.0
TOP END PISTON KIT 81-81 YAMAHA IT 250 71mm 1.0mm OVER VINTCO KTY44-1.0

TOP END PISTON KIT 81-81 YAMAHA IT 250 71mm 1.0mm OVER VINTCO KTY44-1.0

£246.51 GBP
Taxes included. Shipping calculated at checkout.

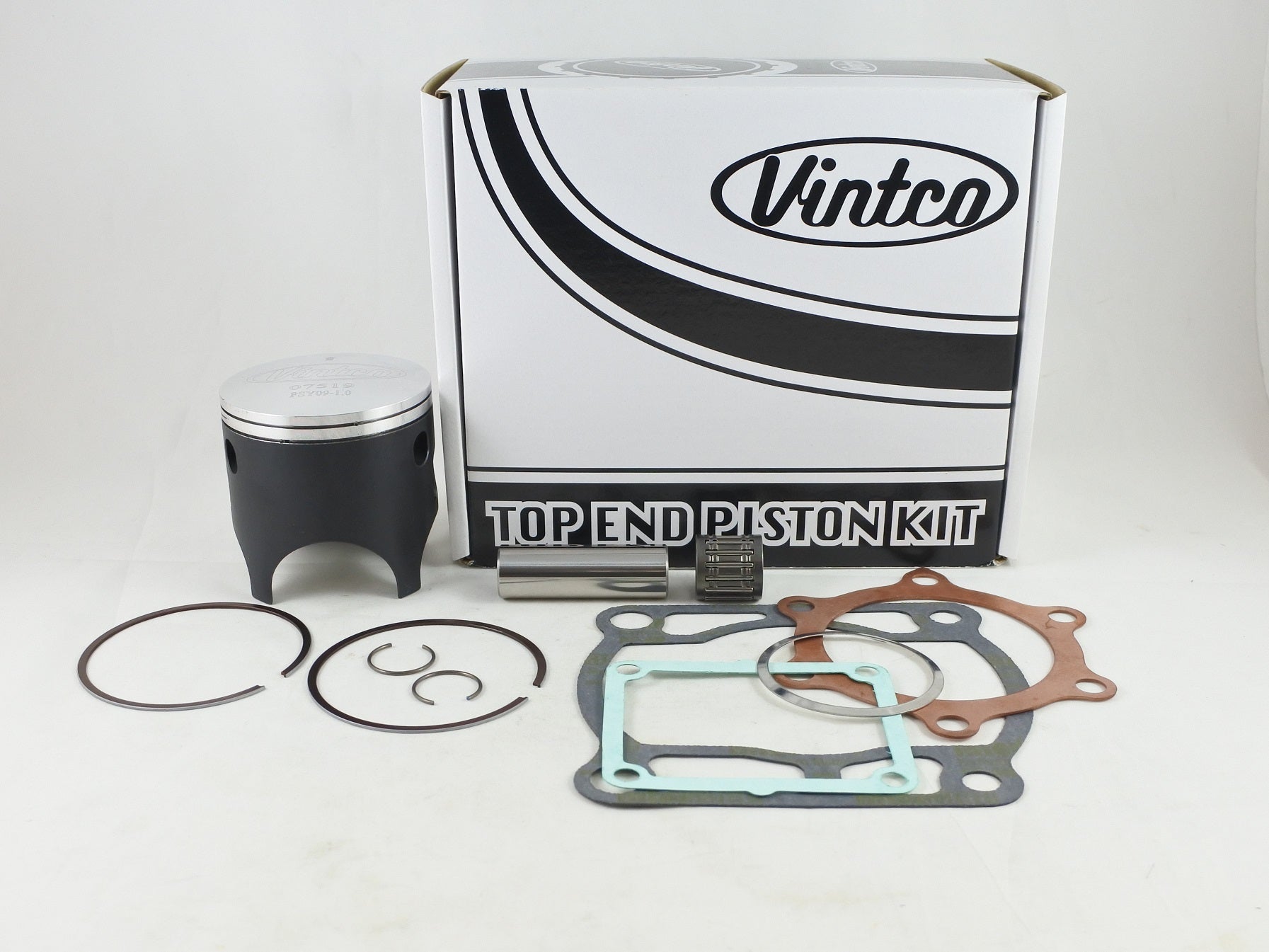

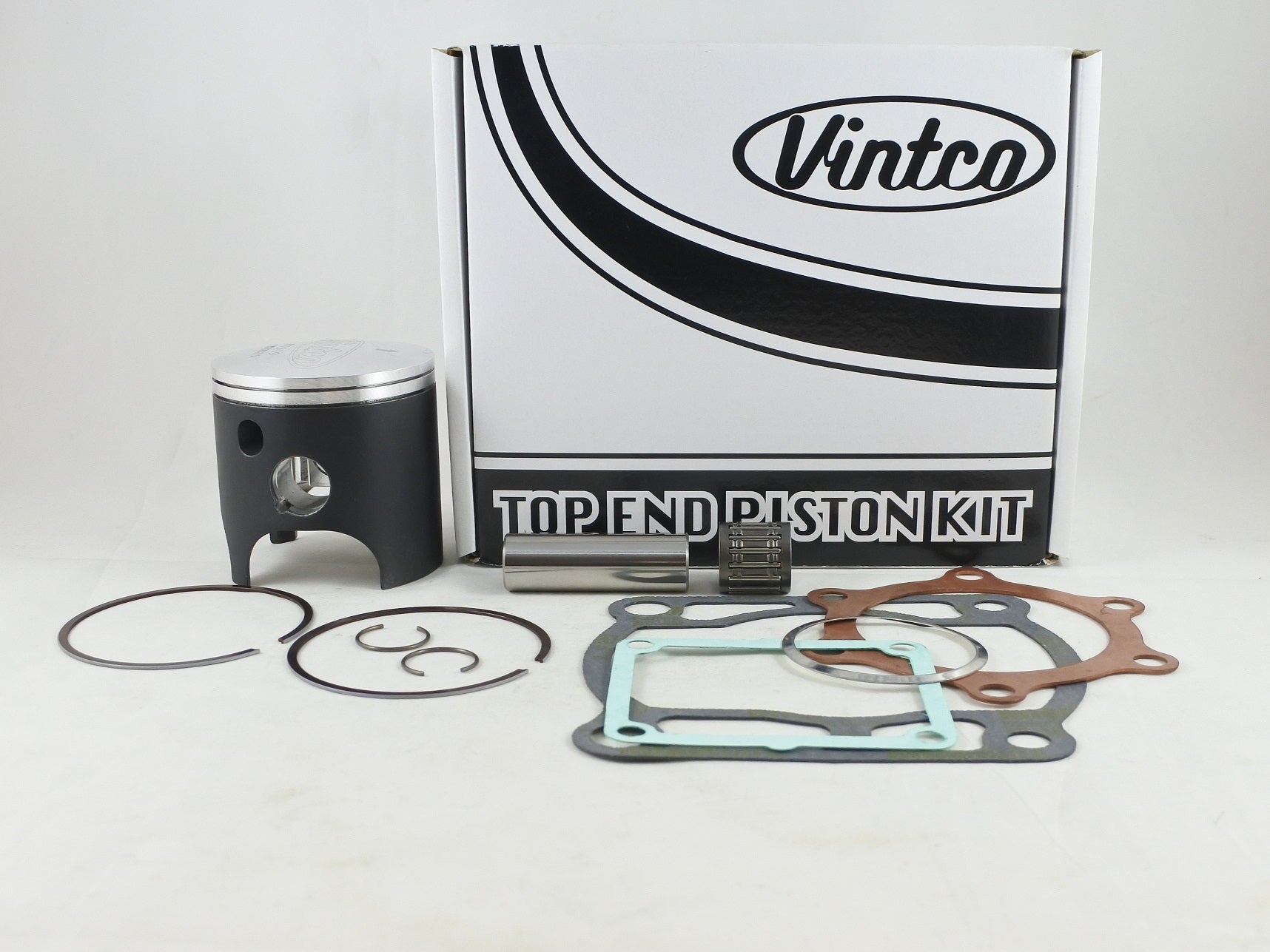

This top end piston kit is designed for the 1981 Yamaha IT250 and includes a forged piston, matching gaskets and a wrist pin bearing for top end service. The piston is made in Germany and features an MOS2 coating for running-in. Kit pricing is set at 10% less than purchasing the included items individually.

Features

  • Top end piston kit for Yamaha IT250 applications
  • Includes forged piston
  • Piston made in Germany
  • MOS2 coated for running-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY44-1.0
  • Piston size: 71 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 70.94 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 1W3-11181-00-00
  • Cylinder base gasket: 3R4-11351-01-00
  • Intake gasket: 80L-13621-01-00
  • Exhaust pipe gasket: 3R4-14613-00-00

Vehicle Fitments

  • 1981 Yamaha IT250
